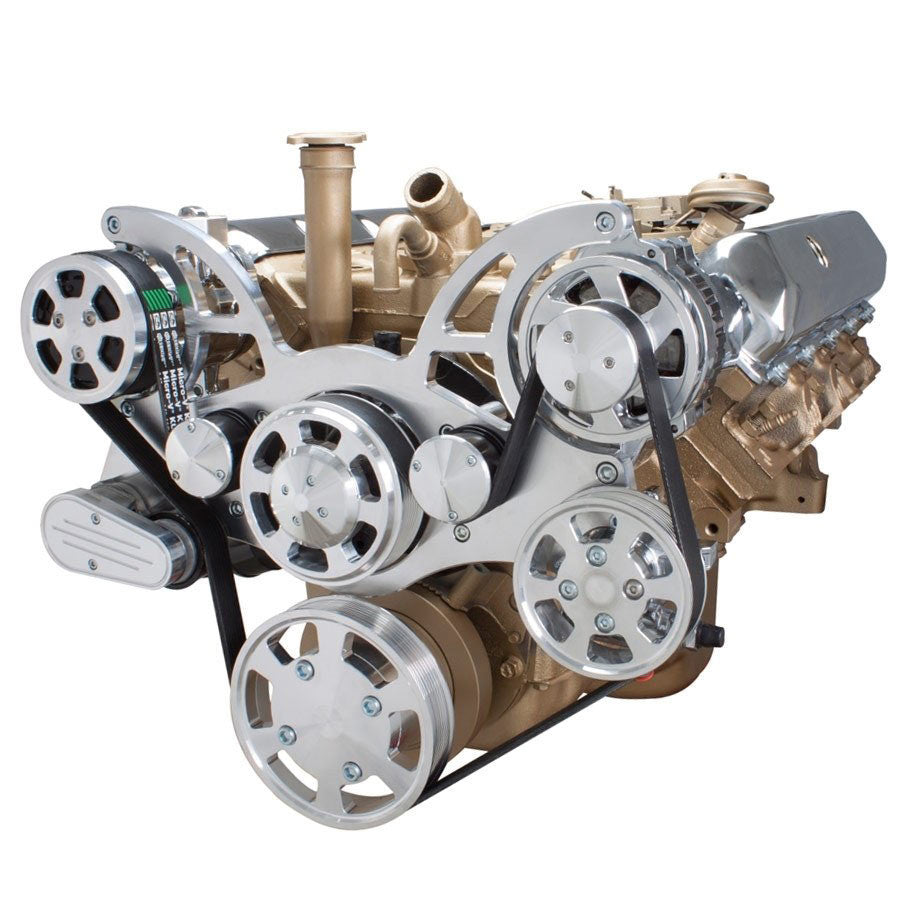

The CVF Racing Wraptor is a complete 8-rib front drive system for Oldsmobile 350 Rocket, 403 and 455 V8 engines. In its full configuration it runs a 160 amp CS130 alternator, a power steering pump and a peanut-style A/C compressor from a one-piece billet aluminum bracket, with a spring-loaded tensioner to hold belt tension through hard acceleration and deceleration. The alternator sits on the driver side above the power steering pump.
This listing is offered in polished aluminum or C3 Ceramic Clear Coat. Each finish is available in four accessory configurations: AC, Power Steering & Alternator; Power Steering & Alternator; AC & Alternator; or Alternator Only.
Specifications:
- Belt type: 8-rib serpentine
- Mounting position: Mid-mount
- Alternator location: Driver side, above the power steering pump
- Finish: Polished aluminum or C3 Ceramic Clear Coat (selected when ordering)
- Water pump rotation: Standard
- Bracket: One-piece billet aluminum
- Engines: Oldsmobile 350 Rocket, 403 and 455
- Alternator: 160 amp CS130 (300 amp optional)
- A/C compressor: Peanut-style (7B10) with 8-rib clutch
- Part number: 455-WRAPTOR
Included in Every Configuration:
- 8-rib serpentine belt
- Water pump pulley and cover
- Crankshaft pulley and crank pulley spacer
- Alternator pulley and cover
- One-piece billet aluminum bracket
- Universal alternator fan
- Spring-loaded tensioner
- Idler pulleys with covers
- 160 amp chrome-plated CS130 alternator
Included by Configuration:
- Chrome-plated power steering pump of the type selected when ordering, with power steering pulley (power steering configurations)
- Power steering reservoir, remote-mount with bracket or attached, per the pump option selected (power steering configurations)
- Chrome-plated peanut-style A/C compressor with compressor clutch cover (A/C configurations)
Application Notes:
- Fits Oldsmobile 350 Rocket, 403 and 455 engines.
- The water pump is not included. The system uses a factory 6.0 in. (long) or 5.6 in. tall water pump; the water pump height is selected when ordering.
- Works with a mechanical or electric fuel pump.
- Works with a mechanical or electric cooling fan; CVF highly recommends an electric fan.
- Alternator output (160 amp or 300 amp), power steering pump type and water pump height are selected separately when ordering.
- When ordering without some accessories, the existing parts must match these requirements: Alternator: GM CS130-style with 6 to 12 o'clock mounting and 6.6 in. bolt spacing; Power steering pump: GM Type II; A/C compressor: peanut-style (7B10) with an 8-rib clutch; Water pump: 5.6 in. tall, clockwise rotation, 5/8 in. pilot.
- The power steering lines that run from the pump to the reservoir are not included.
- A Hydroboost upgrade is available through the power steering pump selection.
- CVF offers power steering line kits, fabricated attached reservoir upgrades and billet oil fill tubes as separate add-ons; they are not part of this listing.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included in every configuration of the CVF Racing 455-WRAPTOR?
Every configuration includes these parts: 8-rib serpentine belt; water pump pulley and cover; crankshaft pulley and crank pulley spacer; alternator pulley and cover; one-piece billet aluminum bracket; universal alternator fan; spring-loaded tensioner; idler pulleys with covers; and 160 amp chrome-plated CS130 alternator.
Are the power steering lines included with the Wraptor system?
No. The lines from the power steering pump to the reservoir are not included and are sold separately.
Can the Wraptor be ordered without A/C or power steering?
Yes. It is offered in AC, Power Steering & Alternator; Power Steering & Alternator; AC & Alternator; and Alternator Only configurations, and components that are not used are left out.
Is a water pump included with the Oldsmobile Wraptor system?
No. The water pump is not included. The system works with a factory 5.6 in. or 6.0 in. tall water pump, and the pump height is selected when ordering.
Which alternator comes with the Oldsmobile Wraptor?
A 160 amp CS130 alternator is standard, and a 300 amp alternator is available as an upgrade when ordering.
