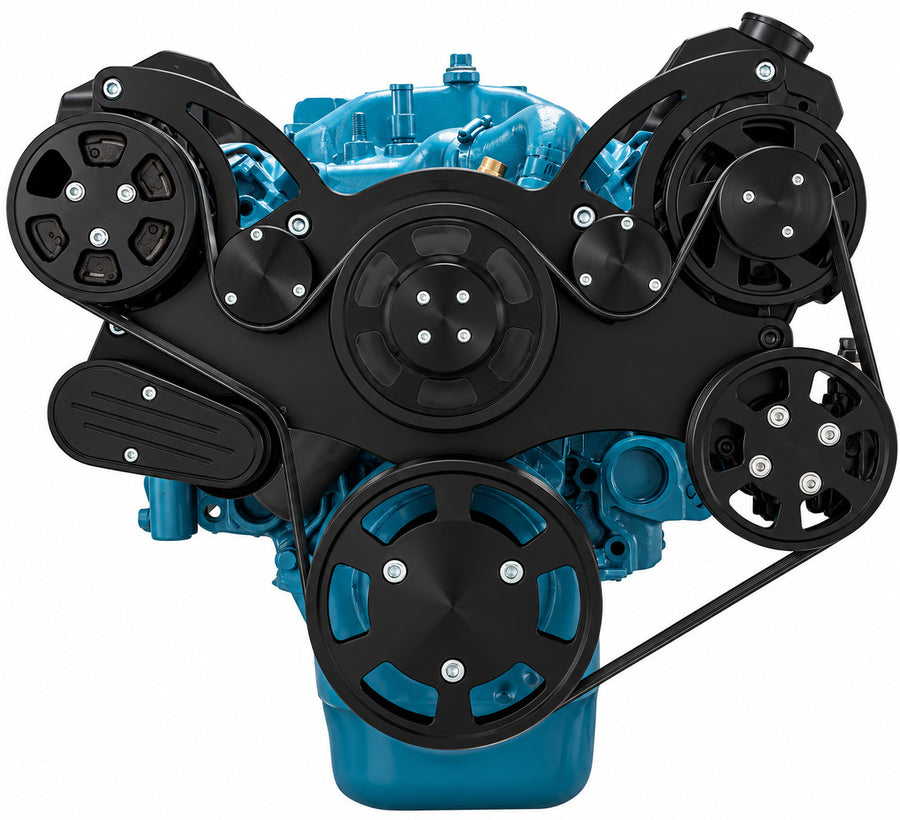

The CVF Racing WRAPTOR is an all inclusive 8-rib serpentine system for Mopar small block 273, 318, 340 and 360 engines (LA style). It arrives with the water pump, alternator, billet bracket, pulleys, tensioner and belt, and adds A/C and power steering components depending on the configuration chosen. A spring loaded tensioner holds belt tension through hard acceleration and deceleration and takes up belt stretch. CVF states its 8-rib pulleys give more grip, less belt stretch and less slippage than common 6-rib designs.
The layout places the alternator on the driver side above the power steering pump. Four configurations are offered: A/C, power steering and alternator; power steering and alternator; A/C and alternator; or alternator only. Alternator output (160 amp or 300 amp) and the power steering setup (none, GM pump with remote or attached reservoir, or Hydroboost with attached or remote reservoir) are also chosen when ordering. Finish is Stealth Black.
Specifications:
- System type: All inclusive serpentine system, CVF WRAPTOR
- Belt type: 8-rib serpentine
- Tensioner: Spring loaded, with cover
- Alternator position: Driver side, above power steering pump
- Configurations: A/C, PS and alternator; PS and alternator; A/C and alternator; alternator only
- Water pump: High flow aluminum, black, included
- Alternator: 1-wire CS130 style
- Alternator output options: 160 amp or 300 amp
- Power steering pump: GM Type II
- Power steering options: None, GM pump with remote reservoir, GM pump with attached reservoir, Hydroboost with attached reservoir, Hydroboost with remote reservoir
- A/C compressor: Peanut style (7B10) with 8-rib clutch
- Water pump rotation: Standard (clockwise)
- Engine: Mopar small block 273, 318, 340 and 360, LA style
- Finish: Stealth Black
- Part number: B-360-WRAPTOR
Included in Every Configuration:
- High flow aluminum water pump (black)
- Black 1-wire CS130 alternator (160 amp or 300 amp, per selection)
- Premium 8-rib belt
- Water pump pulley and cover
- Crankshaft pulley
- Crankshaft pulley spacer
- Alternator pulley and cover
- One piece billet aluminum bracket
- Universal alternator fan
- Spring loaded tensioner with cover
- Idler pulley(s) with cover
Included by Configuration:
- A/C configurations: Plated A/C compressor and A/C compressor clutch cover
- Power steering configurations: Plated aluminum GM Type II power steering pump, power steering pulley and reservoir (CVF lists a remote mount reservoir with bracket; reservoir and pump style follow the power steering choice)
Not Included: Power steering lines from the pump to the reservoir are not included.
Application Notes:
- Works with either a mechanical or electric fuel pump.
- Works with either a mechanical or electric engine fan.
- Requires the lower radiator hose on the passenger side.
- Fits LA style small blocks only; it will not work with 318 or 360 Magnum engines.
- Power steering lines from the pump to the reservoir are not included. CVF power steering line kits, attached reservoir styles and a billet thermostat housing are sold separately.
- Replacement accessory requirements per CVF: GM CS130 style alternator with 6 to 12 o'clock mounting and 6.6" bolt spacing; GM Type II power steering pump; Peanut style (7B10) compressor with 8-rib clutch; water pump 5.7" tall, clockwise rotation, 5/8" pilot.
- CVF lists US design patent D846,000 S for the WRAPTOR system.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does the WRAPTOR system fit?
It fits Mopar small block 273, 318, 340 and 360 LA style engines with the lower radiator hose on the passenger side. It does not fit Magnum engines.
What comes with every configuration?
Every configuration includes the high flow aluminum water pump, 1-wire CS130 alternator, 8-rib belt, billet bracket, water pump, crank and alternator pulleys, tensioner, idler pulley(s) and alternator fan.
Which configurations are available?
CVF offers A/C, power steering and alternator; power steering and alternator; A/C and alternator; and alternator only.
Are power steering lines included?
No. Lines from the power steering pump to the reservoir are not included, and CVF sells line kits separately.
What finish options are there?
This part number is finished in Stealth Black.
