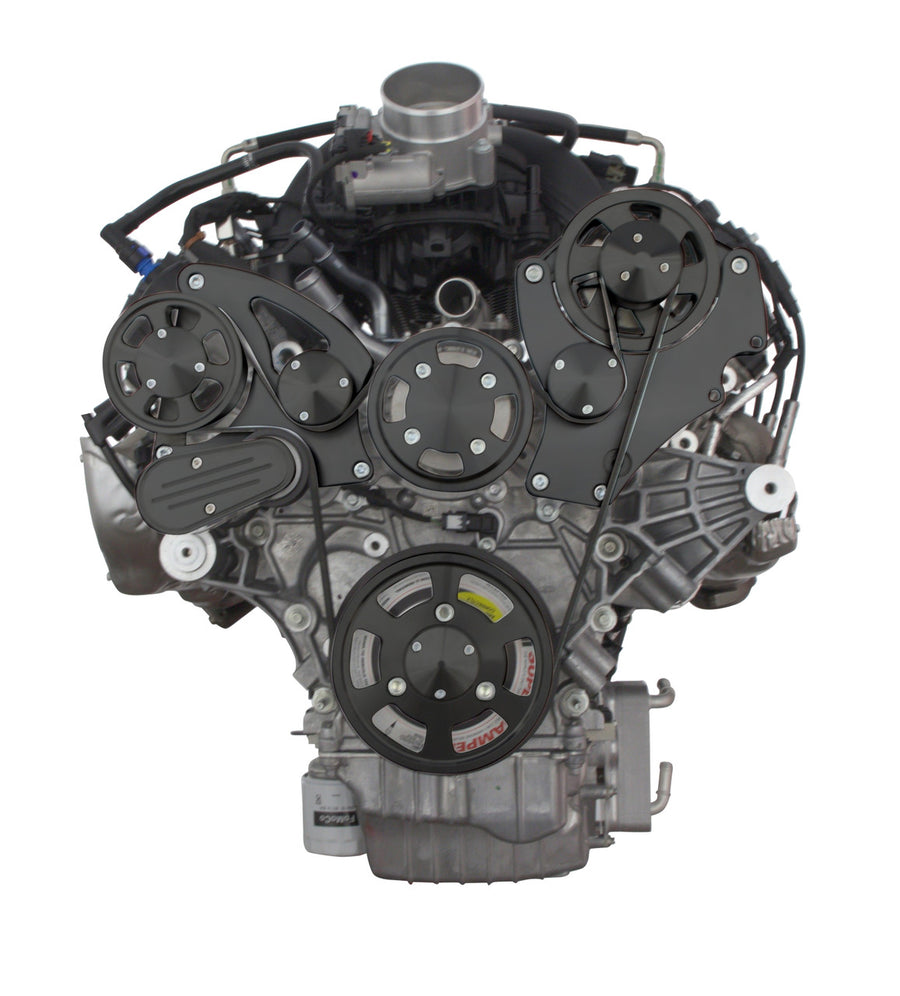

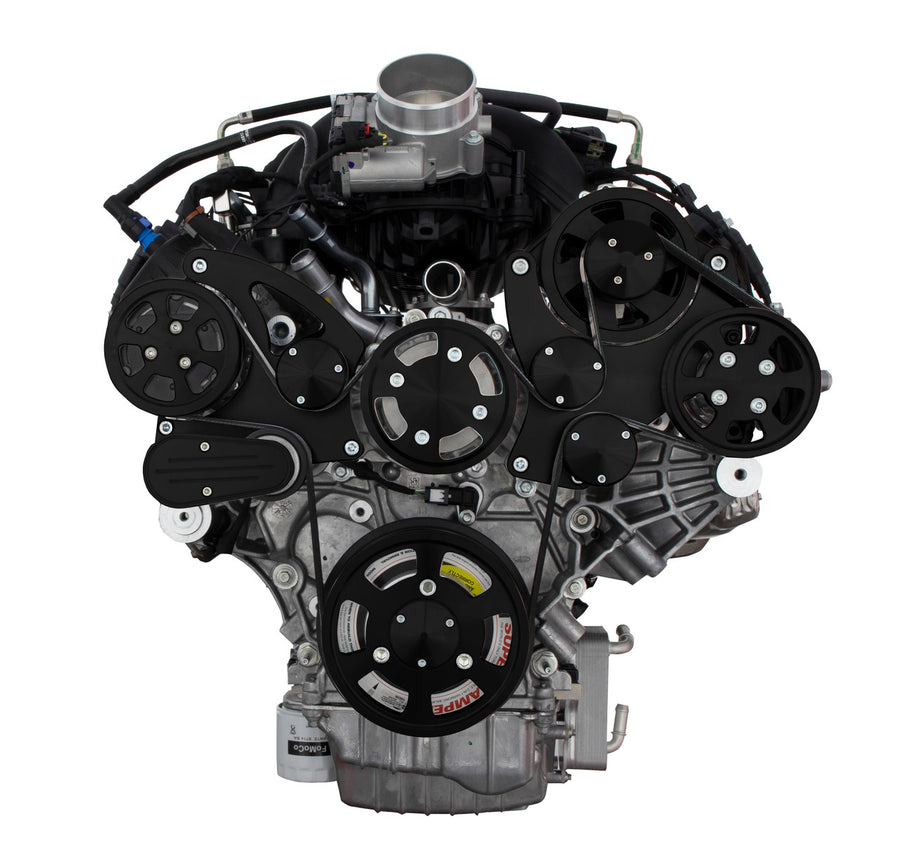

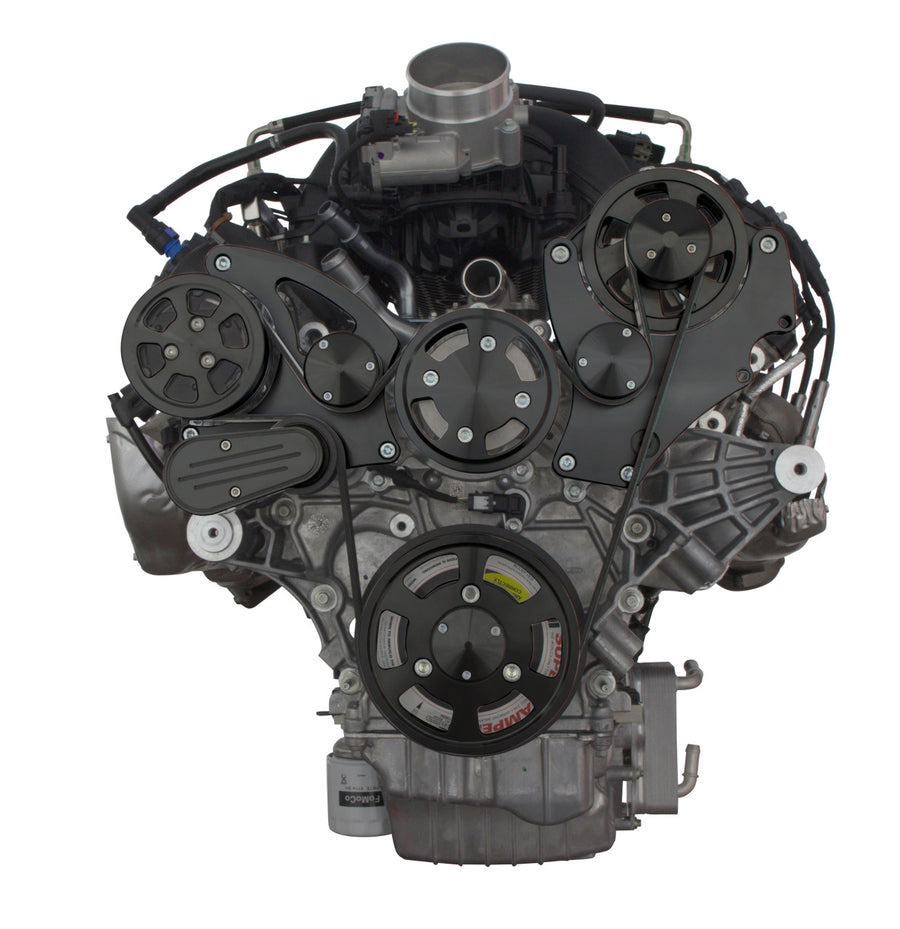

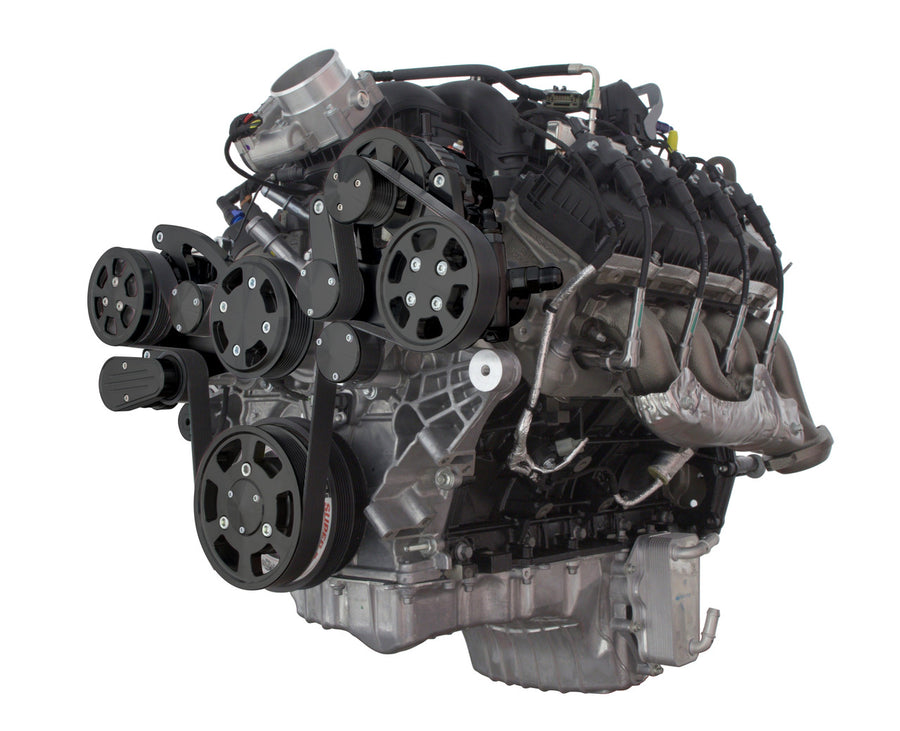

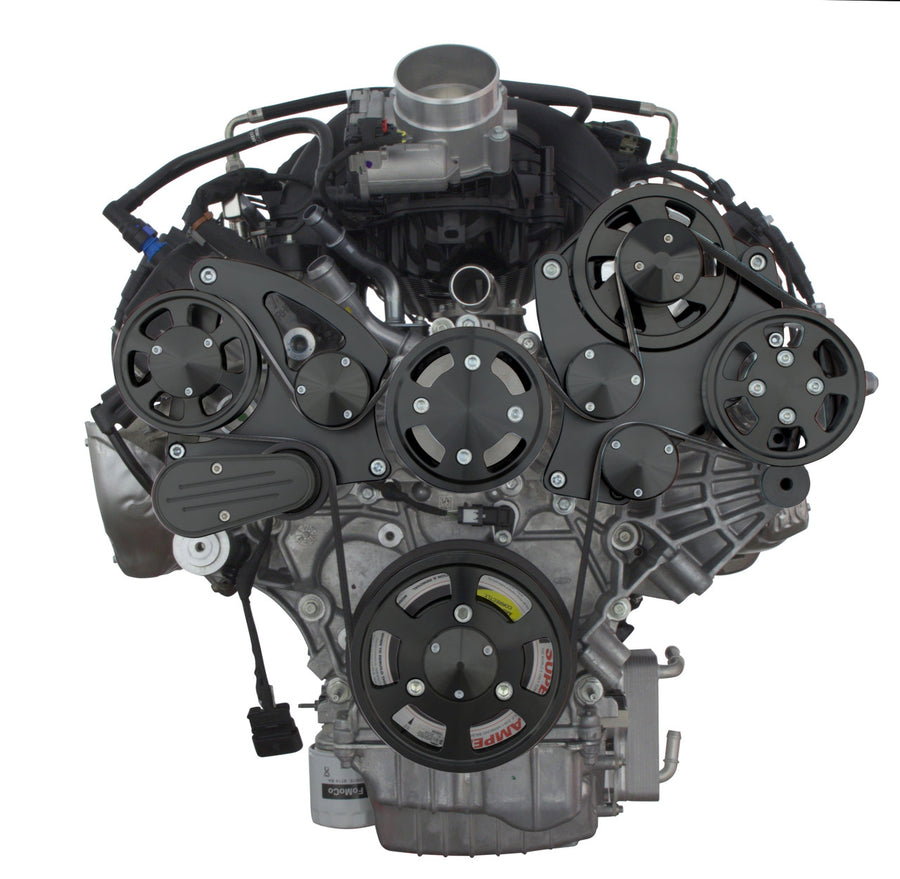

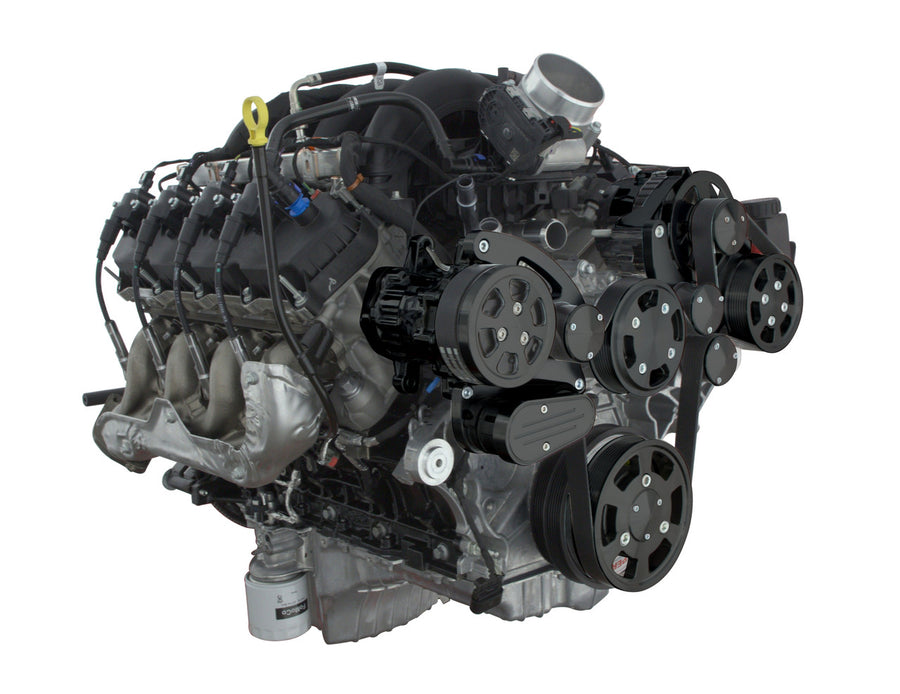

This CVF Racing Wraptor in stealth black is an all inclusive 8 rib serpentine system for the Ford Godzilla 7.3L V8. Every configuration includes a 160 amp 1-wire CS130 alternator, a two piece bracket, the belt, pulleys, spring loaded tensioner and idler, with A/C and power steering configurations adding a black A/C compressor and a black GM Type II pump with remote reservoir.
CVF states its Wraptor systems are CNC machined in the USA from 6061-T6 billet aluminum, use CVF branded accessories and carry a lifetime warranty. The kit requires an ATI or SFI balancer, which is sold separately.
Specifications:
- Engine: Ford Godzilla 7.3L
- Belt type: 8 rib serpentine
- Mounting position: Mid mount
- Material: 6061-T6 billet aluminum, CNC machined in the USA (per CVF)
- Alternator: 1-wire CS130
- A/C compressor: Black (A/C configurations)
- Power steering pump: Black GM Type II with remote reservoir (power steering configurations)
- Balancer: ATI or SFI balancer required (ATI 918073 or Fluidampr 750201 selectable), not included
- Water pump: Ford, mechanical, standard rotation (not included)
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Finish: Stealth Black
- Part number: B-FGZ-WRAPTOR
Included in Every Configuration:
- 160 amp black plated 1-wire CS130 alternator
- Premium 8 rib belt
- Water pump pulley and decorative cap
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- Two piece bracket
- Universal alternator fan
- Spring loaded tensioner
- Idler pulley(s) with cover
Included by Configuration:
- Black A/C compressor (A/C configurations)
- A/C compressor cover (A/C configurations)
- Black GM Type II power steering pump (power steering configurations)
- Remote mount power steering reservoir (power steering configurations)
- Power steering pulley (power steering configurations)
Not Included: The balancer, water pump and power steering lines from the pump to the reservoir are not included.
Application Notes:
- Requires an ATI or SFI balancer, sold separately (ATI part number 918073).
- Works with a mechanical or electric fuel pump.
- Works with a mechanical or electric fan; an electric fan is highly recommended.
- Works with Hydroboost.
- Power steering lines from the pump to the reservoir are not included.
- Attached reservoir styles and power steering line kits are offered by CVF separately.
- Additional choices for this kit (balancer, alternator and power steering) are selected separately when ordering.
FAQ
Which engine is this Wraptor made for?
It is made for the Ford Godzilla 7.3L engine.
Is a balancer included?
No. An ATI or SFI balancer is required and sold separately; CVF lists ATI part number 918073 and Fluidampr 750201 as balancer selections.
Does it work with Hydroboost?
Yes. CVF lists the Godzilla Wraptor as Hydroboost compatible.
What alternator is included?
Every configuration includes a 160 amp 1-wire CS130 alternator, with a 300 amp option selectable when ordering.
