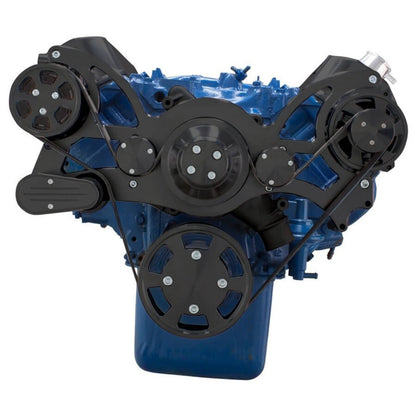

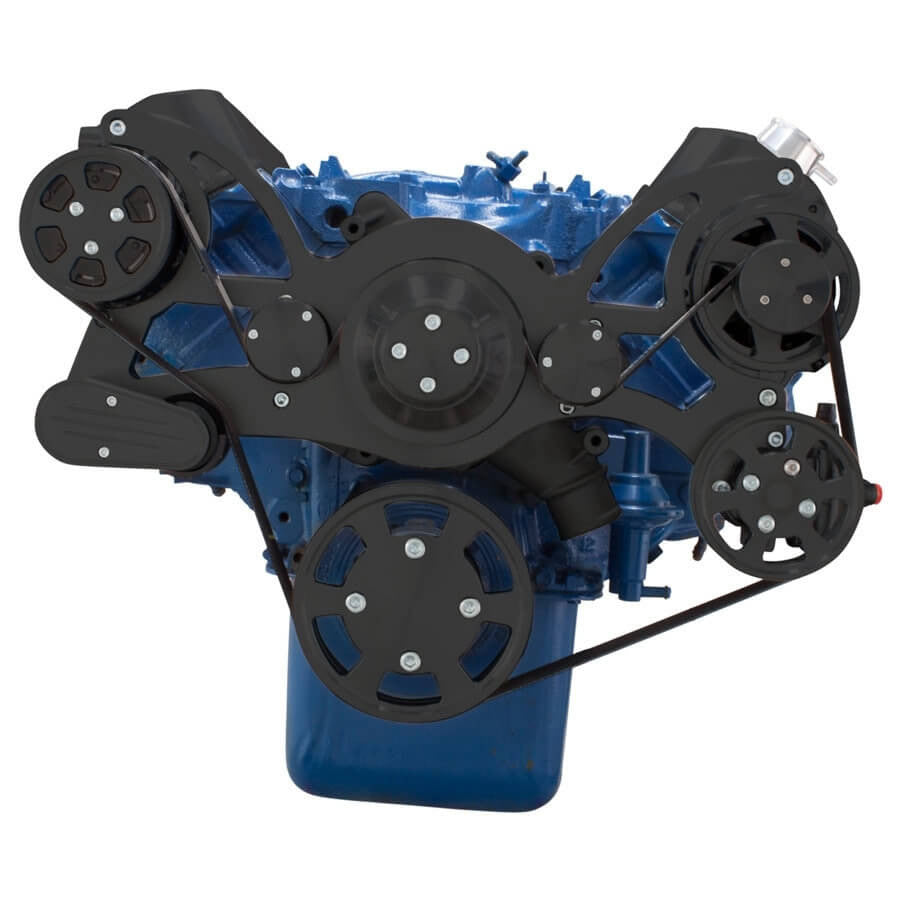

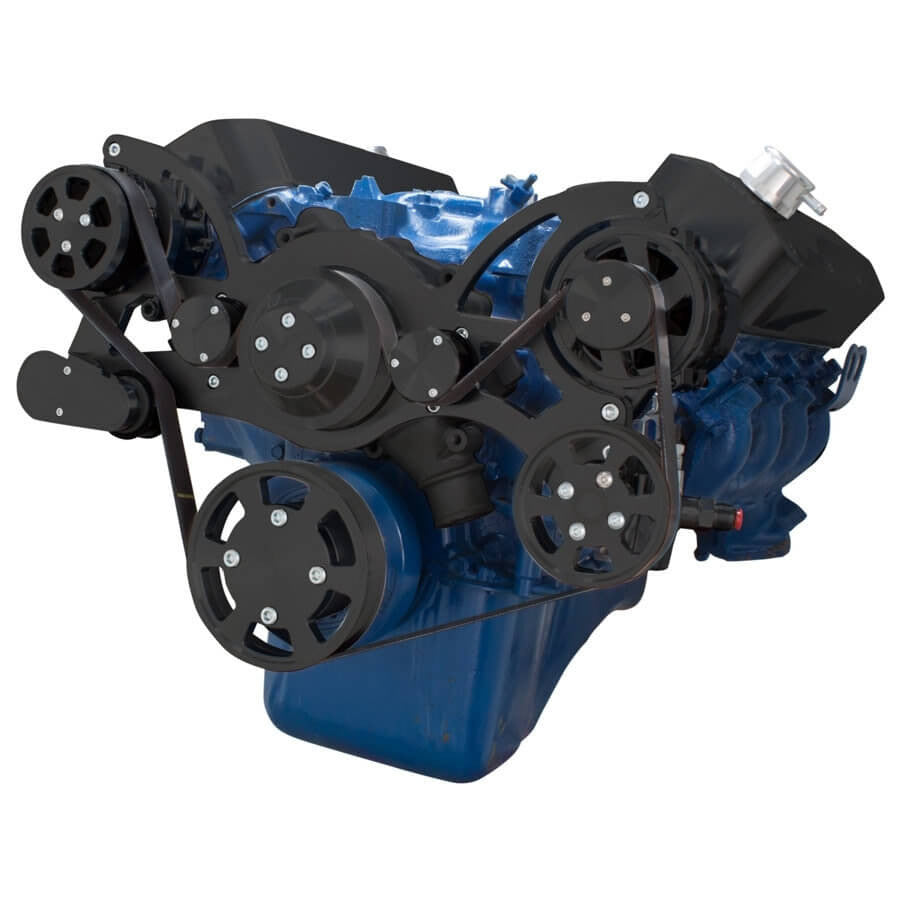

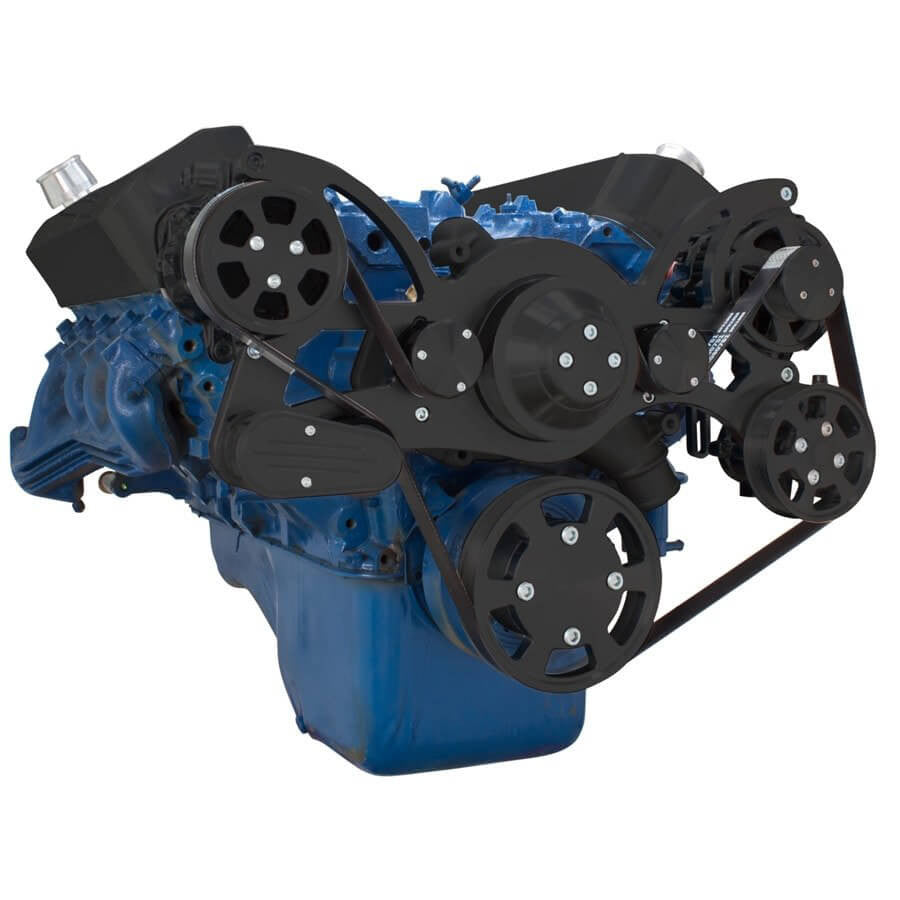

The CVF Racing WRAPTOR is an all inclusive 8-rib serpentine system for Ford 429 and 460 big block engines, finished in Stealth Black. Along with the billet bracket and pulleys, it supplies the water pump and alternator, plus the A/C and power steering components in the configurations that use them, so the drive arrives as a complete package.
A spring loaded tensioner keeps belt tension steady under hard acceleration and deceleration and takes up belt stretch over time. The alternator sits on the driver's side above the power steering pump. CVF states its 8-rib pulleys grip better and resist stretching and slipping compared with typical 6-rib designs.
Specifications:
- System type: All inclusive serpentine system
- Belt type: 8-rib serpentine
- Configurations: AC, Power Steering & Alternator; Power Steering and Alternator; AC and Alternator; Alternator Only
- Finish: Stealth Black
- Alternator: 1-wire CS130 style, 160 amp standard
- Alternator position: Driver's side, above the power steering pump
- Power steering pump: GM Type II
- A/C compressor: Peanut style (7B10) with 8-rib clutch
- Tensioner: Spring loaded
- Water pump: High flow aluminum, clockwise (standard) rotation
- Engine: Ford 429 and 460 big block
- Patent: US D846,000 S
- Part number: B-460-WRAPTOR
Included in Every Configuration:
- High flow aluminum water pump (black)
- 1-wire CS130 style alternator, black powder coated (160 amp standard)
- Premium 8-rib belt
- Water pump pulley and cover
- Crankshaft pulley
- Crankshaft pulley spacer (polished)
- Alternator pulley and cover
- One piece billet aluminum bracket
- Universal alternator fan
- Spring loaded tensioner with cover
- Idler pulley(s) with cover
- All mounting hardware
Included by Configuration:
- A/C configurations: black powder coated A/C compressor and A/C compressor clutch cover
- Power steering configurations: power steering pulley plus pump and reservoir per the power steering choice (CVF's standard listing is a black powder coated aluminum GM Type II pump with a remote mount reservoir and bracket)
Not Included: The damper and the power steering lines from the pump to the reservoir are not included.
Application Notes:
- Works with either a mechanical or electric fuel pump, and with either a mechanical or electric fan.
- Works with a 1970 or newer factory or aftermarket balancer.
- Compatible with hydroboost, per CVF.
- CVF's stated requirements for the accessories: GM CS130 style alternator with 6 to 12 o'clock mounting and 6.6 in bolt spacing; GM Type II power steering pump; peanut style (7B10) compressor with 8-rib clutch; water pump 5.7 in tall, clockwise rotation, 5/8 in pilot, lower radiator hose on the driver's side.
- CVF offers an attached reservoir style upgrade, a power steering line kit, a billet thermostat housing and a 1969 to 1997 cast timing cover as separate add-ons, sold separately.
- Additional choices for this kit (damper, alternator and power steering) are selected separately when ordering.
Additional Application Note: CVF lists this system by engine (Ford 429 and 460 big block) and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does the WRAPTOR system include?
Every configuration includes the water pump, CS130 style alternator, 8-rib belt, pulleys with covers, one piece billet bracket, spring loaded tensioner, idlers, alternator fan and mounting hardware. A/C and power steering parts are added in the configurations that use them.
Which configurations are offered?
CVF offers AC, Power Steering & Alternator; Power Steering and Alternator; AC and Alternator; and Alternator Only.
Is the damper included?
No. The damper is not included, and CVF states the system works with a 1970 or newer factory or aftermarket balancer. The damper bolt pattern is selected when ordering.
Are power steering lines included?
No. The power steering lines from the pump to the reservoir are not included; CVF sells a line kit separately.
Is it offered in other finishes?
Yes. CVF also offers the WRAPTOR in polished or C3 ceramic clear coat (460-WRAPTOR) and Black Diamond (BD-460-WRAPTOR).
