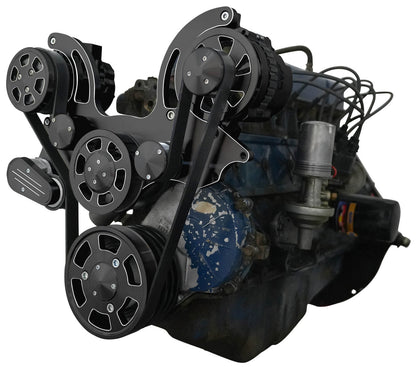

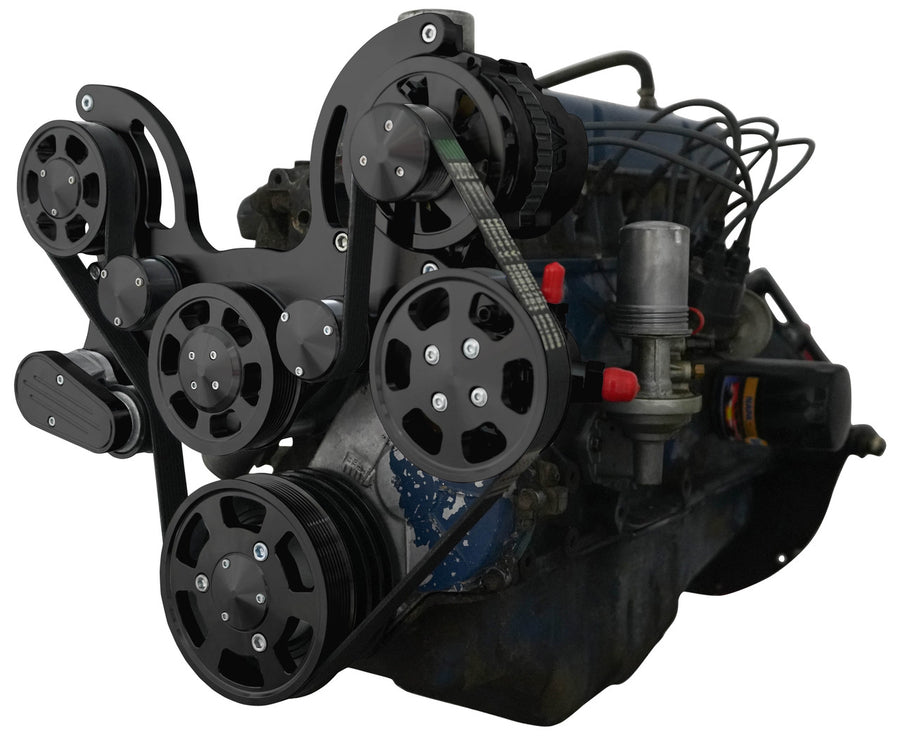

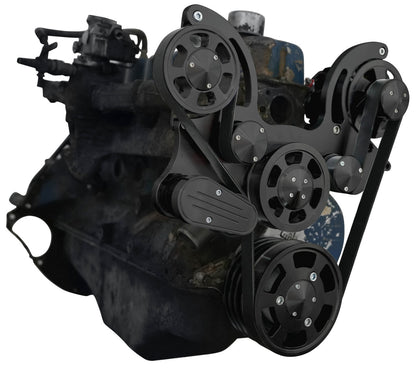

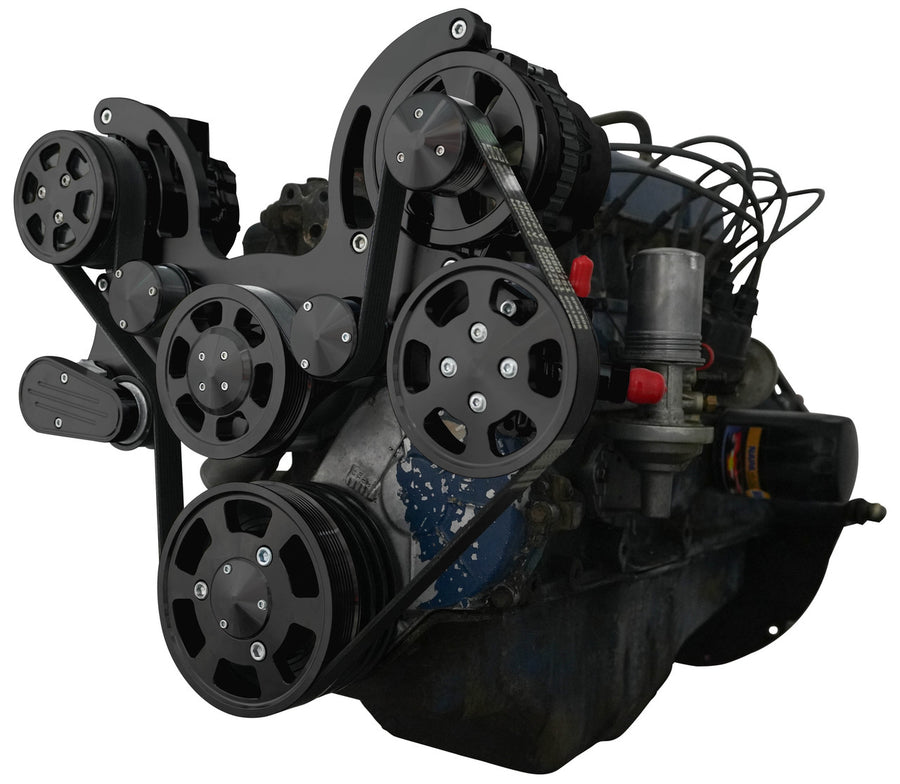

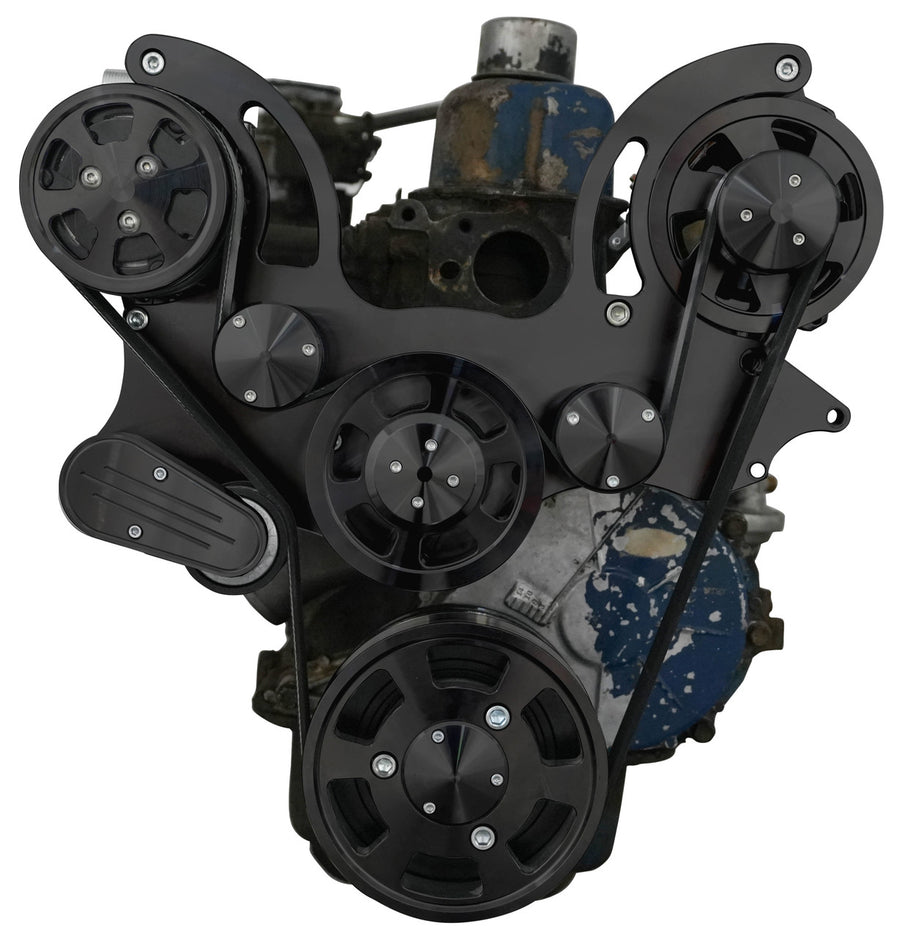

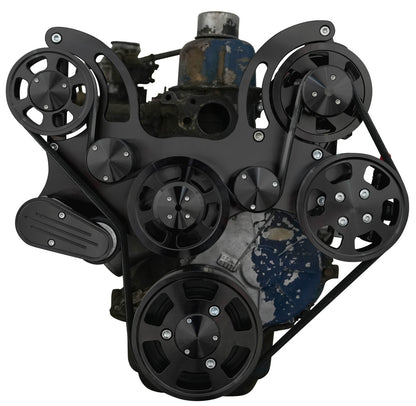

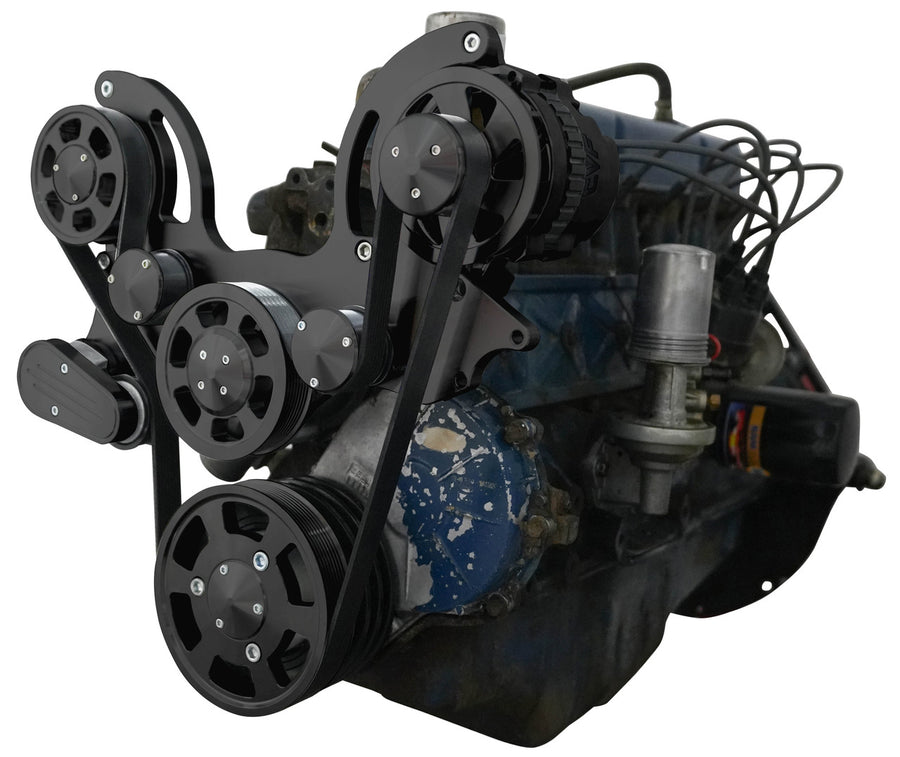

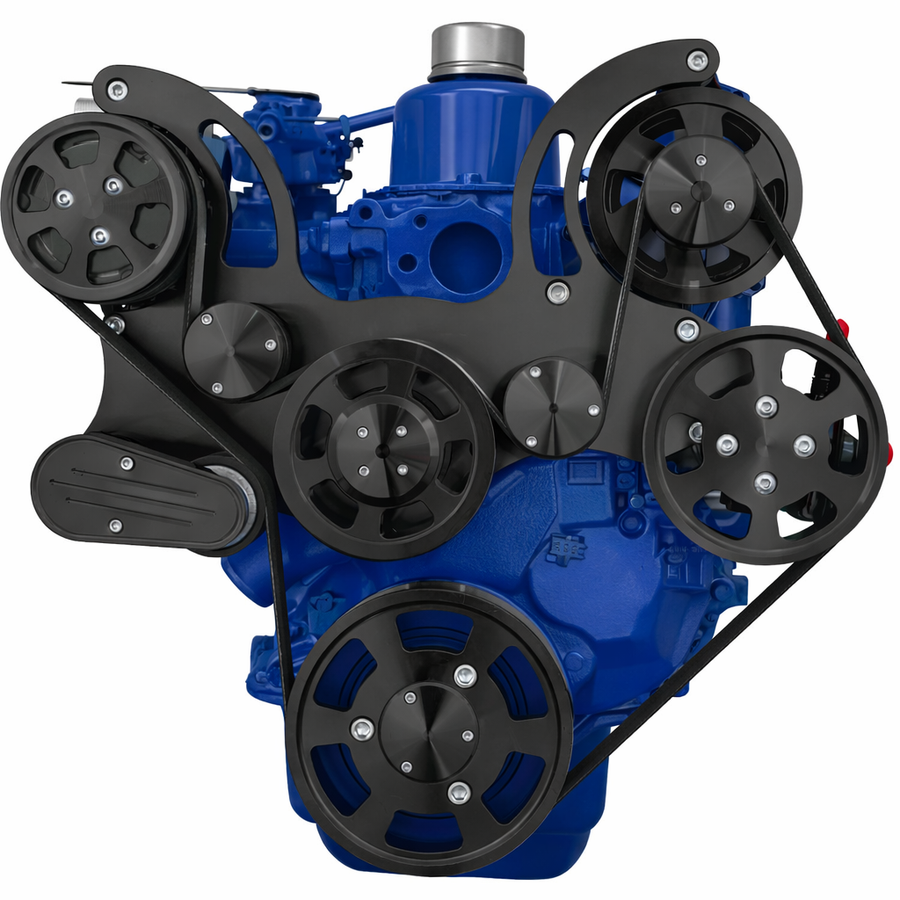

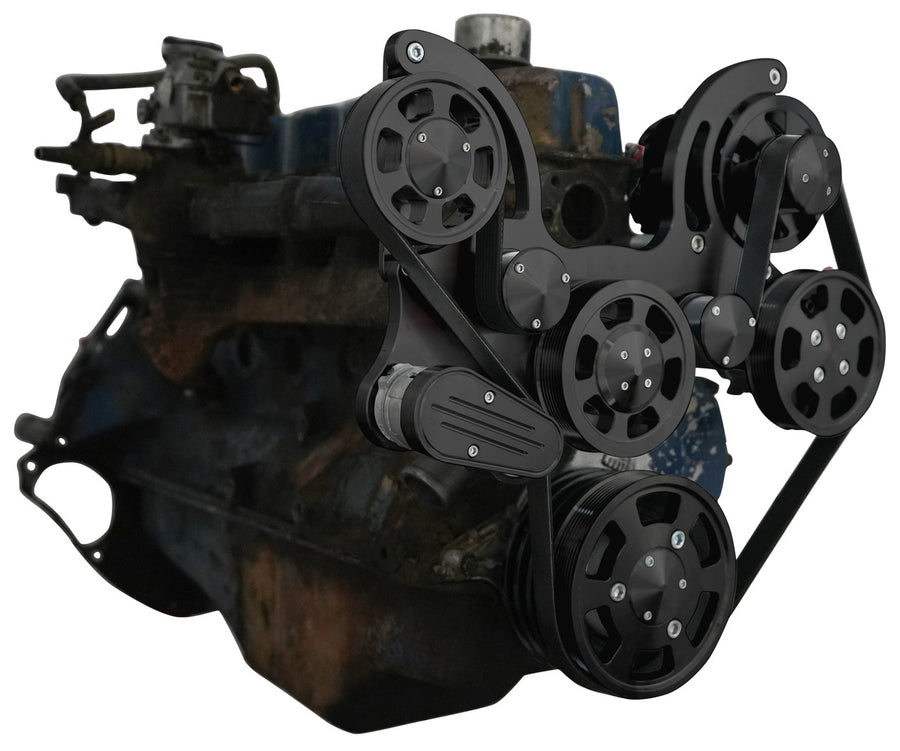

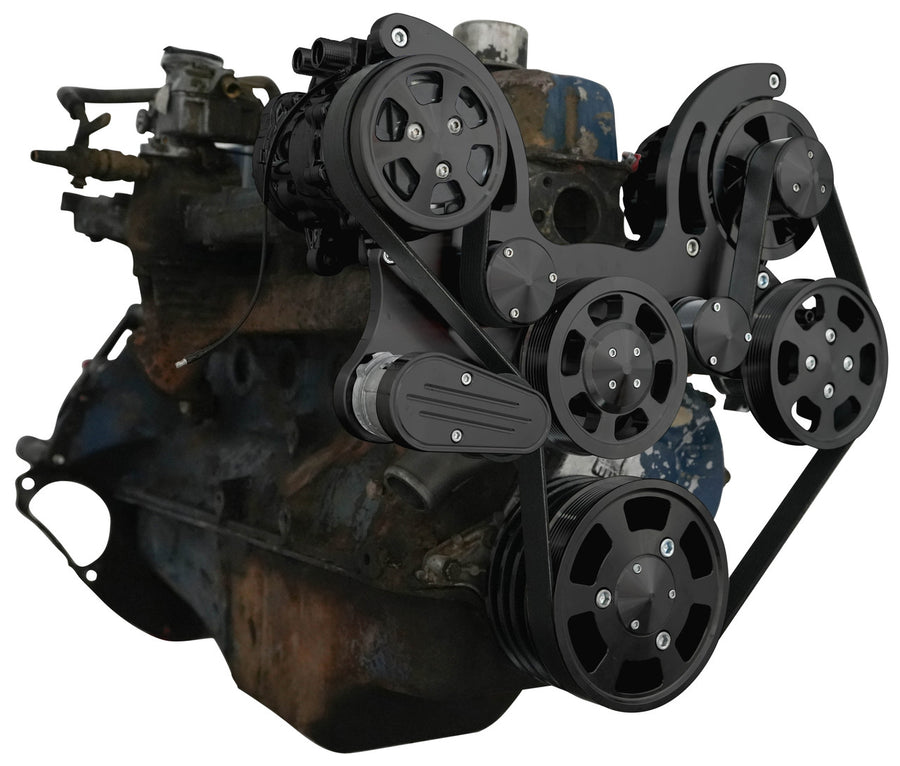

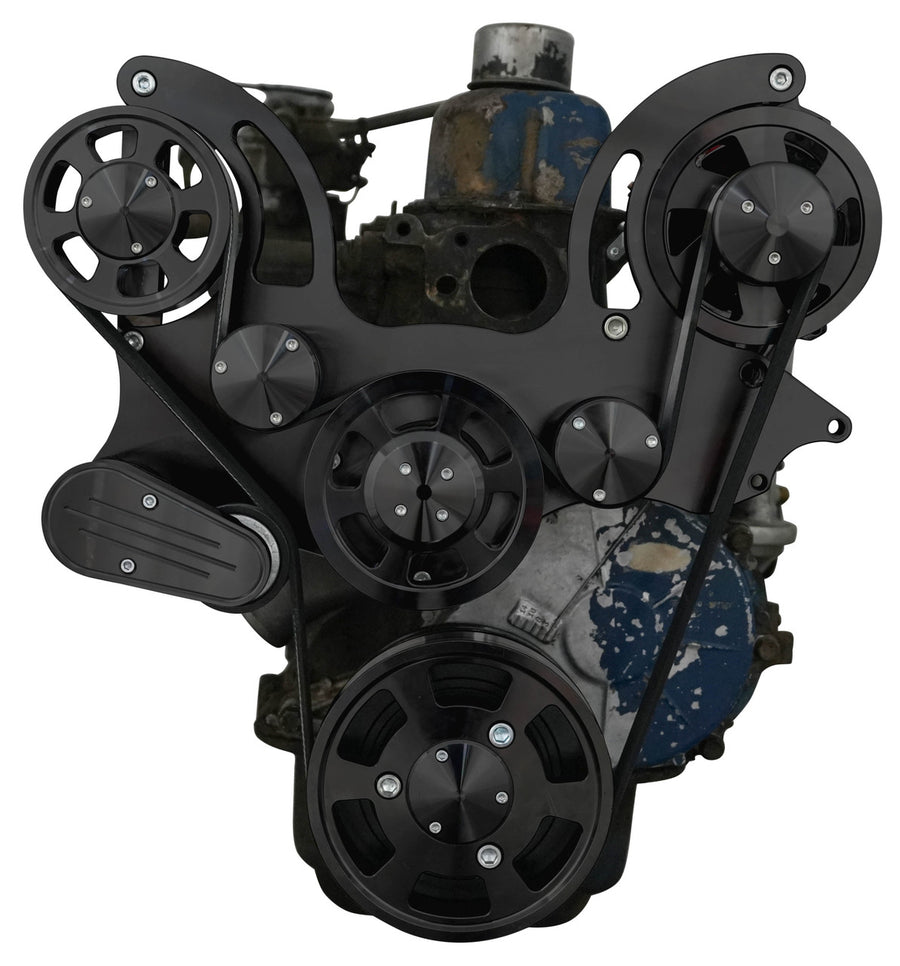

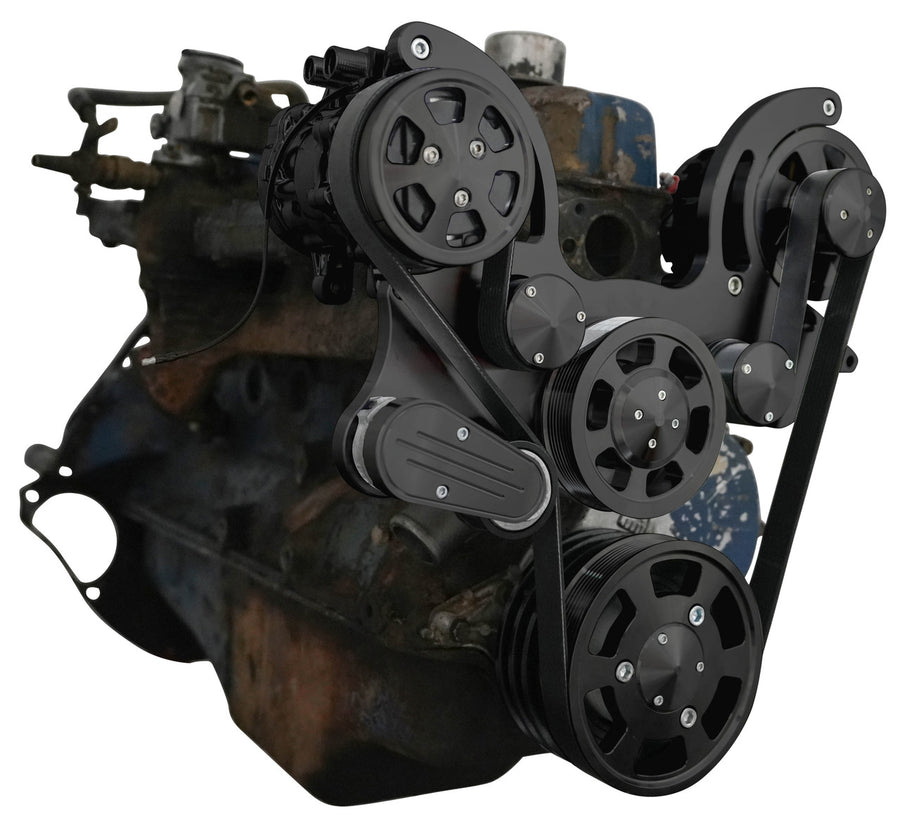

The CVF Racing Wraptor in stealth black is an all inclusive 8 rib serpentine system for the Ford 240 and 300 straight six engines built from 1965 to 1996. Depending on configuration it supplies the alternator, A/C compressor and GM Type II power steering pump along with the bracket, pulleys and hardware, and it places the alternator on the driver's side above the power steering pump.
A spring loaded tensioner keeps belt tension steady under hard acceleration and deceleration and takes up belt stretch, while the 8 rib belt profile gives more grip than a 6 rib layout. The kit is offered in four accessory configurations, with a choice of 160 or 300 amp alternator and several power steering setups.
Specifications:
- Engine: Ford 240 and 300 straight six, 1965 to 1996
- Belt type: 8 rib serpentine
- Mounting position: Mid mount
- Alternator: 1-wire CS130, driver side above the power steering pump
- A/C compressor: black peanut style (A/C configurations)
- Power steering pump: black GM Type II (power steering configurations)
- Water pump type: Mechanical, standard rotation
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Alternator: 160 amp or 300 amp (selected when ordering)
- Power steering choices: none, GM pump with remote reservoir, GM pump with attached reservoir, Hydroboost with attached or remote reservoir, or Saginaw pump with solid pulley
- Finish: Stealth Black
- Part number: B-300-WRAPTOR
Included in Every Configuration:
- 160 amp black CS130 1-wire alternator (300 amp upgrade available)
- Premium 8 rib belt
- Water pump pulley and cap
- Crank pulley
- Hub adapter
- Alternator pulley and cap
- Alternator fan
- One piece mounting bracket
- All mounting hardware
Included by Configuration:
- Black peanut style A/C compressor (A/C configurations)
- A/C clutch cover (A/C configurations)
- 90 degree A/C fitting (A/C configurations)
- Black GM Type II power steering pump (power steering configurations)
- Power steering remote reservoir (power steering configurations)
- Power steering pulley (power steering configurations)
Not Included: Power steering lines, A/C lines and the water pump are not included.
Application Notes:
- Fits Ford 240 and 300 straight six engines from 1965 to 1996.
- Not compatible with the 144, 170, 200 or 250 six cylinder engines used in the Ford Falcon.
- Works with the OEM balancer or Dorman 594-077.
- Compatible with OEM, US Motorworks US4033, Dayco DP1032 or Dayco DP1021 water pumps.
- Compatible with Hydroboost; an upgraded pump is available from CVF.
- Power steering and A/C lines are not included.
- Electric fans are highly recommended. A mechanical fan spacer, power steering line kits, attached reservoir styles and a billet thermostat housing are offered by CVF separately.
FAQ
Which engines does this Wraptor system fit?
It fits Ford 240 and 300 straight six engines from 1965 to 1996. It does not fit the 144, 170, 200 or 250 Falcon sixes.
What is included in every configuration?
Every configuration includes the CS130 1-wire alternator, 8 rib belt, water pump, crank and alternator pulleys with caps, hub adapter, alternator fan, one piece bracket and mounting hardware.
Which balancer does it work with?
CVF lists the OEM balancer or Dorman 594-077.
Which water pumps are compatible?
CVF lists OEM, US Motorworks US4033, Dayco DP1032 or Dayco DP1021 water pumps for this version.
Are the power steering and A/C lines included?
No. Power steering and A/C lines are not included; CVF offers power steering line kits separately.
