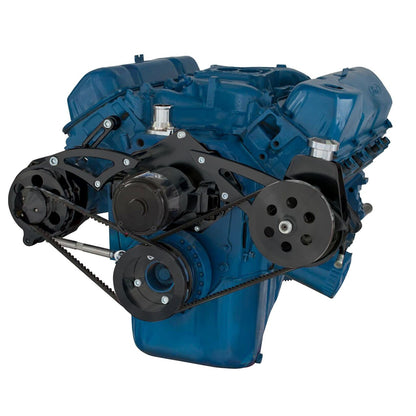

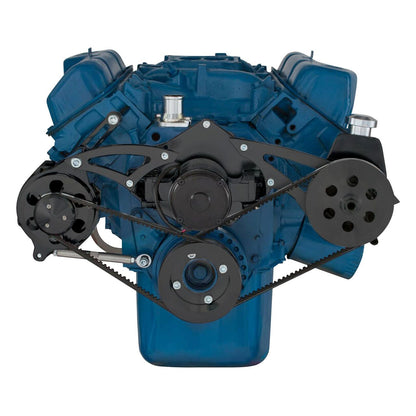

This stealth black CVF Racing V-belt system is for Ford 351 Cleveland, 351M and 400 engines that use an electric water pump but still need an alternator and Saginaw power steering. A 2 groove crank pulley drives both accessories directly.
It is offered with a 5/8 inch keyway or 3/4 inch press fit power steering pulley and for either the 351C or the 351M and 400.
Specifications:
- Engine: Ford 351 Cleveland, 351M and 400
- Engine selection: 351C (Cleveland), or 351M and 400
- Power steering pulley: 5/8 inch keyway shaft or 3/4 inch press fit shaft (selected when ordering)
- Belt type: V-belt
- Water pump type: Electric
- Alternator position: Mid mount, passenger side
- Power steering: Saginaw
- Air conditioning: None
- Finish: Stealth Black
- Part number: B-351C-PS-SYSTEM-EWP
Kit Includes:
- 2 groove crank pulley
- 1 groove alternator pulley
- Alternator bracket
- Power steering bracket
- Power steering pulley (keyway or press fit, per selection)
- ALTFAN universal alternator fan
Not Included: Saginaw power steering pump, alternator and water pump are not included.
Application Notes:
- Requires a Saginaw power steering pump with a mounting stud in the lower right corner on the back of the pump.
- Will not work with factory A/C brackets.
- CVF offers a 35 GPM 351C electric water pump, alternator, power steering pump and billet thermostat housing as separate add-ons.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is this system designed for?
It is designed for Ford 351C, 351M and 400 engines running an electric water pump along with an alternator and Saginaw power steering pump.
What is not included?
The Saginaw power steering pump, alternator and water pump are not included.
Which power steering pump works with it?
A Saginaw pump with a mounting stud in the lower right corner on the back of the pump is required.
Does it work with the factory A/C bracket?
No. CVF states it will not work with factory A/C brackets.
