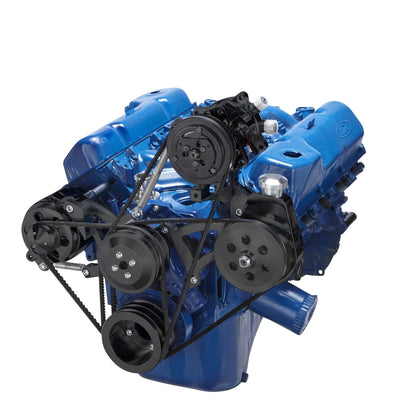

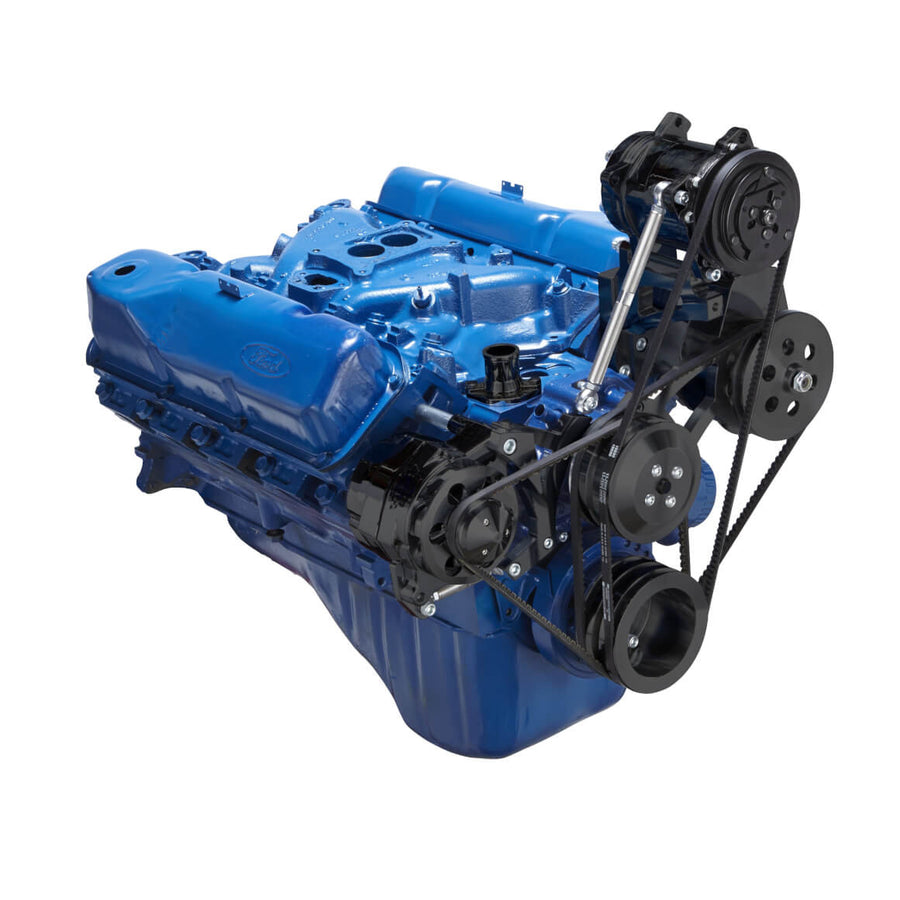

This stealth black CVF Racing V-belt system supplies the pulleys and brackets needed to run an alternator, Saginaw power steering pump and Sanden 508 style A/C compressor on a Ford 351 Cleveland, 351M or 400. The water pump and crank pulleys are 3 groove units to drive all three accessories.
The alternator mounts mid height on the passenger side and the A/C compressor sits high on the driver's side. It is offered for either the 351C or the 351M and 400, with a choice of keyway or press fit power steering pulley.
Specifications:
- Engine: Ford 351 Cleveland, 351M and 400
- Engine selection: 351C (Cleveland), or 351M and 400
- Belt type: V-belt
- Water pump type: Mechanical, 351C style, standard rotation
- Alternator position: Mid mount, passenger side
- A/C compressor: Sanden 508 style, high driver side
- Power steering: Saginaw
- Power steering pulley: 5/8 inch keyway shaft or 3/4 inch press fit shaft (selected when ordering)
- Finish: Stealth Black
- Part number: B-351C-AC-SYSTEM
Kit Includes:
- 3 groove water pump pulley
- 3 groove crank pulley
- 1 groove alternator pulley
- Alternator bracket
- Power steering bracket
- A/C compressor bracket
- Power steering pulley (keyway or press fit, per selection)
- ALTFAN universal alternator fan
Not Included: The Saginaw power steering pump and A/C compressor are not included. An alternator is not listed in the kit contents.
Application Notes:
- Requires a Saginaw power steering pump with a mounting stud in the lower right corner on the back of the pump.
- Alternator, power steering pump, A/C compressor, compressor clutch cover, water pump and billet thermostat housing are offered by CVF as separate add-ons.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What accessories does this V-belt system support?
It supports an alternator, a Saginaw power steering pump and a Sanden 508 style A/C compressor on Ford 351C, 351M and 400 engines.
Which pulleys come in the kit?
The kit includes a 3 groove water pump pulley, 3 groove crank pulley, 1 groove alternator pulley and a power steering pulley in the shaft style selected.
Are the power steering pump and compressor included?
No. The Saginaw pump and A/C compressor are not included, and an alternator is not listed in the kit contents.
What power steering pump is required?
A Saginaw pump with a mounting stud in the lower right corner on the back of the pump is required.
How do I choose the engine option?
Select 351C for a Cleveland, or the 351M or 400 option for those engines.
