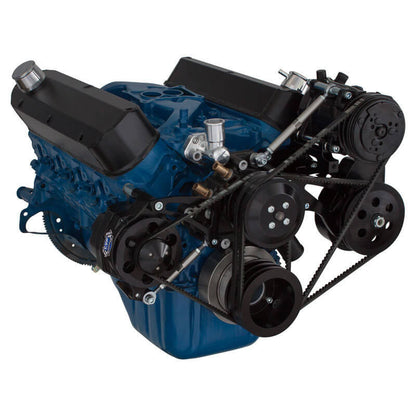

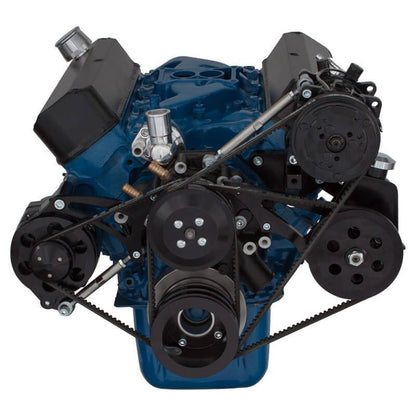

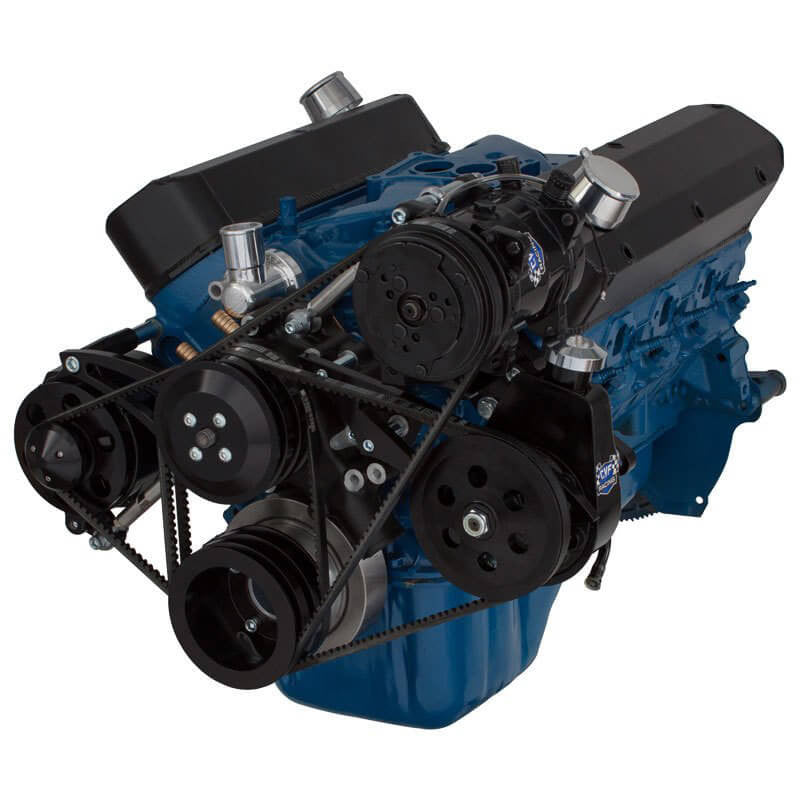

This CVF Racing system adds V-belt drive brackets and pulleys for air conditioning, the alternator and power steering on a Ford 289, 302 or 351W Windsor small block. It is built around a standard clockwise rotation water pump, so the original style pump can stay in place.
The alternator mounts mid height on the passenger side and the A/C compressor mounts high on the driver's side. The system is set up for a Sanden 508 compressor.
Specifications:
- Belt type: V-belt
- Accessories: A/C, alternator and power steering
- Alternator position: Mid mount, passenger side
- A/C compressor position: High, driver's side
- Compressor required: Sanden 508
- Water pump: Mechanical, standard (clockwise) rotation
- Finish: Stealth Black (bright dip black anodized)
- Engine: Ford 289, 302 and 351W small block
- Part number: B-302-AC-SYSTEM
Kit Includes:
- 3 groove water pump pulley
- 1 groove power steering pulley
- 3 groove crankshaft pulley
- Alternator pulley
- Power steering bracket
- A/C bracket
- Alternator bracket
- ALTFAN universal alternator fan
Not Included: The power steering pump and A/C compressor are not included, the alternator is sold separately, and the water pump and damper are supplied by the buyer.
Application Notes:
- CVF calls for a Ford power steering pump with the steel reservoir, not the later pump with a plastic reservoir.
- Requires a Sanden 508 compressor.
- CVF describes the finish as bright dip anodized black.
- CVF offers a water pump, power steering pump, alternator, compressor and billet thermostat housing separately.
- Additional choices for this kit (engine, damper, water pump and power steering pump) are selected separately when ordering.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does the CVF Racing B-302-AC-SYSTEM fit?
It is built for Ford 289, 302 and 351W Windsor small block engines with a standard clockwise rotation water pump.
What is included in this V-belt system?
The kit includes the water pump, crank and alternator pulleys, the alternator, power steering and A/C brackets, the power steering pulley, and an ALTFAN universal alternator fan.
Does the kit include the compressor, pumps or damper?
The power steering pump and A/C compressor are not included, the alternator is sold separately, and the water pump and damper are supplied by the buyer.
Which A/C compressor does it use?
CVF specifies a Sanden 508 compressor, mounted high on the driver's side.
