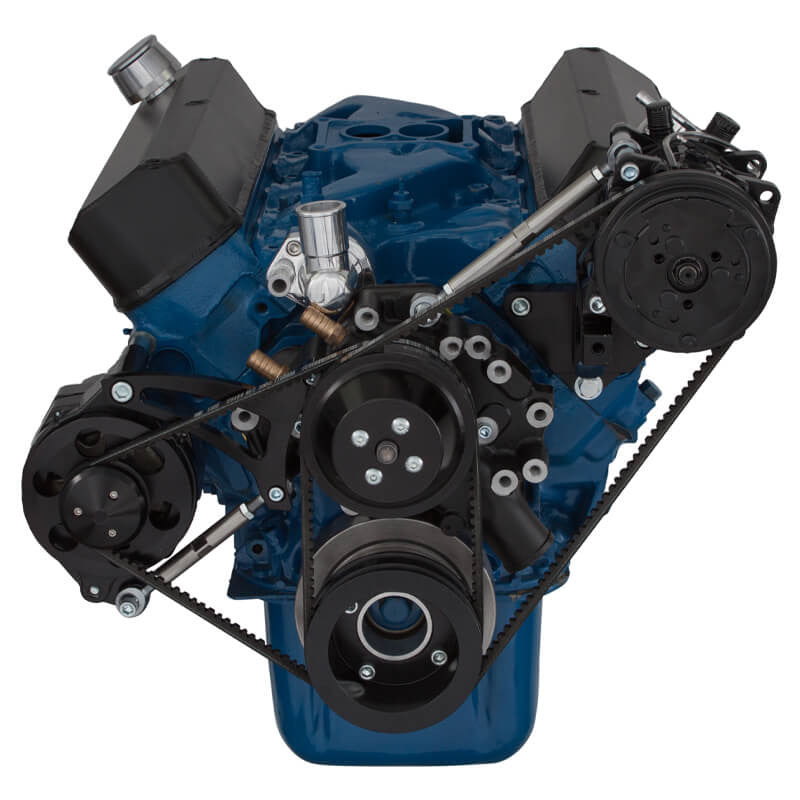

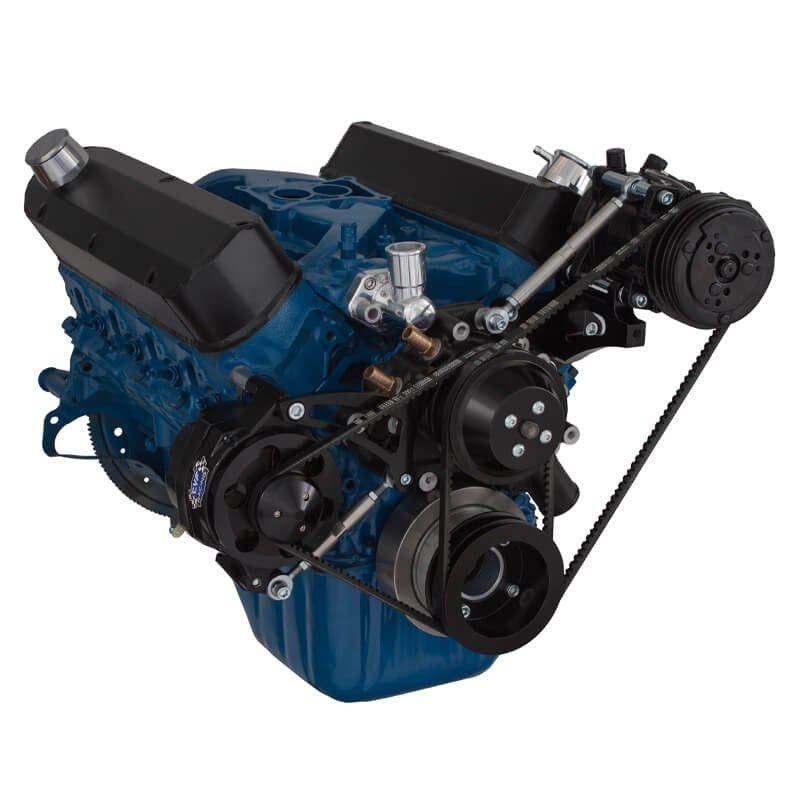

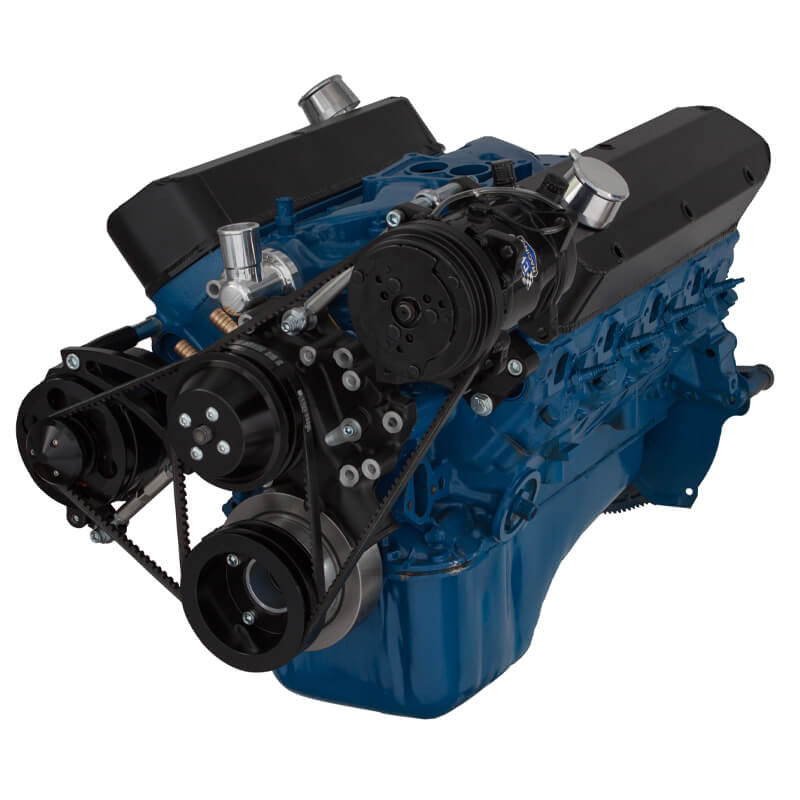

This CVF Racing V-belt system adds air conditioning to a Ford 289, 302 or 351W Windsor small block while keeping the alternator on a matching set of pulleys and brackets. It works with a standard clockwise rotation water pump, so a reverse rotation pump is not needed.
The system is offered for 289 and 302 or 351W engines, for driver's side, passenger side or extra short driver's side water pumps, and for 3 bolt or 4 bolt factory and aftermarket dampers. The alternator sits mid height on the passenger side and the Sanden 508 compressor mounts high on the driver's side.
Specifications:
- Belt type: V-belt
- Accessories: A/C and alternator (no power steering)
- Alternator position: Mid mount, passenger side
- A/C compressor position: High, driver's side
- Compressor required: Sanden 508
- Water pump: Mechanical, standard (clockwise) rotation
- Engine options: 289/302 or 351W
- Water pump options: Driver's side lower hose, passenger side lower hose, or extra short driver's side (1.5" shorter)
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Finish: Stealth Black (bright dip black anodized)
- Part number: B-302-ACO-SYSTEM
Kit Includes:
- 2 groove water pump pulley
- 2 groove crankshaft pulley
- Alternator pulley
- A/C bracket
- Alternator bracket
- ALTFAN universal alternator fan
Not Included: The A/C compressor is not included, the alternator is sold separately, and the water pump and damper are supplied by the buyer.
Application Notes:
- Requires a Sanden 508 compressor.
- CVF offers an alternator, compressor and billet thermostat housing separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does the CVF Racing B-302-ACO-SYSTEM include?
It includes 2 groove water pump and crank pulleys, a 1 groove alternator pulley, the alternator and A/C brackets, and an ALTFAN universal alternator fan.
Do I need a reverse rotation water pump?
No. This system is designed around a standard clockwise rotation water pump.
What is not included?
The A/C compressor is not included, the alternator is sold separately, and the water pump and damper are supplied by the buyer.
Which water pump and damper styles are supported?
It is offered for driver's side, passenger side and extra short driver's side water pumps, and for 3 bolt or 4 bolt factory and aftermarket dampers.
