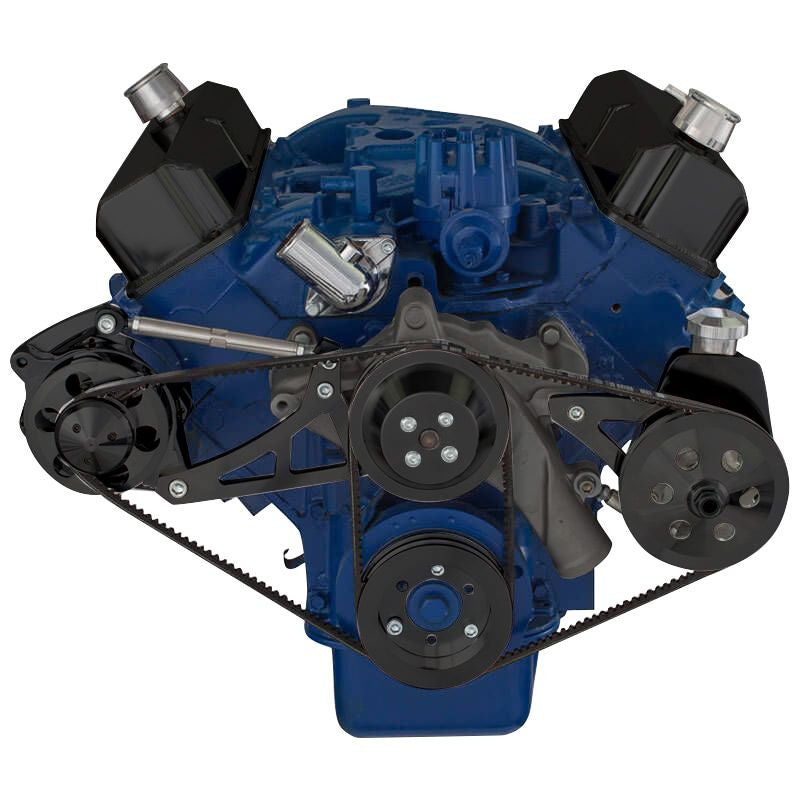

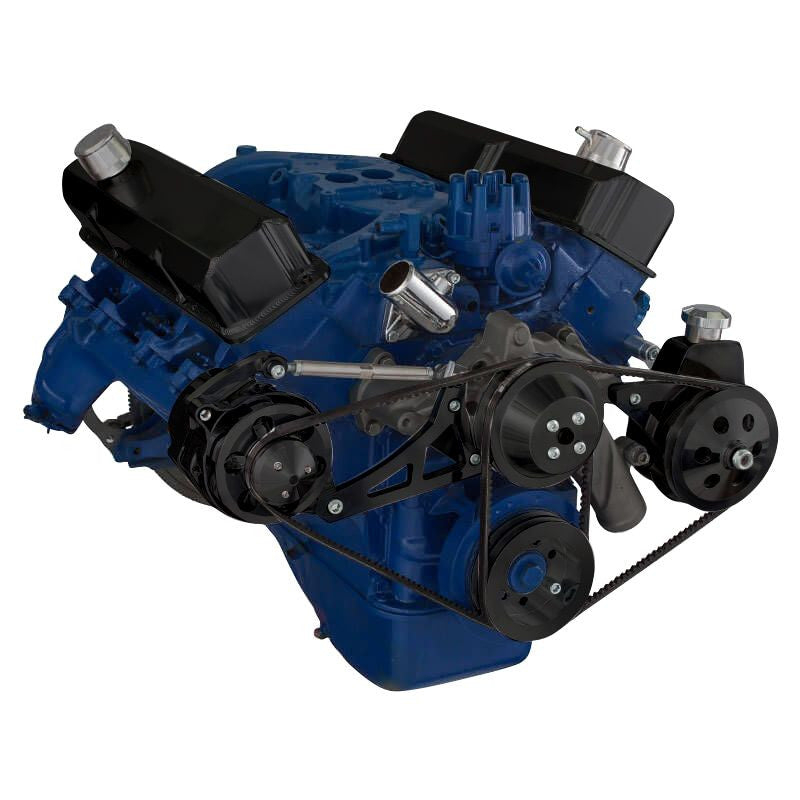

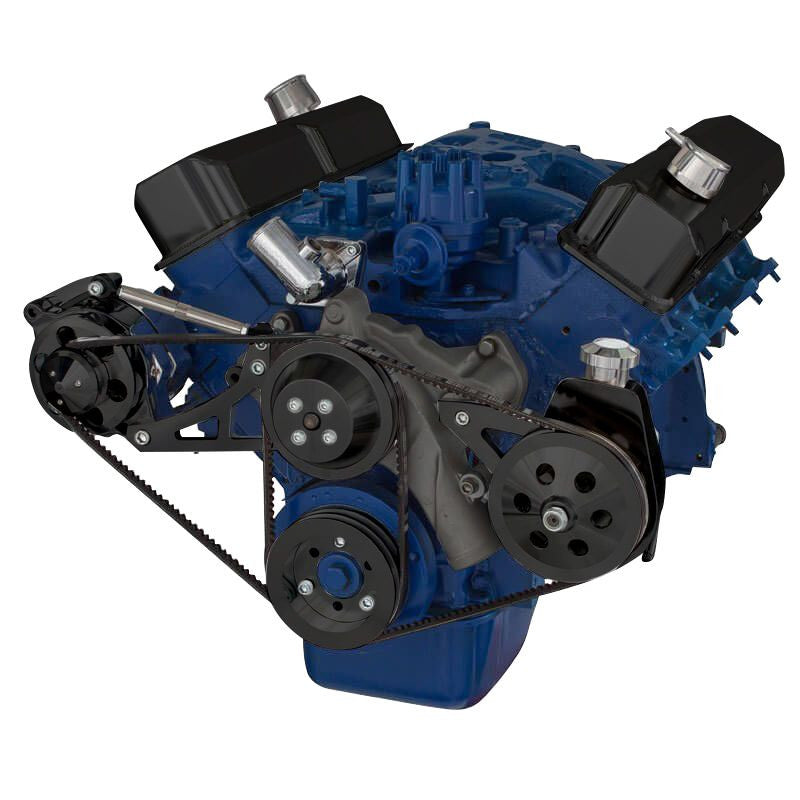

CVF Racing's Stealth Black V-belt system mounts an alternator and a Saginaw power steering pump on a Ford FE engine (390, 427 or 428), with the alternator mid-height on the passenger side.
It runs on a 2-groove water pump pulley and 2-groove crank pulley. The system is offered in underdrive or high flow pulley ratio, and the power steering pulley is offered for a 5/8 in. keyway shaft or a 3/4 in. press fit shaft.
Specifications:
- Finish: Stealth Black
- Belt type: V-belt
- Accessories driven: Alternator and power steering
- Alternator position: Mid, passenger side
- Power steering pump: Saginaw
- Pulley ratio: Underdrive or high flow (variant)
- Power steering pulley: 5/8 in. keyway or 3/4 in. press fit shaft (variant)
- Water pump rotation: Standard (mechanical pump)
- Engine: Ford FE 390, 427 and 428
- Part number: B-390-PS-SYSTEM-S
Kit Includes:
- 2-groove water pump pulley, 2-groove crank pulley and 1-groove alternator pulley
- FE alternator bracket
- FE power steering bracket for a Saginaw pump
- Power steering pulley for the selected shaft: 3/4 in. press fit or 5/8 in. keyway
- Universal alternator fan
Not Included: The Saginaw power steering pump is not included.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this system drive?
It runs an alternator and a Saginaw power steering pump on V-belts.
What choices are offered?
The system is offered in an underdrive or high flow pulley ratio, and with a power steering pulley for either a 5/8 in. keyway shaft or a 3/4 in. press fit shaft.
Is the power steering pump included?
No. The Saginaw power steering pump is purchased separately.
What is included?
It includes 2-groove water pump and crank pulleys, a 1-groove alternator pulley, the alternator and Saginaw power steering brackets, a power steering pulley and a universal alternator fan.
