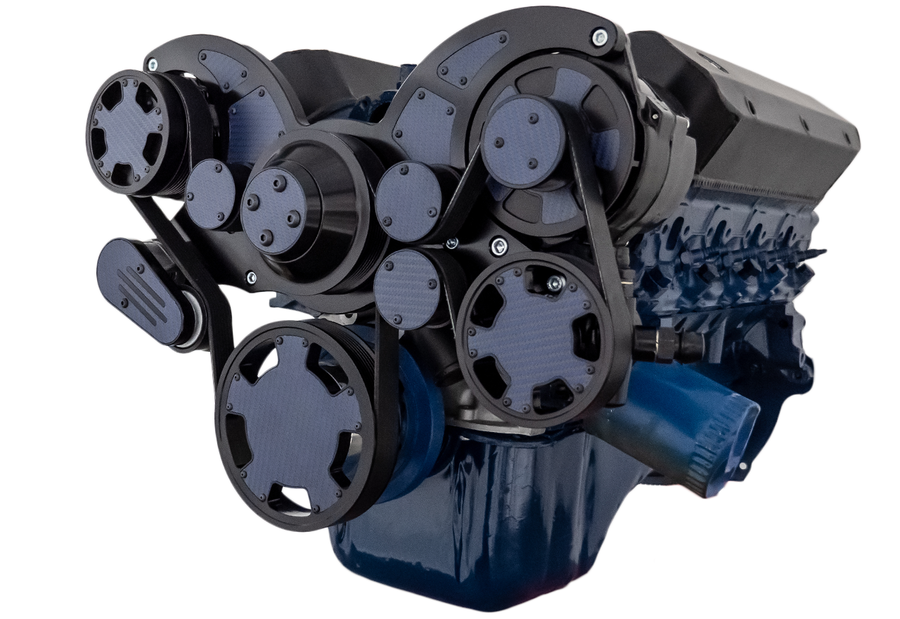

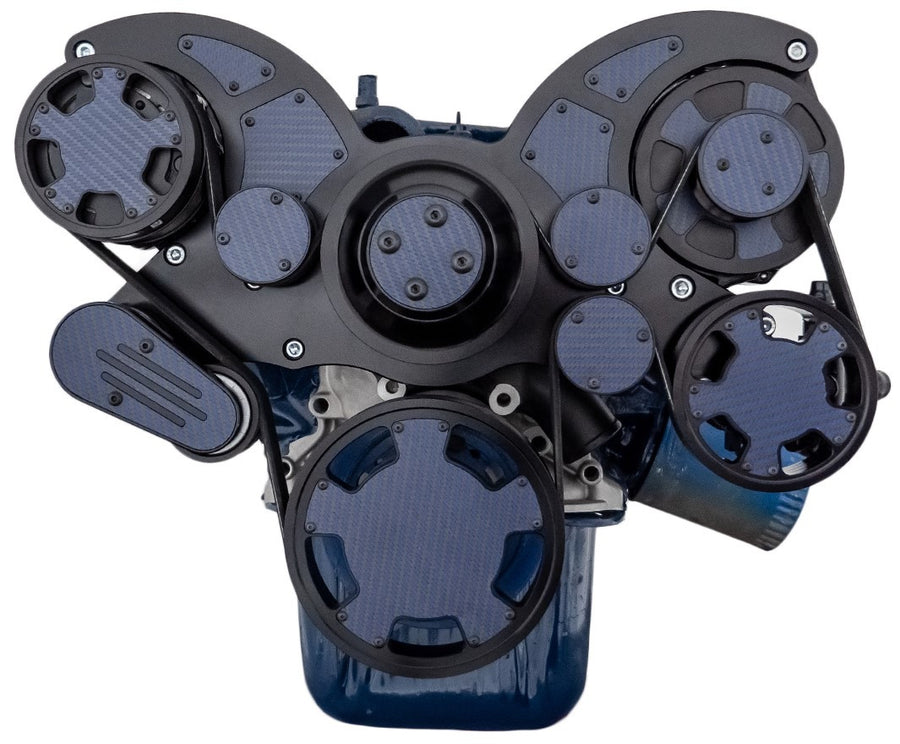

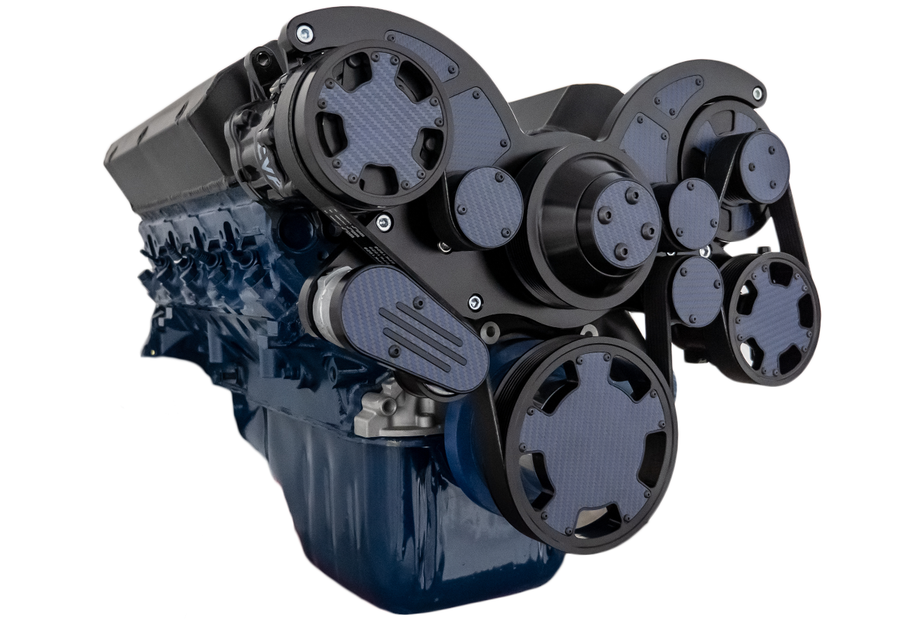

The CVF Racing WRAPTOR is an all inclusive 8-rib serpentine conversion for Ford 289, 302 and 351W small block engines with standard rotation, covering air conditioning, power steering and alternator. This version has a Stealth Black finish with a carbon fiber inlay, offered in black, red, blue, green or orange carbon fiber. It mounts the alternator on the driver's side above the power steering pump.
CVF uses 8-rib pulleys instead of a 6-rib layout, saying the wider belt adds grip and resists stretch and slip. A spring loaded tensioner holds belt tension through hard acceleration and deceleration and takes up belt stretch over time.
Specifications:
- Finish: Stealth Black with Carbon Fiber
- Carbon fiber color choices: Black, Red, Blue, Green or Orange
- Belt type: Serpentine, 8-rib
- Engine: Ford 289, 302 and 351W small block
- Water pump rotation: Standard
- Mounting position: Mid-mount, alternator on driver side above power steering pump
- Belt tensioner: Spring loaded
- Alternator: GM CS130 style, 1-wire
- Power steering pump: GM Type II
- A/C: Included, Peanut style (7B10) compressor with 8-rib clutch
- Water pump type: Mechanical, high flow aluminum
- Part number: CF-B-302-WRAPTOR-AC
Kit Includes:
- High flow aluminum water pump in the selected style
- GM CS130 style 1-wire alternator, black powder coated, in the selected output
- A/C compressor, black powder coated
- A/C compressor clutch cover, black bright dip anodized billet aluminum
- GM Type II power steering pump, black powder coated aluminum, with reservoir in the selected style (CVF lists a remote mount reservoir with bracket)
- Premium 8-rib serpentine belt
- Water pump pulley and cover
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- Power steering pulley
- One-piece billet aluminum bracket
- Universal alternator fan
Not Included: The crankshaft damper is not included; the damper already on the engine is one of the choices made when ordering. Power steering lines between the pump and the reservoir are not included.
Application Notes:
- Works with a mechanical or electric fuel pump.
- Works with a mechanical or electric fan; a long fan spacer may be needed.
- Compatible with hydroboost.
- Works with a factory or aftermarket balancer.
- Works on Clevor engines built on a 302 or 351W, and on Boss 302 engines.
- If the Saginaw power steering pump choice is selected, the power steering pulley does not carry the carbon fiber inlay.
- Additional choices for this kit (damper, water pump, power steering and alternator) are selected separately when ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does the CF-B-302-WRAPTOR-AC fit?
It fits Ford 289, 302 and 351W small block engines with a standard rotation water pump, including Clevor and Boss 302 builds.
What accessories does the CF-B-302-WRAPTOR-AC drive?
This all inclusive kit drives the air conditioning, power steering and alternator, with a Peanut style compressor, GM Type II power steering pump and GM CS130 style alternator included.
What carbon fiber colors are offered?
The carbon fiber inlay is offered in black, red, blue, green or orange.
What is not included?
The crankshaft damper and the power steering lines between the pump and reservoir are not included.
Does it work with hydroboost?
Yes. CVF states the WRAPTOR system works with hydroboost, and hydroboost is one of the power steering choices when ordering.
