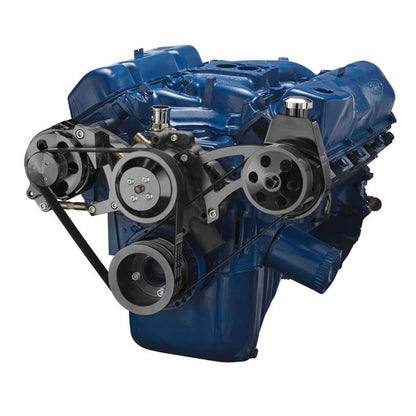

CVF Racing's stealth black BEAST kit converts a Ford 351 Cleveland to an 8 rib serpentine drive for the alternator and a Saginaw P series power steering pump. The 8 rib pulleys are CVF's alternative to the common 6 rib layout, aimed at better grip and less belt stretch.
It works with an original or aftermarket clockwise rotation water pump and includes billet aluminum alternator and power steering brackets, the pulleys and an alternator fan. CVF lists this black version for the 351C and states it does not fit 351M, 400 or Clevor engines.
Specifications:
- Engine: Ford 351 Cleveland (351C)
- Belt type: 8 rib serpentine
- Water pump: Original or aftermarket, clockwise (standard) rotation, 351C style
- Alternator position: Mid mount, passenger side
- Power steering: Saginaw P series
- Power steering pulley: 5/8 inch keyway or 3/4 inch press fit (selected when ordering)
- Belts: Premium 8 rib serpentine belt(s) can be added or left off when ordering
- Finish: Stealth Black
- Part number: B-351C-SERPENTINE-PS
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: Water pump and alternator are not included. The Saginaw power steering pump is also required and sold separately.
Application Notes:
- Requires a Saginaw P series power steering pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
- Will not work on 351M, 400 or Clevor engines per CVF's description.
- CVF offers a water pump, power steering pump, alternator and billet thermostat housing as separate add-ons.
- CVF's description lists this kit for the 351C only, while the order form also shows a 351M or 400 engine selection. Confirm 351M or 400 fitment with CVF before ordering for those engines.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does this kit fit?
CVF's description lists the stealth black version for the Ford 351 Cleveland only, not the 351M, 400 or Clevor.
What water pump does it use?
It uses an original or aftermarket clockwise rotation water pump, which is not included.
What power steering pump is needed?
A Saginaw P series pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
Are belts included?
Premium 8 rib serpentine belts are an ordering choice and can be added or left off.
