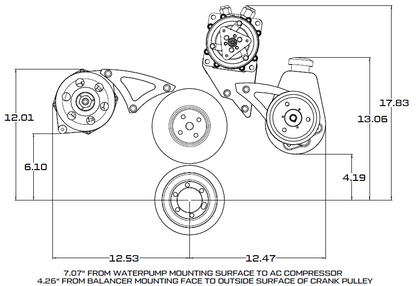

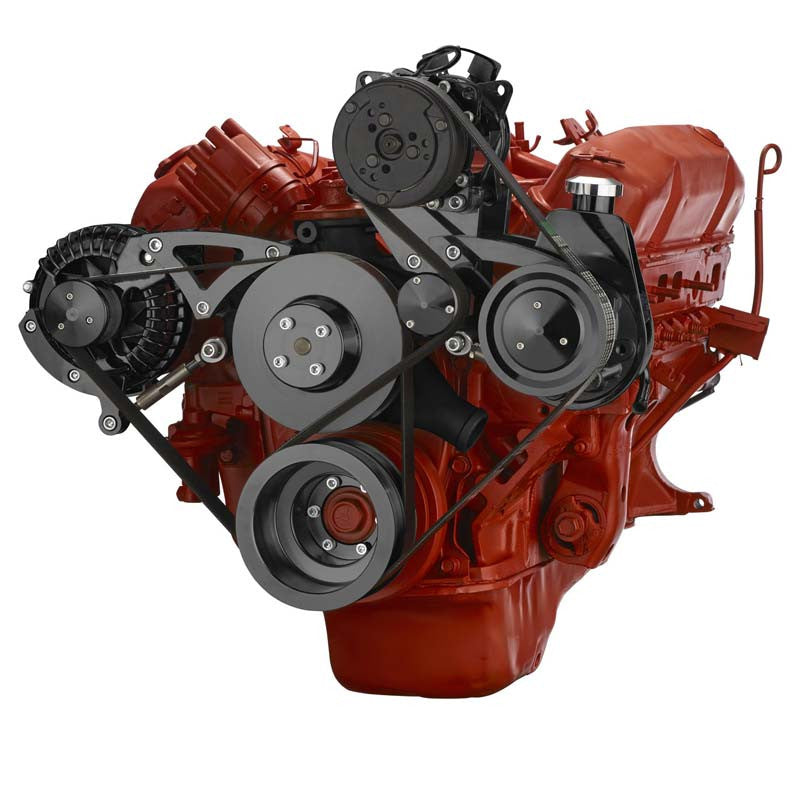

The CVF Racing BEAST system converts a Chrysler big block 383, 400, 426 and 440 from V-belts to an 8 rib serpentine drive that runs the alternator, power steering pump and A/C compressor. This version is finished in Stealth Black. CVF uses 8 rib pulleys in place of the more common 6 rib layout, stating that the wider belt grips better, stretches less and resists slipping.
The kit supplies the pulleys and brackets. The water pump, alternator, power steering pump and compressor come from the builder, and the compressor must be a Sanden 508 style unit with an 8 rib pulley.
Specifications:
- Finish: Stealth Black
- Belt type: 8 rib serpentine
- Accessories supported: Alternator, power steering, A/C
- Alternator position: Passenger side, mid mount
- A/C compressor: Sanden 508 style with 8 rib pulley, driver side high
- Power steering pump: Saginaw P series with keyway shaft
- Water pump type: Mechanical
- Engines: Chrysler big block 383, 400, 426 and 440
- Part number: B-440-SERPENTINE-AC
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- Billet aluminum A/C compressor bracket
Not Included: The water pump, alternator, power steering pump and A/C compressor are not included. Water pumps, housings, alternators, pumps, compressors, nose caps and thermostat housings offered as add-ons on the CVF page are sold separately.
Application Notes:
- Requires a Sanden 508 style compressor with an 8 rib pulley.
- Requires a Saginaw P series power steering pump with a keyway shaft. CVF states it does not fit Federal Mogul pumps or press fit Saginaw pumps.
- Additional choices for this kit (engine, alternator, pulley ratio, power steering pulley and belts) are selected separately when ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does the CVF Racing B-440-SERPENTINE-AC BEAST kit fit?
It is built for Chrysler big block 383, 400, 426 and 440 engines.
What accessories does this serpentine conversion run?
It drives the alternator, power steering pump and A/C compressor on a single 8 rib serpentine layout.
Which compressor and power steering pump are required?
A Sanden 508 style compressor with an 8 rib pulley and a Saginaw P series power steering pump with a keyway shaft are required.
Are the accessories included?
No. The water pump, alternator, power steering pump and compressor are not included with this kit.
Are belts included?
Belts are an optional choice made when ordering; CVF offers premium 8 rib serpentine belts or the kit without belts.
