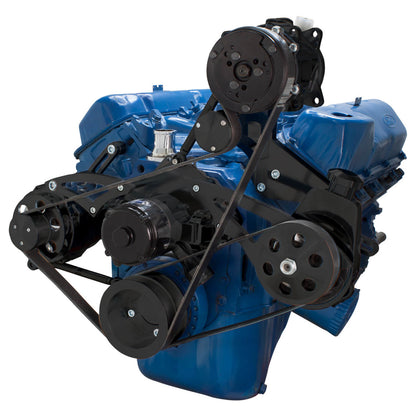

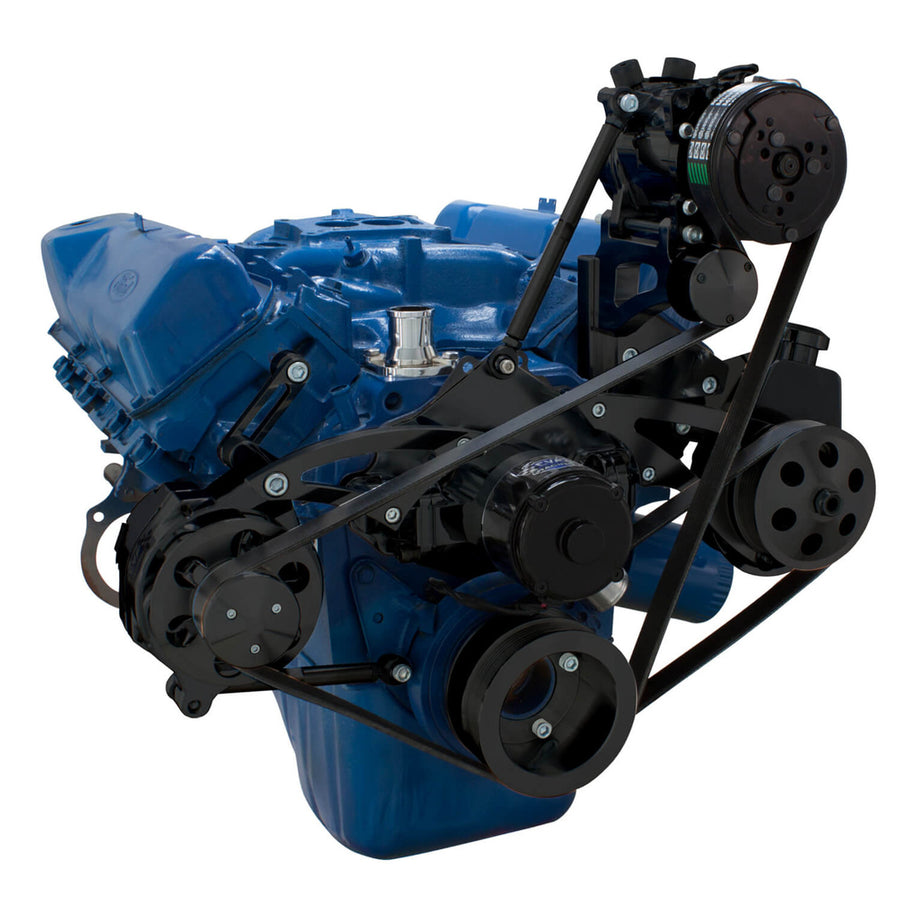

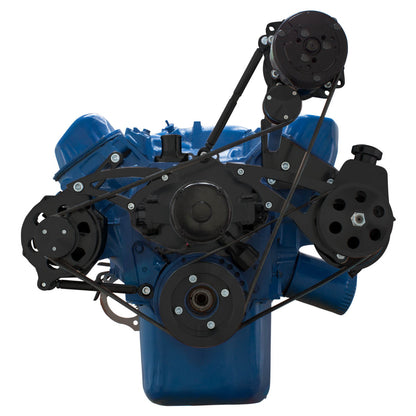

This stealth black CVF Racing BEAST kit sets up an 8 rib serpentine drive on a Ford 351 Cleveland that uses an electric water pump. The belt drives the alternator, a Saginaw P series power steering pump and a Sanden 508 style A/C compressor.
Because the water pump is electric, there is no water pump pulley in the kit. It includes the crank, alternator and power steering pulleys, billet aluminum brackets for all three accessories, an A/C idler pulley and an alternator fan.
Specifications:
- Engine: Ford 351 Cleveland (351C)
- Belt type: 8 rib serpentine
- Water pump type: Electric
- Alternator position: Mid mount, passenger side
- A/C compressor: Sanden 508 style, high driver side
- Power steering: Saginaw P series
- Power steering pulley: 5/8 inch keyway or 3/4 inch press fit (selected when ordering)
- Belts: Premium 8 rib serpentine belt(s) can be added or left off when ordering
- Finish: Stealth Black
- Part number: B-351C-SERPENTINE-AC-EWP
Kit Includes:
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- Billet aluminum compressor bracket
- A/C idler pulley
- ALTFAN universal alternator fan
Not Included: Water pump, power steering pump, Sanden 508 style A/C compressor and alternator are not included.
Application Notes:
- Requires a Saginaw P series power steering pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
- CVF offers a 35 GPM 351C electric water pump, 8 rib A/C compressor, billet compressor cap, power steering pump and alternator as separate add-ons.
- CVF's description lists this kit for the 351C only, while the order form also shows a 351M or 400 engine selection. Confirm 351M or 400 fitment with CVF before ordering for those engines.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Is this kit for a mechanical or electric water pump?
It is for engines running an electric water pump, so no water pump pulley is included.
What accessories does it drive?
It drives the alternator, a Saginaw P series power steering pump and a Sanden 508 style A/C compressor.
What is not included?
The water pump, power steering pump, A/C compressor and alternator are not included.
Are serpentine belts included?
Premium 8 rib belts are an ordering choice and can be added or left off.
