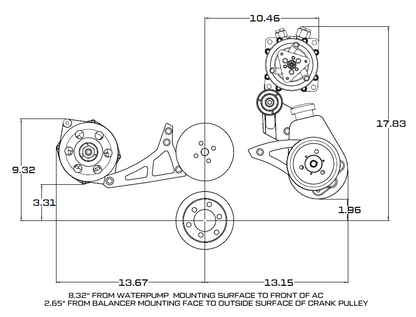

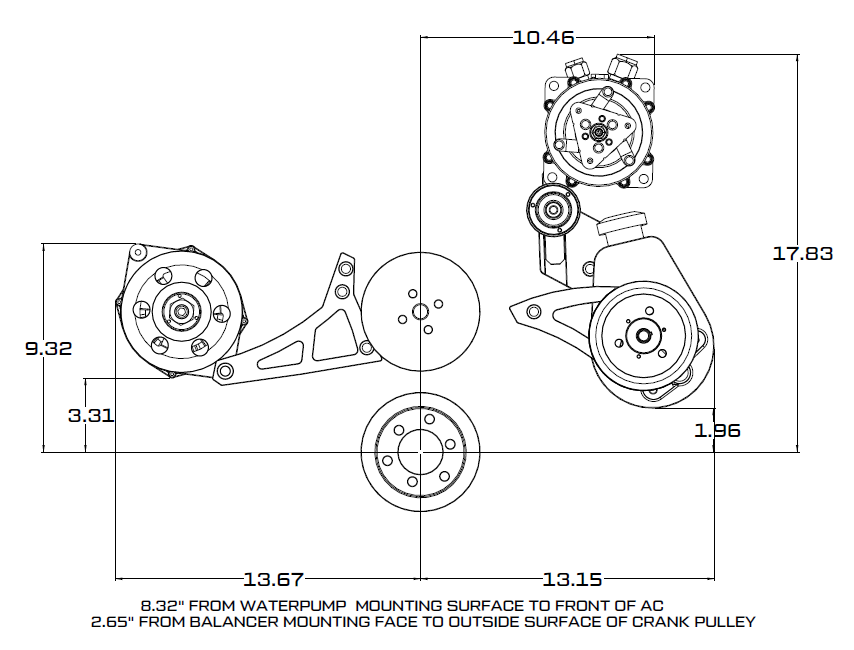

The CVF Racing BEAST serpentine conversion moves a Ford FE engine (390, 427 or 428) to an 8-rib belt drive for the alternator, power steering and air conditioning. CVF uses 8-rib pulleys instead of the more common 6-rib layout to add belt grip and limit stretch and slip. Parts are finished in Stealth Black.
The kit retains the original or an aftermarket clockwise rotation water pump. The alternator sits mid-height on the passenger side and a Sanden 508 style compressor mounts high on the driver side.
Specifications:
- Finish: Stealth Black
- Belt type: 8-rib serpentine
- Accessories driven: Alternator, power steering and A/C
- Alternator position: Mid, passenger side
- A/C compressor position: High, driver side
- Compressor: Sanden 508 style
- Water pump rotation: Standard (clockwise)
- Pulley ratio: Underdrive or high flow (variant)
- Power steering pump setup: Ford pump with steel reservoir, Saginaw P series with keyway shaft, or Saginaw P series with press fit shaft (variant; pump not included)
- Belts: With or without premium 8-rib belts (variant)
- Engine: Ford FE 390, 427 and 428
- Part number: B-390-SERPENTINE-AC
Kit Includes:
- Water pump pulley (2 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- Billet aluminum Sanden A/C compressor bracket
- Hard coat anodized idler pulley with cap and bearings
- ALTFAN universal alternator fan
Not Included: The water pump, alternator, power steering pump and A/C compressor are not included.
Application Notes:
- Uses the original or an aftermarket clockwise rotation water pump.
- Maximum alternator depth, measured from the front of the mounting ear to the back of the alternator, is 4.65 in. OEM alternators fit, but some aftermarket alternators are too deep and will hit the cylinder head.
- CVF suggests a compact 3G style alternator such as Powermaster 177491 (chrome), 277491 (polished) or 77491 (natural).
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this serpentine kit drive?
It runs the alternator, power steering pump and A/C compressor on 8-rib serpentine belts on a Ford FE 390, 427 or 428.
Which power steering pumps can it be set up for?
The kit is offered for a Ford pump with steel reservoir, a Saginaw P series pump with keyway shaft, or a Saginaw P series pump with press fit shaft. The pump itself is not included.
What water pump does it use?
It uses the original or an aftermarket clockwise rotation water pump, which is not included.
Is there an alternator size limit?
Yes. The alternator can be no deeper than 4.65 in. from the front of the mounting ear to the back of the case, and CVF suggests a compact 3G style unit such as Powermaster 177491, 277491 or 77491.
Are belts included?
Belts are an ordering choice: the kit is offered either without belts or with premium 8-rib serpentine belts.
