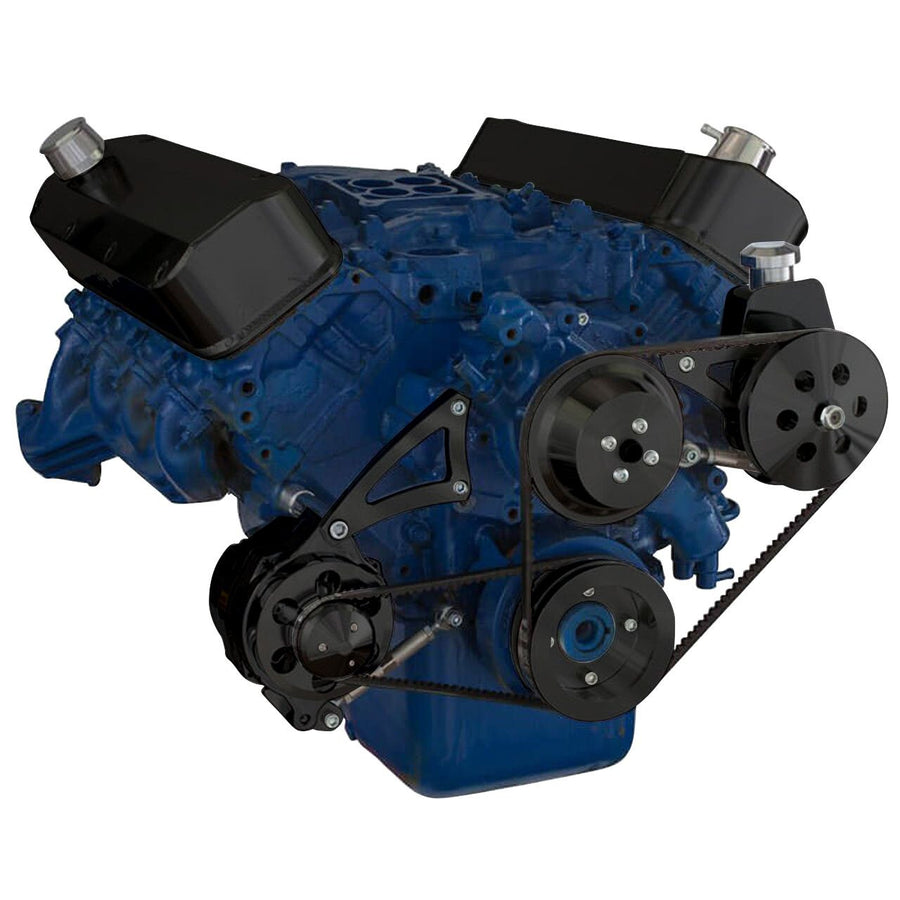

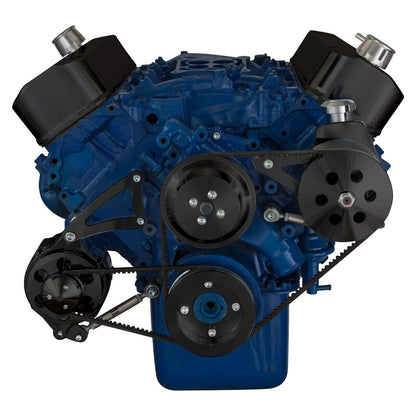

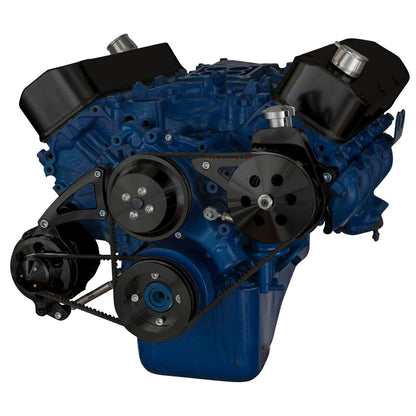

This CVF Racing V-belt system in stealth black supplies the pulleys and brackets for an alternator and Saginaw power steering pump on a Ford 429 or 460 big block. CVF machines the brackets and pulleys from 6061-T6 billet aluminum, and the low mount alternator bracket places the alternator down by the oil pan in the factory location.
It is offered in an underdrive or high flow (-HF) pulley ratio, and with a power steering pulley for a 5/8 in keyway shaft or a 3/4 in press fit shaft, both selected when ordering.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories: Alternator and Saginaw power steering
- Alternator position: Low, passenger side (factory location)
- Pulley ratio choices: Underdrive or high flow (-HF)
- Power steering pulley choices: 5/8 in keyway shaft or 3/4 in press fit shaft
- Material: 6061-T6 billet aluminum, CNC machined
- Water pump type: Mechanical, standard rotation
- Belt type: V-belt
- Finish: Stealth Black
- Engine: Ford 429 and 460 big block
- Part number: B-460-PS-SYSTEM-L
Kit Includes:
- 1 groove water pump pulley (BBFL1WP, or BBFL1WP-HF for the high flow ratio)
- 2 groove crankshaft pulley (BBFL2CR)
- 1 groove alternator pulley (listed by CVF as BBFL1ALT)
- Low mount alternator bracket (460-ALTBRKT-L)
- Power steering bracket (460-PSBRKT-S)
- Power steering pulley for the selected shaft (BBF2PS 3/4 in press fit or SBC1PS 5/8 in keyway)
- Universal alternator fan (ALTFAN)
Not Included: The Saginaw power steering pump, alternator and water pump are not included.
Application Notes:
- Requires a Saginaw power steering pump with its mounting stud in the lower right corner on the back of the pump.
- CVF offers an alternator, a water pump, a power steering pump, a power steering line kit, a billet thermostat housing and a 1969 to 1997 cast timing cover as separate add-ons, sold separately.
Additional Application Note: CVF lists this system by engine (Ford 429 and 460 big block) and does not name specific vehicles. CVF asks buyers with 1973 and later Ford truck applications to call before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Where does the alternator mount with this system?
The 460-ALTBRKT-L bracket mounts the alternator low on the passenger side near the oil pan, in the factory location.
What are the brackets and pulleys made from?
CVF machines them from 6061-T6 billet aluminum.
Is the power steering pump included?
No. A Saginaw pump with the mounting stud in the lower right corner on the back is required and sold separately.
What options are chosen when ordering?
Buyers select an underdrive or high flow (-HF) pulley ratio and a power steering pulley for a 5/8 in keyway or 3/4 in press fit shaft.
Is it offered in another finish?
Yes. CVF offers it in polished as part number 460-PS-SYSTEM-L.
