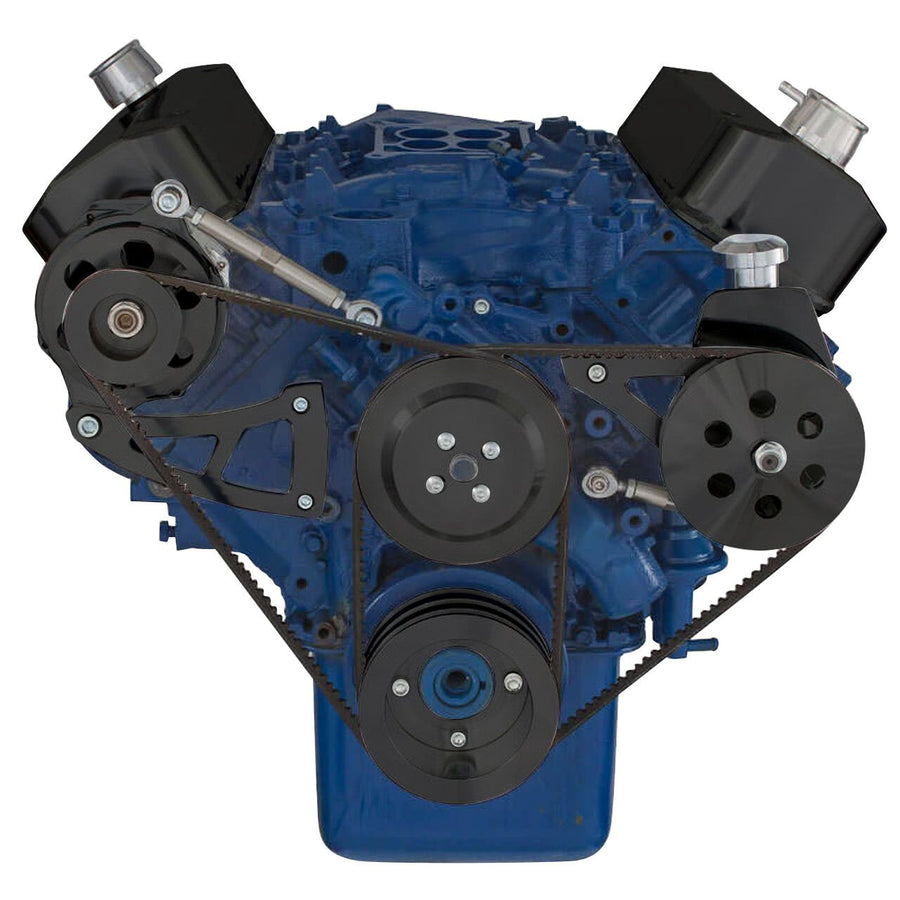

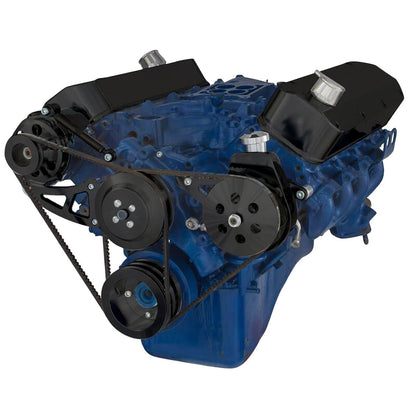

This CVF Racing V-belt system in stealth black provides the pulleys and brackets to run an alternator and a Saginaw power steering pump on a Ford 429 or 460 big block. The alternator sits in CVF's high mount position on the passenger side, paired with a tall single groove alternator pulley.
It is offered in an underdrive or high flow (-HF) pulley ratio, and with a power steering pulley for a 5/8 in keyway shaft or a 3/4 in press fit shaft, both selected when ordering.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories: Alternator and Saginaw power steering
- Alternator position: High, passenger side
- Pulley ratio choices: Underdrive or high flow (-HF)
- Power steering pulley choices: 5/8 in keyway shaft or 3/4 in press fit shaft
- Water pump type: Mechanical, standard rotation
- Belt type: V-belt
- Finish: Stealth Black
- Engine: Ford 429 and 460 big block
- Part number: B-460-PS-SYSTEM
Kit Includes:
- 2 groove water pump pulley (BBFL2WP, or BBFL2WP-HF for the high flow ratio)
- 3 groove crankshaft pulley (BBFL3CR)
- Tall 1 groove alternator pulley (listed by CVF as BBFL2ALT)
- High mount alternator bracket (460-ALTBRKT)
- Power steering bracket (460-PSBRKT-S)
- Power steering pulley for the selected shaft (BBF2PS 3/4 in press fit or SBC1PS 5/8 in keyway)
- Universal alternator fan (ALTFAN)
Not Included: The Saginaw power steering pump, alternator and water pump are not included.
Application Notes:
- Requires a Saginaw power steering pump with its mounting stud in the lower right corner on the back of the pump.
- CVF offers an alternator, a water pump, a power steering pump, a power steering line kit, a billet thermostat housing and a 1969 to 1997 cast timing cover as separate add-ons, sold separately.
Additional Application Note: CVF lists this system by engine (Ford 429 and 460 big block) and does not name specific vehicles. CVF asks buyers with 1973 and later Ford truck applications to call before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this system run?
It provides pulleys and brackets for an alternator in the high mount position and a Saginaw power steering pump on a Ford 429 or 460 big block.
Which power steering pump is required?
A Saginaw pump with the mounting stud in the lower right corner on the back of the pump is required, and it is not included.
What choices are made at ordering?
Buyers choose an underdrive or high flow (-HF) ratio and a power steering pulley for a 5/8 in keyway or 3/4 in press fit shaft.
What pulleys are in the kit?
It includes a 2 groove water pump pulley, the BBFL3CR 3 groove crank pulley, a tall 1 groove alternator pulley and the selected power steering pulley.
Is it offered in another finish?
Yes. CVF offers it in polished as part number 460-PS-SYSTEM.
