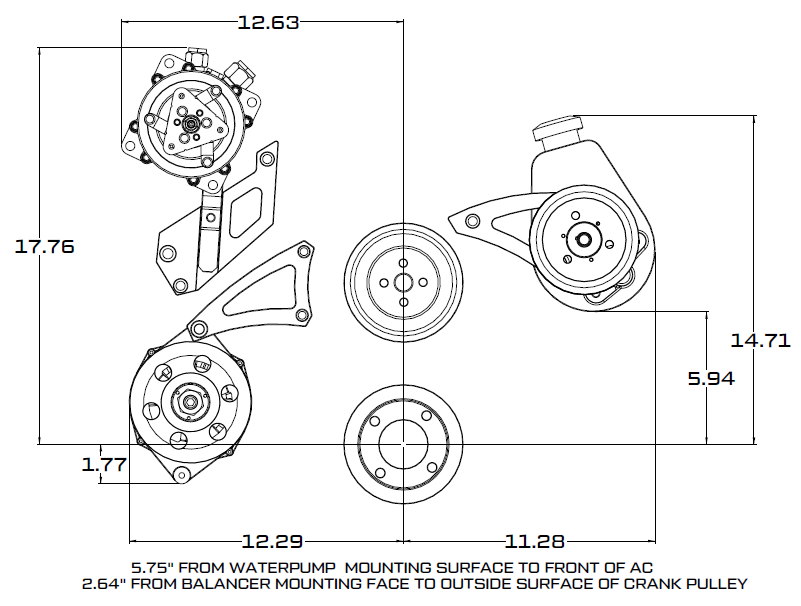

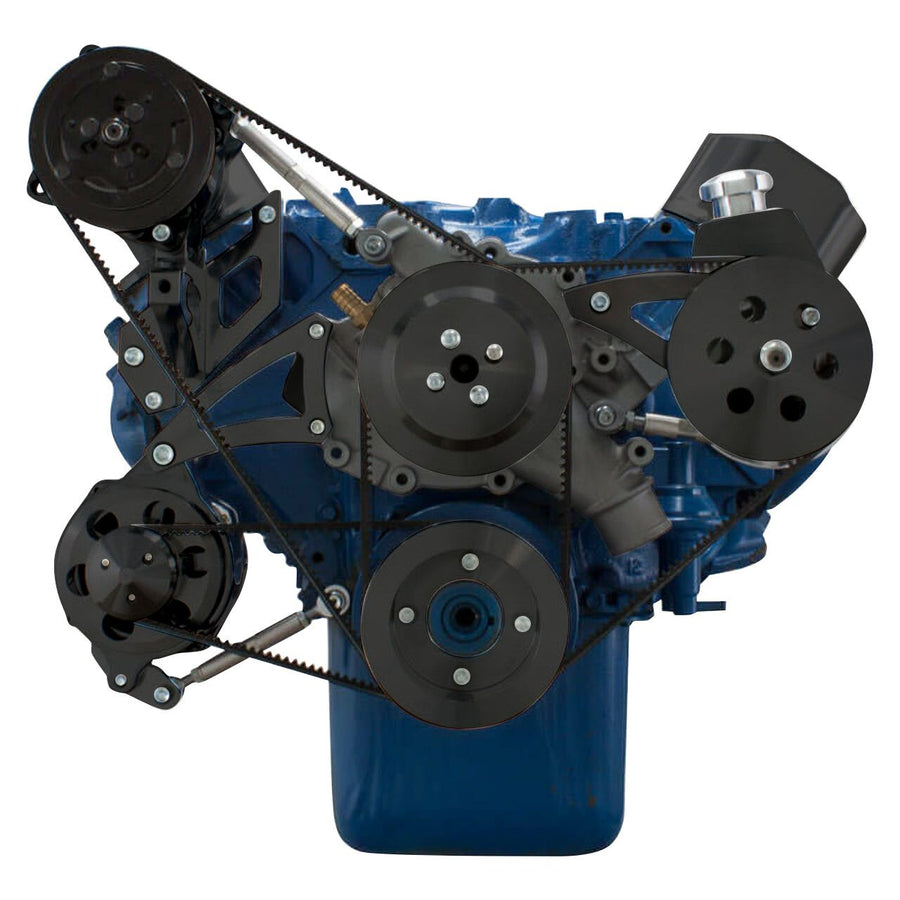

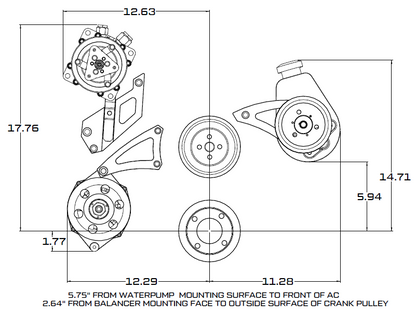

This CVF Racing system in stealth black supplies the pulleys and brackets for a complete V-belt accessory drive on a Ford 429 or 460 big block running an alternator, power steering and air conditioning. The alternator mounts low on the passenger side, and a Sanden 508 style compressor mounts high on the passenger side.
The system is offered in an underdrive or high flow (-HF) pulley ratio, and with a power steering pulley for either a 5/8 in keyway shaft or a 3/4 in press fit shaft. Both choices are made when ordering.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories: Alternator, Saginaw power steering, A/C
- Alternator position: Low, passenger side
- A/C compressor: Sanden 508, high passenger side
- Pulley ratio choices: Underdrive or high flow (-HF)
- Power steering pulley choices: 5/8 in keyway shaft or 3/4 in press fit shaft
- Water pump type: Mechanical, standard rotation
- Belt type: V-belt
- Finish: Stealth Black
- Engine: Ford 429 and 460 big block
- Part number: B-460-AC-SYSTEM
Kit Includes:
- Water pump pulley (CVF lists the 2 groove BBFL2WP, or BBFL1WP-HF for the high flow ratio)
- 3 groove crankshaft pulley (BBFL3CR)
- 1 groove alternator pulley (listed by CVF as BBFL1ALT)
- Power steering pulley for the selected shaft (SBC1PS keyway or BBF2PS press fit)
- Low mount alternator bracket (460-ALTBRKT-L)
- Power steering bracket (460-PSBRKT)
- A/C compressor bracket (460-ACBRKT)
- Universal alternator fan (ALTFAN)
Not Included: The Sanden 508 compressor, Saginaw power steering pump, alternator and water pump are not included and are required.
Application Notes:
- Requires a Sanden 508 compressor and a Saginaw power steering pump.
- Not compatible with CVF fabricated valve covers (BBF-VC-FAB).
- CVF offers a water pump, a billet thermostat housing, an alternator, a power steering pump, a power steering line kit, an A/C compressor and a 1969 to 1997 cast timing cover as separate add-ons, sold separately.
Additional Application Note: CVF lists this system by engine (Ford 429 and 460 big block) and does not name specific vehicles. CVF asks buyers with 1973 and later F-Series applications to call before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What accessories does this system support?
It provides pulleys and brackets for an alternator, a Saginaw power steering pump and a Sanden 508 A/C compressor on a Ford 429 or 460 big block.
What choices are made when ordering?
Buyers choose an underdrive or high flow (-HF) pulley ratio and a power steering pulley for a 5/8 in keyway shaft or a 3/4 in press fit shaft.
Is the compressor or power steering pump included?
No. The system requires a Sanden 508 compressor and a Saginaw power steering pump, along with an alternator and water pump, all sold separately.
Does it fit 1973 and later F-Series trucks?
CVF asks buyers with 1973 and later F-Series applications to call before ordering, so confirm fitment first.
Is it available in another finish?
Yes. CVF offers this system in polished as part number 460-AC-SYSTEM.
