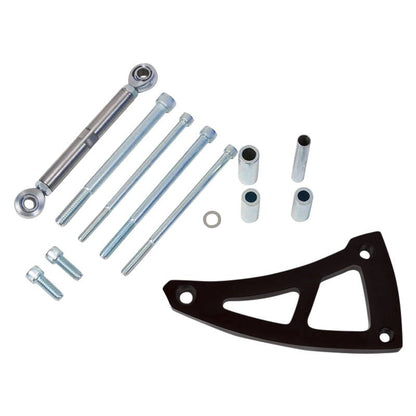

CVF Racing's high mount alternator bracket in stealth black places the alternator up near the cylinder head on the USA passenger side of a Ford 460 or 429CJ big block. CVF lists it for engines built from 1969 through 1997 running a V-belt drive.
It suits alternator only and alternator with power steering layouts. CVF does not recommend it for engines that also run air conditioning, because the alternator cannot move far enough inboard to line up with the normal groove without contacting the cylinder head.
Specifications:
- Bracket type: Alternator bracket, high mount
- Mounting position: High, passenger side
- Belt type: V-belt
- Water pump type: Mechanical
- Finish: Stealth Black
- Engine: Ford 460 big block or 429CJ, 1969 to 1997
- Part number: B-460-ALTBRKT
Application Notes:
- Alternator only setups: CVF pairs this bracket with a BBFL1WP water pump pulley (or a stock 1 groove pulley), a BBFL1CR crank pulley (or a stock 1 groove crank pulley) and an SBF1ALT alternator pulley.
- Power steering setups: CVF pairs it with a BBFL2WP water pump pulley, a BBFL3CR crank pulley with the groove nearest the engine left empty, and a BBF2ALT alternator pulley.
- Do not use this bracket on engines with both air conditioning and power steering.
Additional Application Note: CVF lists this bracket by engine only (Ford 460 big block or 429CJ, engines built 1969 through 1997) and does not name specific vehicles.
FAQ
Where does this bracket put the alternator?
It mounts the alternator high on the engine near the cylinder head, on the USA passenger side.
Which pulleys should be used with it?
For alternator only, CVF lists BBFL1WP, BBFL1CR and SBF1ALT. With power steering, CVF lists BBFL2WP, BBFL3CR with the inner groove unused, and BBF2ALT.
Can it be used with air conditioning?
No. CVF says not to use this bracket on A/C and power steering engines because the alternator would hit the cylinder head before lining up with the belt groove.
Which engines does it fit?
CVF lists the Ford 460 big block and 429CJ, covering engines built from 1969 through 1997.
Is it offered in another finish?
Yes. CVF sells it in polished as part number 460-ALTBRKT.
