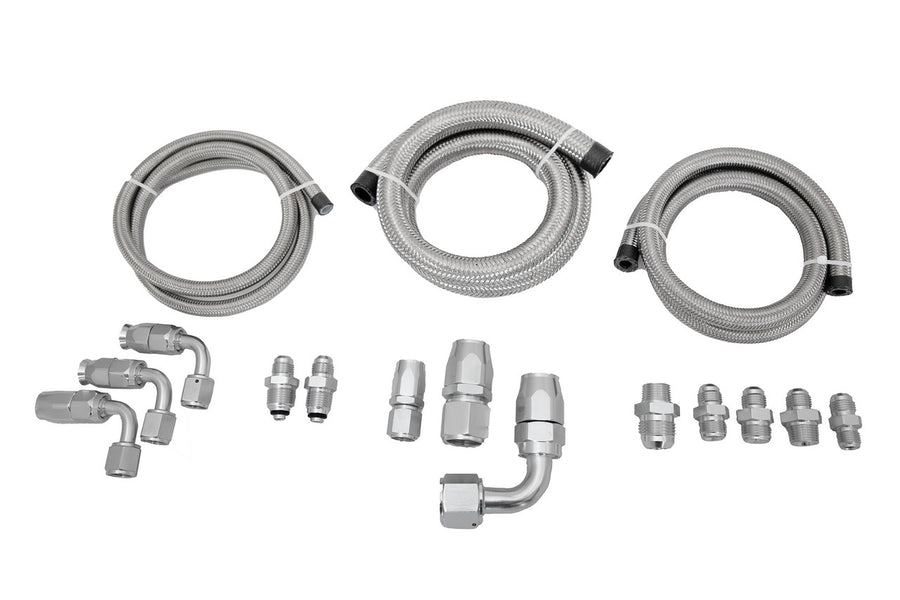

This stainless finish kit plumbs a power steering system that uses a remote reservoir. CVF lists it for GM Type II power steering pumps.
It supplies three lines: a -6AN pressure line from the pump to the gearbox, a -6AN line from the gearbox to the reservoir, and a -10AN feed line from the reservoir back to the pump, along with the hose ends and adapters for each run.
Specifications:
- Kit type: Remote reservoir power steering line kit
- Pump compatibility: GM Type II
- Reservoir type: Remote only
- Line sizes: -6AN pressure and return, -10AN reservoir feed
- Hose lengths: Three 3 foot sections
- Finish: Stainless
- Part number: PS-LINE-KIT-REM
Kit Includes:
- Pump to gearbox: 3 foot -6AN stainless steel high pressure PTFE hose
- Pump to gearbox: two -6AN 90 degree hose ends
- Pump to gearbox: -6AN to 11/16-18 inverted flare adapter
- Pump to gearbox: -6AN to M18 x 1.5 O-ring adapter
- Gearbox to reservoir: 3 foot -6AN stainless steel braided hose (listed by CVF as high pressure)
- Gearbox to reservoir: one -6AN 90 degree hose end
- Gearbox to reservoir: one -6AN straight hose end
- Gearbox to reservoir: -6AN to 5/8 inverted flare adapter
- Gearbox to reservoir: -6AN to M16 x 1.5 O-ring adapter
- Gearbox to reservoir: -6AN to 3/8 NPT adapter
- Reservoir to pump: 3 foot -10AN stainless steel braided hose
- Reservoir to pump: one -10AN straight hose end
- Reservoir to pump: one -10AN 90 degree hose end
- Reservoir to pump: -10AN to 3/8 NPT adapter
Application Notes:
- For remote style reservoirs only. For a pump with an integral (attached) reservoir, CVF lists PS-LINE-KIT.
- Where a needed adapter is not included for a given application, CVF notes the kit can be adapted with additional AN adapters (sold separately).
FAQ
What is the CVF PS-LINE-KIT-REM kit for?
It is a complete line kit for a power steering system with a remote reservoir, listed by CVF for GM Type II pumps.
How many lines does it make?
It provides three lines: pump to gearbox, gearbox to reservoir, and reservoir to pump.
What size is the reservoir feed line?
The reservoir to pump line uses 3 feet of -10AN braided hose with straight and 90 degree -10AN hose ends and a -10AN to 3/8 NPT adapter.
Will it work with an integral reservoir pump?
No. It is for remote reservoirs only, and CVF lists PS-LINE-KIT for integral reservoir pumps.
