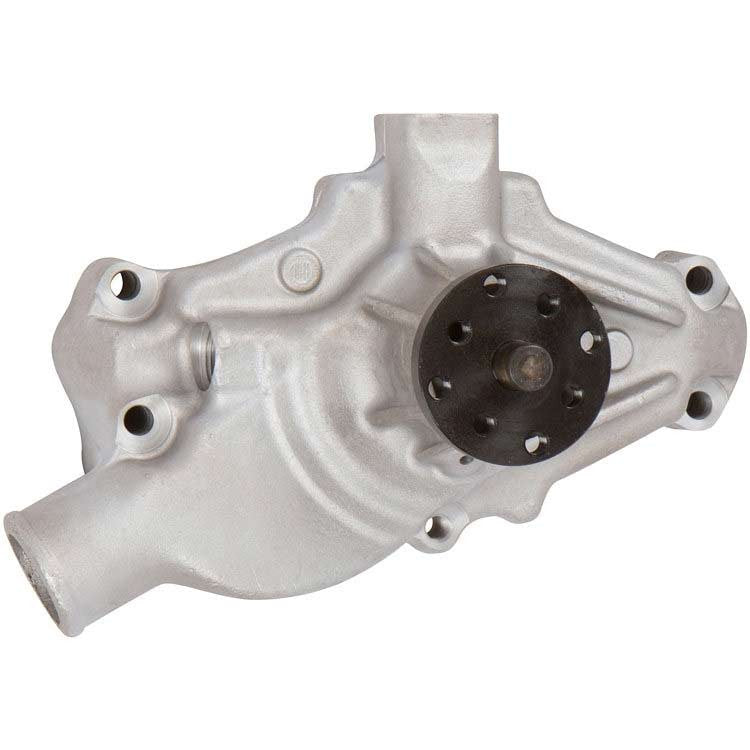

This high-flow aluminum mechanical water pump is built for Chevy Small Block 283, 302, 305, 327, 350 and 400 V8 engines in a short-style configuration, with standard (clockwise) rotation and a Satin Cast finish. It works with properly configured factory-style accessory brackets and compatible CVF Racing serpentine systems.
Specifications:
- Application: Chevy Small Block 283, 302, 305, 327, 350 and 400 V8
- Style: Short
- Rotation: Standard (clockwise)
- Hub height: 5-5/8 in.
- Pilot shaft diameter: 5/8 in.
- Inlet diameter: 1-3/4 in.
- Material: Aluminum
- Finish: Natural satin cast aluminum
- Warranty: CVF Racing Lifetime Warranty
- Part number: SBCS-WP
Application Notes:
- Designed for use with properly configured factory-style alternator and power steering brackets and compatible CVF Racing serpentine systems.
- Cross-references listed by CVF: GM OEM 3782608 and 3839175, Edelbrock Victor Series 8811, Milodon 16230, PRW 1435005.
- CVF lists these as application references, not confirmed direct replacements; verify hub height, pilot diameter, inlet size and accessory drive compatibility before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does the SBCS-WP water pump fit?
It is designed for Chevy Small Block 283, 302, 305, 327, 350 and 400 V8 engines.
What is the hub height of this water pump?
The hub height is 5-5/8 in.
What rotation does this pump use?
It uses standard (clockwise) rotation.
Is this a direct replacement for the part numbers CVF lists?
No, CVF lists those numbers as application references only and recommends verifying dimensions and accessory drive compatibility before ordering.
