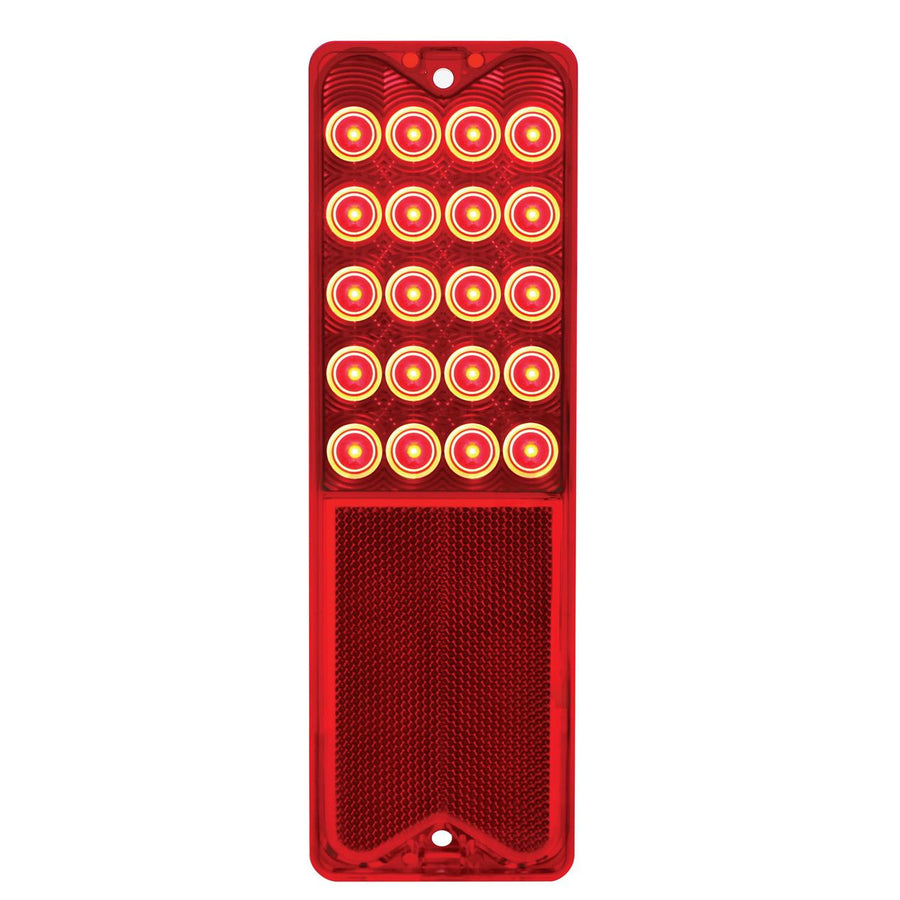

This kit supplies a pair of LED tail lights with lenses for 1967 to 1972 Chevy C10 trucks. A selector switch sets sequential left, sequential right, or sequential function off, and a brake attention sequence runs once when the brakes are applied.
Specifications:
- Sequential operation: Selector switch for sequential left, sequential right, or off
- Brake attention: Sequence runs once
- Assembly: Tail lights with lens and LED
- Moisture protection: Epoxy-coated back side
- Connection: 1157 plug
- Electrical system: 12V DC
- Quantity: Pair
- Part number: 6772C10-LED-TL-SEQ-KIT
Application Notes:
- Installs with no modification to the vehicle.
- CVF recommends upgrading the turn signal flasher to the CVF LED flasher, part number UNV-LED-FLSHR (sold separately).
Vehicle Applications:
- 1967 Chevrolet C10
- 1968 Chevrolet C10
- 1969 Chevrolet C10
- 1970 Chevrolet C10
- 1971 Chevrolet C10
- 1972 Chevrolet C10
FAQ
Which trucks do the 6772C10-LED-TL-SEQ-KIT tail lights fit?
They fit 1967 to 1972 Chevy C10 trucks.
What does the selector switch do?
It sets the lights to sequential left, sequential right, or sequential function off.
Does the kit include lenses?
Yes, the kit includes a pair of tail lights with lens and LED.
Do these LED lights need a different flasher?
CVF recommends upgrading to its LED flasher, part number UNV-LED-FLSHR, which is sold separately.
