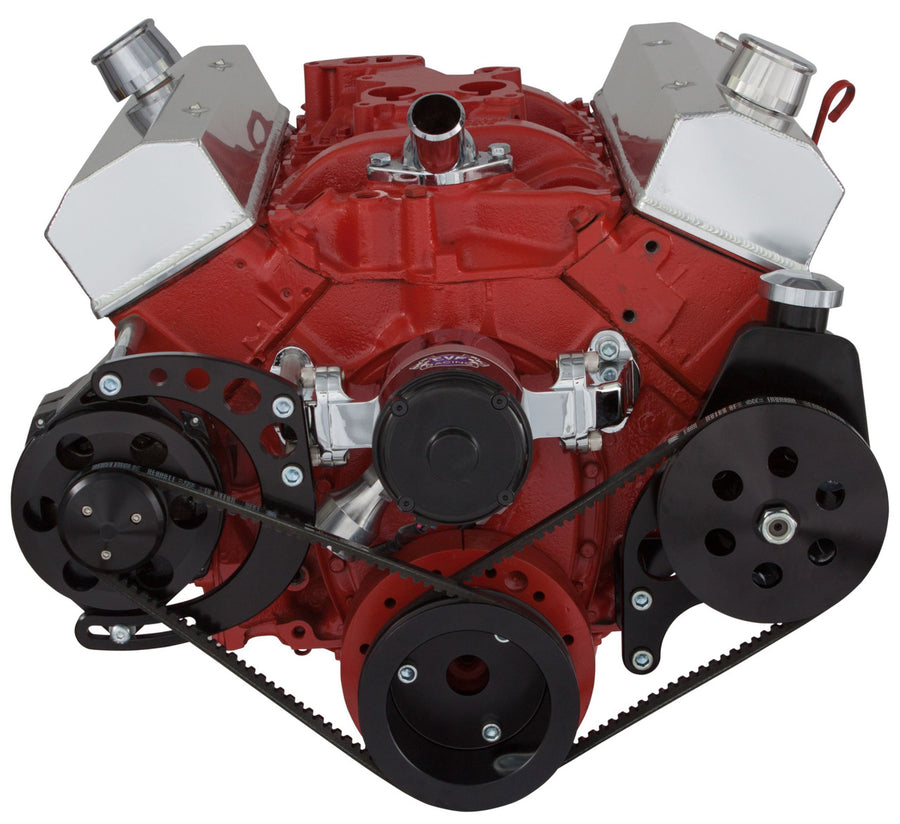

This CVF Racing V-belt pulley and bracket system runs a Saginaw P series power steering pump and an alternator on a Small Block Chevy (283, 302, 305, 350 and 400 CID) with an electric water pump. The power steering pump mounts low on the driver side and the alternator sits on the passenger side in a mid-mount position.
All brackets and pulleys come in a Stealth Black finish. The pump, alternator, water pump and belts are purchased separately.
Specifications:
- Engine: Small Block Chevy 283, 302, 305, 350 and 400 CID
- Belt type: V-belt
- Water pump: Electric Water Pump
- Power steering: Saginaw P series pump, low driver-side mount
- Alternator position: Mid-Mount, passenger side
- Air conditioning: None
- Finish: Stealth Black
- Part number: B-350-PS-SYSTEM-C-EWP
Kit Includes:
- 2-groove crankshaft pulley
- 1-groove alternator pulley
- Passenger-side alternator bracket
- Driver-side power steering bracket
- Keyway-style power steering pulley for Saginaw P series pumps
- Universal alternator fan (ALTFAN)
Not Included: Belts, power steering pump, alternator and water pump.
Application Notes:
- Designed for a Chevy electric water pump and set up with long water pump pulley spacing.
- CVF notes the kit can be customized to use either short or long water pump pulleys and spacing.
- Alternator, Saginaw power steering pump, water pump, power steering line kit and thermostat housing add-ons are sold separately.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does CVF Racing B-350-PS-SYSTEM-C-EWP fit?
CVF lists it for Small Block Chevy 283, 302, 305, 350 and 400 CID engines with an electric water pump.
Which power steering pump does B-350-PS-SYSTEM-C-EWP use?
It is built around a Saginaw P series power steering pump mounted low on the driver side, using the included keyway-style pulley.
Is the power steering pump included with B-350-PS-SYSTEM-C-EWP?
No. Belts, the power steering pump, the alternator and the water pump are not included.
Where is the alternator mounted on B-350-PS-SYSTEM-C-EWP?
The alternator mounts on the passenger side of the engine in a mid-mount position.
