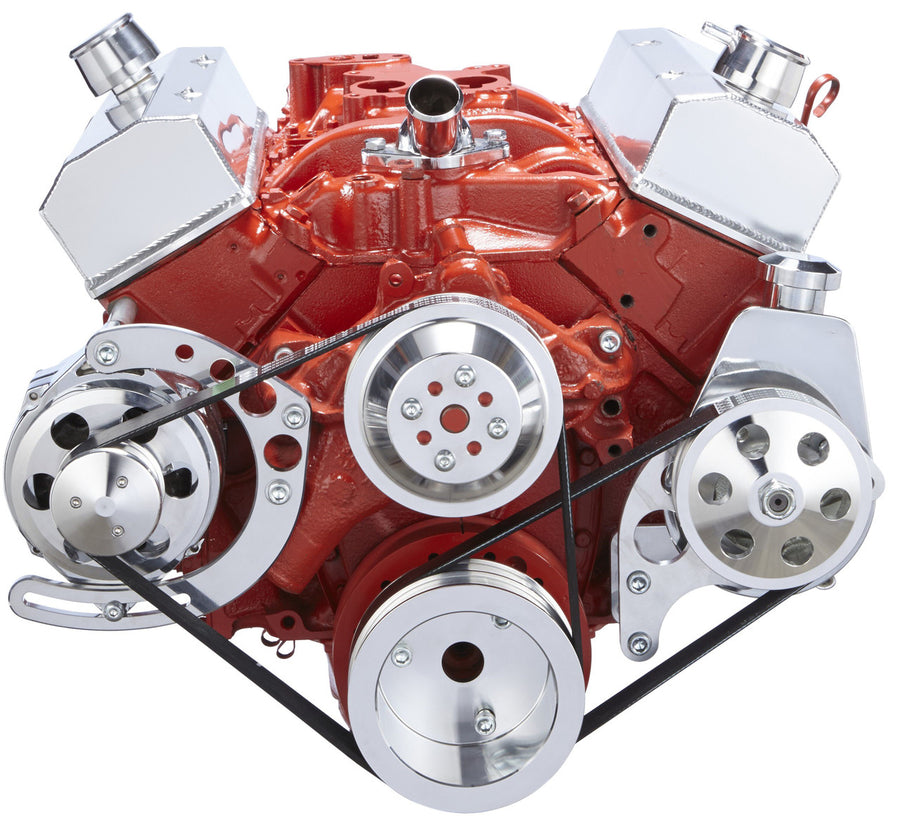

The CVF Racing BEAST serpentine conversion converts a Small Block Chevy (283, 302, 305, 350 and 400 CID) with a long water pump to an 8-rib serpentine accessory drive for a power steering & alternator setup. A Saginaw P series power steering pump mounts low on the driver side. The alternator mounts on the passenger side in a mid-mount position.
CVF uses an 8-rib pulley profile instead of the common 6-rib design to give the belt more grip and reduce stretch and slip. Brackets and pulleys are supplied in a polished finish.
Specifications:
- Engine: Small Block Chevy 283, 302, 305, 350 and 400 CID
- Belt type: 8-rib serpentine
- Water pump: Long Water Pump
- Alternator position: Passenger side, mid-mount
- Power steering: Saginaw P series, low driver side
- Air conditioning: None
- Finish: Polished
- Part number: 350-SERPENTINE-PS-C
Kit Includes:
- Single-belt water pump pulley
- 2-belt crankshaft pulley
- Single-belt alternator pulley
- Passenger-side alternator bracket
- Driver-side power steering bracket
- Single-belt keyway-style power steering pulley
- Universal alternator fan (ALTFAN)
Not Included: The power steering pump, alternator and water pump.
Application Notes:
- Requires a Small Block Chevy long water pump.
- Requires a Saginaw style power steering pump; CVF specifies a keyway shaft for the standard pulley.
- Compatible with tall valve covers.
- Works with mechanical or electric fans; CVF recommends electric fans.
- Power steering pulley shaft (5/8 inch keyway or 3/4 inch press-fit), cylinder head type (standard or Fuelie/camel hump without front bolt holes), crank trigger and belt inclusion are selected separately when ordering.
- CVF notes the crank trigger version is usually reserved for race applications.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does CVF Racing 350-SERPENTINE-PS-C fit?
CVF lists this conversion for Small Block Chevy 283, 302, 305, 350 and 400 CID engines with a long water pump.
What is not included with 350-SERPENTINE-PS-C?
The power steering pump, alternator and water pump are not included.
Why does the BEAST kit use 8-rib pulleys?
CVF uses an 8-rib design in place of a traditional 6-rib layout for more belt grip with less stretching and slipping.
What finish is 350-SERPENTINE-PS-C?
This part number is the Polished version.
