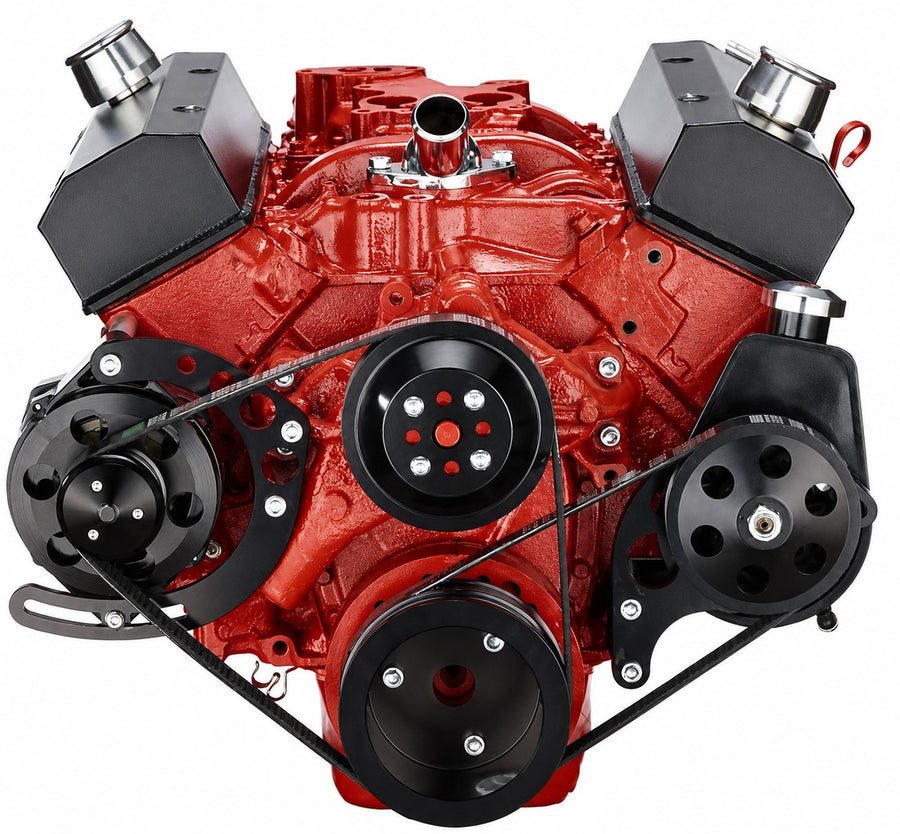

The CVF Racing BEAST serpentine conversion converts a Small Block Chevy (283, 302, 305, 350 and 400 CID) with a long water pump to an 8-rib serpentine accessory drive for a power steering & alternator setup. A Saginaw P series power steering pump mounts low on the driver side. The alternator mounts on the passenger side in a mid-mount position.
CVF uses an 8-rib pulley profile instead of the common 6-rib design to give the belt more grip and reduce stretch and slip. Brackets and pulleys are supplied in a Stealth Black finish. The Stealth Black version uses a black bright dip anodize coating.
Specifications:
- Engine: Small Block Chevy 283, 302, 305, 350 and 400 CID
- Belt type: 8-rib serpentine
- Water pump: Long Water Pump
- Alternator position: Passenger side, mid-mount
- Power steering: Saginaw P series, low driver side
- Air conditioning: None
- Finish: Stealth Black
- Part number: B-350-SERPENTINE-PS-C
Kit Includes:
- Single-belt water pump pulley
- 2-belt crankshaft pulley
- Single-belt alternator pulley
- Passenger-side alternator bracket
- Driver-side power steering bracket
- Single-belt keyway-style power steering pulley
- Universal alternator fan (ALTFAN)
Not Included: The power steering pump, alternator and water pump.
Application Notes:
- Requires a Small Block Chevy long water pump.
- Requires a Saginaw style power steering pump; CVF specifies a keyway shaft for the standard pulley.
- Compatible with tall valve covers.
- Works with mechanical or electric fans; CVF recommends electric fans.
- Power steering pulley shaft (5/8 inch keyway or 3/4 inch press-fit), cylinder head type (standard or Fuelie/camel hump without front bolt holes), crank trigger and belt inclusion are selected separately when ordering.
- CVF notes the crank trigger version is usually reserved for race applications.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does CVF Racing B-350-SERPENTINE-PS-C fit?
CVF lists this conversion for Small Block Chevy 283, 302, 305, 350 and 400 CID engines with a long water pump.
What is not included with B-350-SERPENTINE-PS-C?
The power steering pump, alternator and water pump are not included.
Why does the BEAST kit use 8-rib pulleys?
CVF uses an 8-rib design in place of a traditional 6-rib layout for more belt grip with less stretching and slipping.
What finish is B-350-SERPENTINE-PS-C?
This part number is the Stealth Black version.
