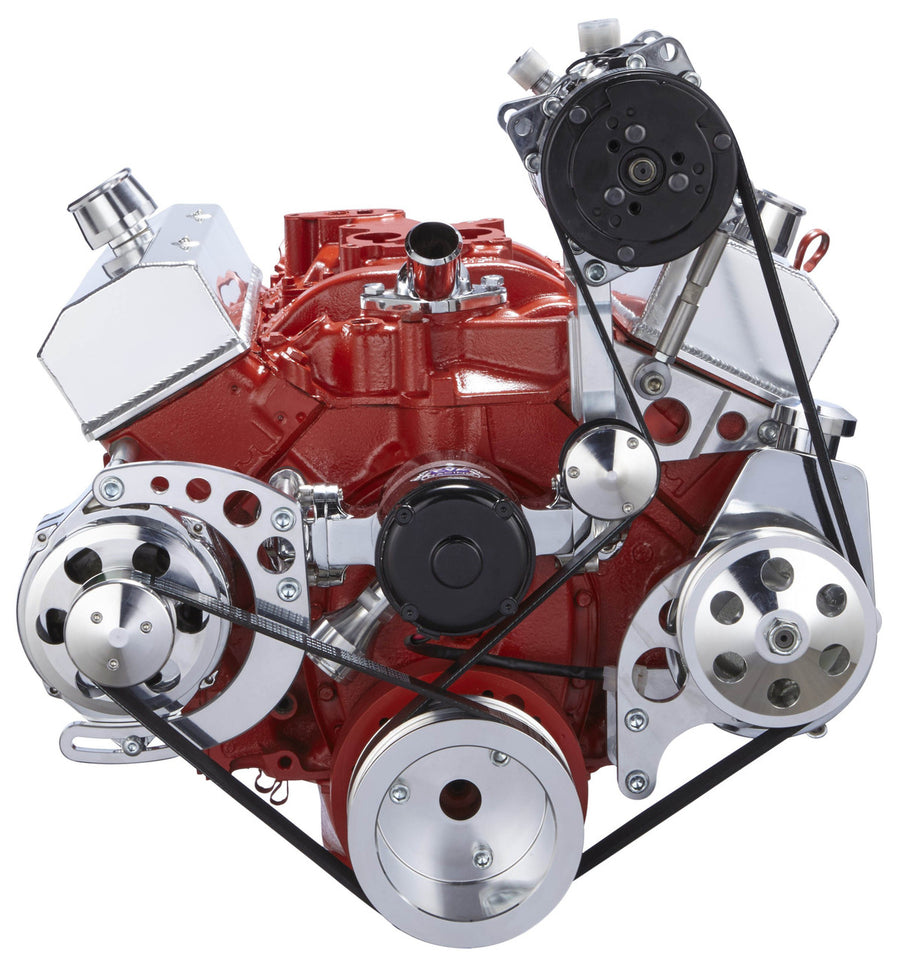

The CVF Racing BEAST serpentine conversion converts a Small Block Chevy (283, 302, 305, 350 and 400 CID) with an electric water pump to an 8-rib serpentine accessory drive for an A/C, power steering & alternator setup. A Sanden 508 style A/C compressor mounts high on the driver side above the power steering pump. A Saginaw P series power steering pump mounts low on the driver side. The alternator mounts on the passenger side in a mid-mount position.
CVF uses an 8-rib pulley profile instead of the common 6-rib design to give the belt more grip and reduce stretch and slip. Brackets and pulleys are supplied in a polished finish.
Specifications:
- Engine: Small Block Chevy 283, 302, 305, 350 and 400 CID
- Belt type: 8-rib serpentine
- Water pump: Electric Water Pump
- Alternator position: Passenger side, mid-mount
- Power steering: Saginaw P series, low driver side
- Air conditioning: Sanden 508 style, high driver side
- Finish: Polished
- Part number: 350-SERPENTINE-AC-C-EWP
Kit Includes:
- 2-belt crankshaft pulley
- Single-belt alternator pulley
- Single-belt idler pulley
- Passenger-side alternator bracket
- Driver-side power steering bracket
- Driver-side A/C compressor bracket
- Single-belt keyway-style power steering pulley
- Universal alternator fan (ALTFAN)
Not Included: The electric water pump, A/C compressor, power steering pump and alternator.
Application Notes:
- Designed for a Chevy electric water pump.
- Requires a Sanden 508 style A/C compressor with an 8-rib clutch.
- Requires a Saginaw style power steering pump; CVF specifies a keyway shaft for the standard pulley.
- Compatible with tall and fabricated valve covers.
- Works with mechanical or electric fans; CVF recommends electric fans.
- The power steering pulley is offered for a 5/8 inch keyway shaft or a 3/4 inch press-fit shaft, selected when ordering.
- Belts are not included unless the belt option is selected when ordering.
- A crank trigger version is offered as an ordering option; CVF notes it is usually reserved for race applications.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What engines does CVF Racing 350-SERPENTINE-AC-C-EWP fit?
CVF lists this conversion for Small Block Chevy 283, 302, 305, 350 and 400 CID engines with an electric water pump.
What is not included with 350-SERPENTINE-AC-C-EWP?
The electric water pump, A/C compressor, power steering pump and alternator are not included.
Why does the BEAST kit use 8-rib pulleys?
CVF uses an 8-rib design in place of a traditional 6-rib layout for more belt grip with less stretching and slipping.
Will 350-SERPENTINE-AC-C-EWP clear fabricated valve covers?
Yes. CVF lists it as compatible with tall and fabricated valve covers.
What finish is 350-SERPENTINE-AC-C-EWP?
This part number is the Polished version.
