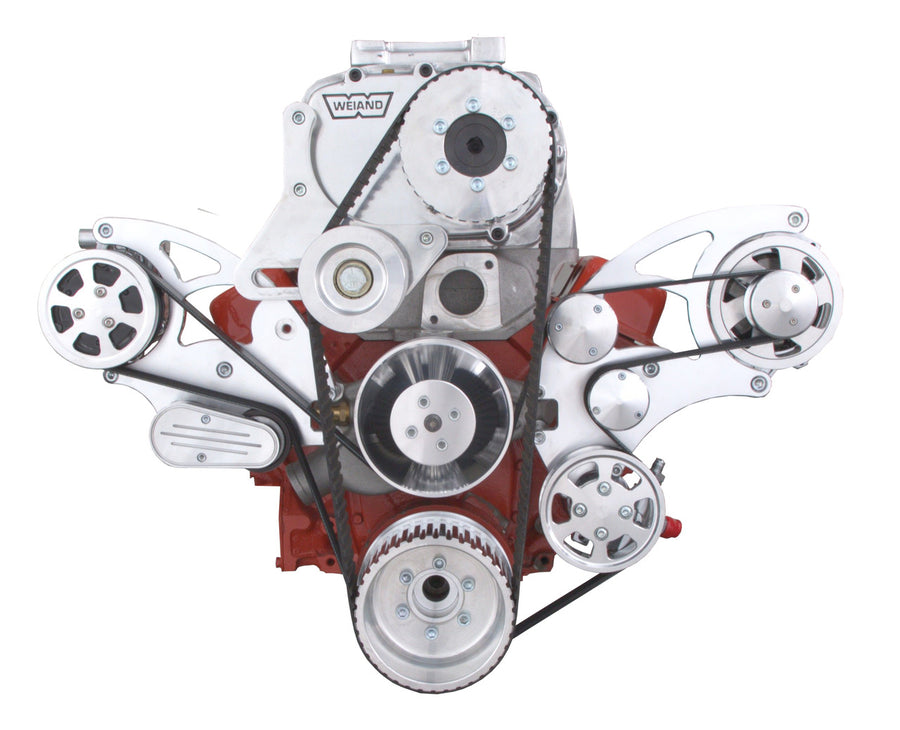

The CVF Racing Wraptor all-inclusive supercharger serpentine system is built for small block Chevy 283, 302, 305, 327, 350 and 400 engines running a 6-71 or 8-71 Roots style blower. It is designed around the standard 6-71/8-71 blower case, and CVF lists it as fitting Weiand, The Blower Shop, Littlefield, Hampton, Dyer's, Speedmaster and Magnuson MOAB Roots style superchargers.
The accessories run on an 8-rib serpentine belt with a spring-loaded tensioner that holds belt tension under hard acceleration and deceleration. The alternator sits on the driver side above the power steering pump. This version uses a high-flow aluminum mechanical water pump and is offered in polished aluminum or C3 ceramic clear coat.
Specifications:
- Engine: small block Chevy 283, 302, 305, 327, 350 and 400
- Blower: 6-71 or 8-71 Roots style
- Belt: 8-rib serpentine (accessories)
- Mounting position: wide mount
- Water pump: high-flow aluminum, mechanical
- Alternator: 1-wire CS130, 160 amp standard (300 amp upgrade offered)
- Power steering: GM Type II pump
- A/C compressor: Peanut style
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Finish: Polished or C3 Clear Coat
- Power steering choices: none (non-power steering applications), GM Type II pump with remote reservoir, GM Type II pump with attached reservoir
- Part number: 350SC-WRAPTOR
Included in Every Configuration:
- High-flow aluminum water pump
- Water pump pulley and cover
- 160 amp 1-wire CS130 alternator
- Premium 8-rib serpentine belt
- Crank pulley
- Alternator pulley and cover
- Two-piece billet aluminum bracket
- Universal alternator fan
- Spring-loaded belt tensioner
Included by Configuration:
- A/C compressor with compressor clutch cover (A/C configurations)
- GM Type II power steering pump and power steering pulley (power steering configurations)
- Remote mount reservoir with bracket (power steering configurations)
Not Included: The blower cog belt and cog pulleys are not included. Power steering lines from the pump to the reservoir are not included.
Application Notes:
- Works with a mechanical or electric fuel pump.
- Works with standard deck engines only; it will not work with tall deck engines.
- Built for a 2.25 in. crankshaft pulley pilot register. Contact CVF Racing before ordering for an engine with a 2 in. pilot.
- The alternator amperage and power steering pump type choices are selected separately when ordering.
- Optional add-ons offered by CVF (attached reservoir styles, power steering line kits and billet thermostat housings) are sold separately and are not part of this kit.
- If ordering without accessories, the alternator must be a GM CS130 style unit with 6 to 12 o'clock mounting and 6.6 in. bolt spacing.
- If ordering without power steering hardware, a GM Type II power steering pump is required.
- If ordering without A/C hardware, a Peanut style (7B10) compressor with an 8-rib clutch is required.
- If supplying a water pump, it must be 5.7 in. tall, reverse rotation, 5/8 in. pilot and lower radiator hose on driver side.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
Race Use Only: This part is intended for off-road and competition use only and is not legal for use on public roads in a pollution-controlled motor vehicle. Under the federal Clean Air Act, it is illegal to remove, alter, or render inoperative any emission control device on a motor vehicle used on public roads. Check federal, state, and local regulations before purchase and installation.
FAQ
What engines and blowers does the CVF Racing 350SC-WRAPTOR fit?
It fits small block Chevy 283, 302, 305, 327, 350 and 400 engines with a 6-71 or 8-71 Roots style blower, including Weiand, The Blower Shop, Littlefield, Hampton, Dyer's, Speedmaster and Magnuson MOAB units per CVF.
What water pump comes with the 350SC-WRAPTOR kit?
This kit includes a high-flow aluminum mechanical water pump.
Are power steering lines included?
No. Power steering lines from the pump to the reservoir are not included.
What accessory configurations are offered for the 350SC-WRAPTOR?
It is offered with A/C, power steering and alternator; power steering and alternator; A/C and alternator; or alternator only.
Does this kit include the blower drive cog belt?
No. CVF states the cog belt and cog pulleys are not included.
