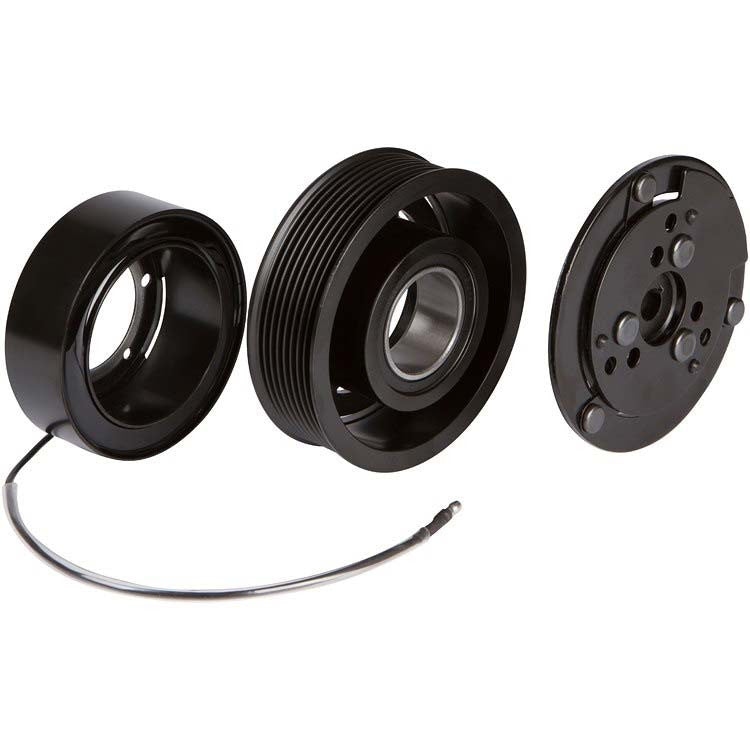

This CVF Racing clutch assembly fits a Sanden style AC compressor with an 8-rib serpentine pulley, letting an existing V-belt or 6-rib compressor run on a CVF 8-rib BEAST pulley system. The clutch is black, runs on 12V DC, and is an imported part covered by the CVF lifetime warranty.
Swapping a compressor clutch is an involved job. CVF generally recommends buying a complete compressor and offers this clutch for installers with above average mechanical skills.
Specifications:
- Type: Sanden style AC compressor clutch
- Pulley: 8-rib serpentine
- Voltage: 12V DC
- Finish: Black
- Origin: Imported
- Warranty: CVF lifetime warranty
- Part number: SANDEN-CLUTCH-8RIB
Application Notes:
- Installing this clutch may void the original warranty on the compressor it is installed on.
- Tools needed at minimum, per CVF: impact wrench, hydraulic press, snap ring pliers, shim stock, and feeler gauges to set the clutch gap.
FAQ
What is the SANDEN-CLUTCH-8RIB used for?
It converts a V-belt or 6-rib Sanden style AC compressor so it can run on an 8-rib BEAST pulley system.
What tools are needed to install this clutch?
CVF lists an impact wrench, hydraulic press, snap ring pliers, shim stock, and feeler gauges as the minimum tools needed to install it and set the clutch gap.
Will installing the clutch affect the compressor warranty?
It may. CVF notes that removing and installing a compressor clutch may void the original warranty on that compressor.
Should a complete compressor be considered instead?
CVF generally recommends a complete compressor and offers this clutch for customers with above average mechanical ability.
