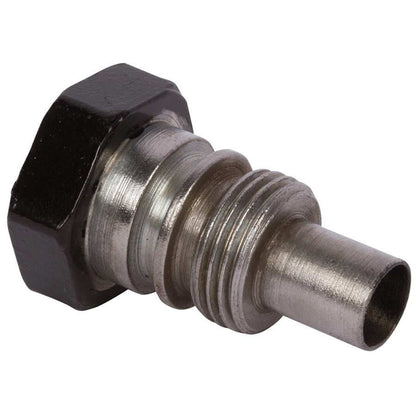

This adapter lets a Saginaw power steering pump, which has a female 3/8 in. inverted flare port at the back, accept a factory Ford high pressure hose that ends in a male hose end.
It suits Saginaw pumps with the 3/8 in. inverted flare port, which CVF says includes CVF Racing pumps, 1975 to 1979 pumps and many aftermarket pumps.
Specifications:
- Component: Pressure line adapter
- Pump side: Saginaw 3/8 in. inverted flare
- Hose side: Ford factory high pressure hose with male hose end
- Part number: SAGINAW-FORD-ADAPTER-M
Kit Includes:
- One Saginaw to Ford pressure line adapter
Application Notes:
- Not for Saginaw P series pumps with metric 16 mm x 1.5 O-ring fittings. CVF notes 1980 to 1996 OEM pumps are metric.
FAQ
How is the SAGINAW-FORD-ADAPTER-M different?
It is for Ford high pressure hoses that end in a male hose end.
Which Saginaw pumps does it work with?
Pumps with the 3/8 in. inverted flare port, including CVF Racing pumps, 1975 to 1979 pumps and many aftermarket pumps, according to CVF.
Will it fit a metric Saginaw pump?
No. Pumps with 16 mm x 1.5 O-ring fittings, such as 1980 to 1996 OEM pumps, are not compatible.
