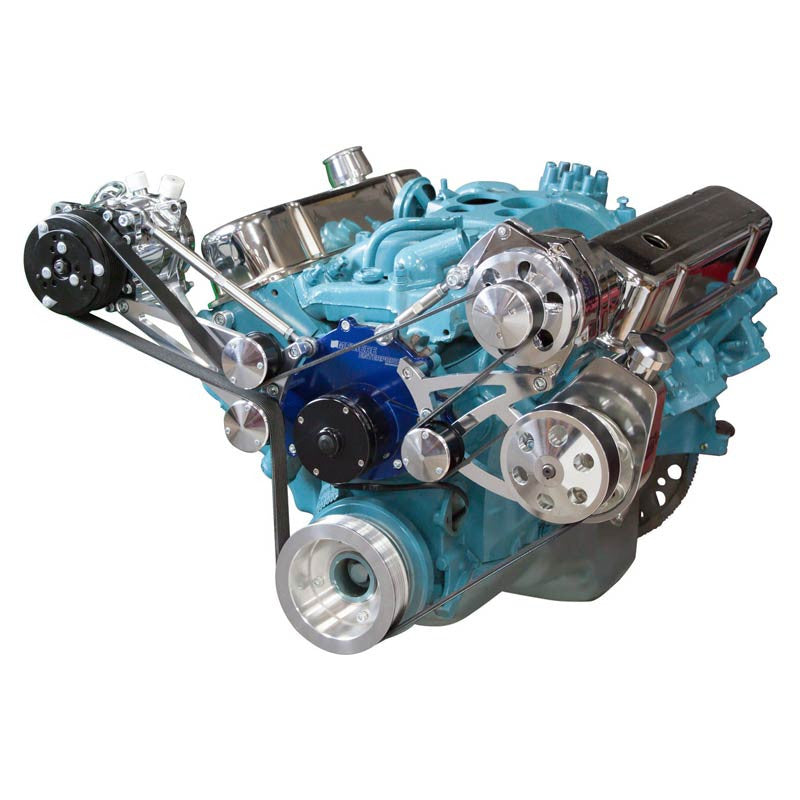

This CVF Racing kit converts a Pontiac 350, 400, 428 or 455 V8 to an 8-rib serpentine belt drive for the alternator, power steering pump and A/C compressor on an engine that uses an electric water pump. It supplies the billet pulleys, brackets and alternator fan, with a polished finish, while the accessories themselves are supplied by the buyer or added separately.
The power steering pulley is offered for either a 5/8 in. keyway shaft or a 3/4 in. press fit shaft, and the kit can be ordered with or without the serpentine belt.
Specifications:
- Engines: Pontiac 350, 400, 428 and 455 V8
- Belt type: 8-rib serpentine
- Accessories driven: A/C, power steering and alternator
- Alternator position: High, driver side
- Power steering pump: Saginaw (5/8 in. keyway or 3/4 in. press fit pulley, selected when ordering)
- Water pump type: Electric (not included)
- A/C position: High, passenger side; Sanden 508-style compressor
- Finish: Polished
- Part number: PONT-SERPENTINE-AC-EWP
Kit Includes:
- 8-rib crankshaft pulley
- 8-rib alternator pulley
- 8-rib power steering pulley for the selected shaft (5/8 in. keyway or 3/4 in. press fit)
- Three idler pulleys
- Power steering and alternator bracket
- Sanden A/C compressor bracket
- ALTFAN universal alternator fan
Not Included: The alternator, Saginaw power steering pump and A/C compressor and electric water pump are not included.
Application Notes:
- Requires a harmonic balancer with a 4-bolt pulley pattern.
- Built for engines running an electric water pump.
- Requires a Saginaw power steering pump with the mounting stud in the lower right corner on the back of the pump.
- Both GM and Pontiac power steering reservoir orientations will work.
- The A/C bracket is designed for a Sanden 508-style compressor.
- Belts can be included or left out; this choice is made when ordering.
- CVF offers alternators, a Saginaw power steering pump, a Sanden-style A/C compressor and billet thermostat housings as separate add-ons; they are not part of this listing.
Vehicle Applications (with the original 350, 400, 428 or 455 V8 installed):
- 1969 Pontiac GTO
- 1970 Pontiac GTO
- 1971 Pontiac GTO
- 1972 Pontiac GTO
- 1973 Pontiac GTO
- 1974 Pontiac GTO
- 1969 Pontiac Grand Prix
- 1970 Pontiac Grand Prix
- 1971 Pontiac Grand Prix
- 1972 Pontiac Grand Prix
- 1973 Pontiac Grand Prix
- 1974 Pontiac Grand Prix
- 1975 Pontiac Grand Prix
- 1976 Pontiac Grand Prix
- 1977 Pontiac Grand Prix
- 1969 Pontiac LeMans
- 1970 Pontiac LeMans
- 1971 Pontiac LeMans
- 1972 Pontiac LeMans
- 1973 Pontiac LeMans
- 1974 Pontiac LeMans
- 1975 Pontiac LeMans
- 1976 Pontiac LeMans
- 1977 Pontiac LeMans
- 1978 Pontiac LeMans
- 1979 Pontiac LeMans
- 1980 Pontiac LeMans
- 1981 Pontiac LeMans
- 1969 Pontiac Bonneville
- 1970 Pontiac Bonneville
- 1971 Pontiac Bonneville
- 1972 Pontiac Bonneville
- 1973 Pontiac Bonneville
- 1974 Pontiac Bonneville
- 1975 Pontiac Bonneville
- 1976 Pontiac Bonneville
- 1969 Pontiac Firebird
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1969 Pontiac Trans Am
- 1970 Pontiac Trans Am
- 1971 Pontiac Trans Am
- 1972 Pontiac Trans Am
- 1973 Pontiac Trans Am
- 1974 Pontiac Trans Am
- 1975 Pontiac Trans Am
- 1976 Pontiac Trans Am
- 1969 Pontiac Catalina
- 1970 Pontiac Catalina
- 1971 Pontiac Catalina
- 1972 Pontiac Catalina
- 1973 Pontiac Catalina
- 1974 Pontiac Catalina
- 1975 Pontiac Catalina
- 1976 Pontiac Catalina
- 1977 Pontiac Catalina
- 1978 Pontiac Catalina
- 1979 Pontiac Catalina
- 1980 Pontiac Catalina
- 1981 Pontiac Catalina
- 1978 Pontiac Grand Am
- 1979 Pontiac Grand Am
- 1980 Pontiac Grand Am
- 1969 Pontiac Tempest
- 1970 Pontiac Tempest
- 1969 Pontiac Ventura
- 1970 Pontiac Ventura
- 1971 Pontiac Ventura
- 1972 Pontiac Ventura
- 1973 Pontiac Ventura
- 1974 Pontiac Ventura
- 1975 Pontiac Ventura
- 1976 Pontiac Ventura
- 1977 Pontiac Ventura
Additional Application Note: CVF notes that this list is not complete and that many of these vehicles have had the original engine swapped, so confirm the engine, water pump and balancer on the vehicle rather than selecting by model and year alone. CVF also notes that 1969 was a transition year, so confirm the engine has the taller 4.5 in. water pump.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does the CVF Racing PONT-SERPENTINE-AC-EWP fit?
It is designed for Pontiac 350, 400, 428 and 455 V8 engines.
Does the PONT-SERPENTINE-AC-EWP include the accessories?
The alternator, Saginaw power steering pump and A/C compressor and electric water pump are not included. The kit supplies the pulleys, brackets and alternator fan.
What balancer is required?
The kit requires a harmonic balancer with a 4-bolt pulley pattern.
Which power steering pump does this kit use?
It uses a Saginaw power steering pump with the mounting stud in the lower right corner on the back of the pump; the pulley is offered for a 5/8 in. keyway or 3/4 in. press fit shaft.
Is the electric water pump included?
No. This version is built for an electric water pump, which is not included.
