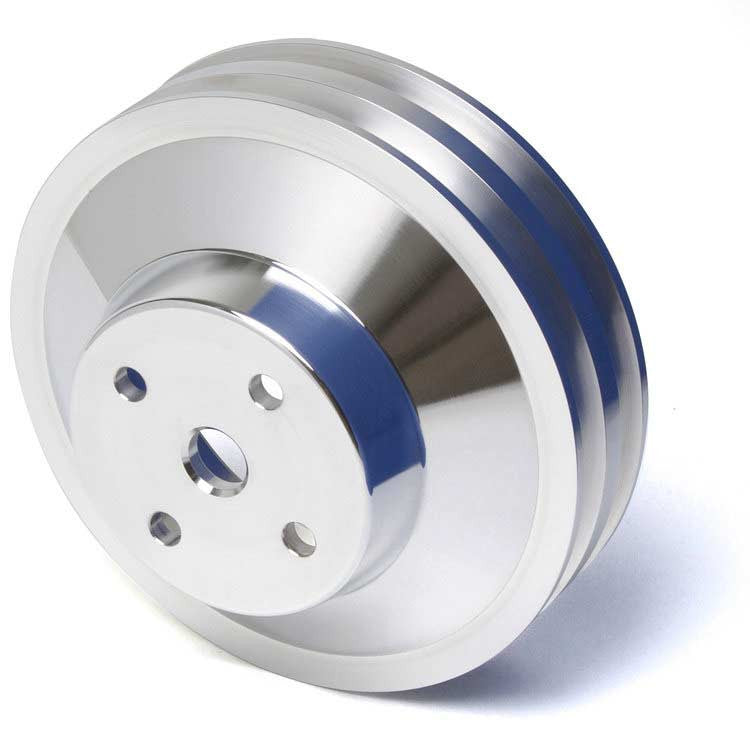

This CVF Racing billet aluminum 2-groove V-belt water pump pulley is for 1969 1/2 to 1970 Pontiac 350, 400, 428 and 455 V8 engines that use the factory 1969 or 1970 power steering and alternator brackets. It does not fit CVF Racing brackets.
Specifications:
- Diameter: 6.2 in.
- Overall length: 2.95 in.
- Grooves: 2
- Bolt pattern: 4 bolt
- Bolt circle: 2.12 in.
- Pilot diameter: 0.625 in.
- Water pump: 1969 1/2 or newer, 4.5 in. from flange to block
- Damper: 1968 or newer
- Brackets: Factory 1969 or 1970 only
- Belt type: V-belt
- Material: Billet aluminum
- Finish: Polished
- Part number: PONT2WP-S
Application Notes:
- Designed for factory 1969 or 1970 power steering and alternator brackets.
- Will not fit CVF Racing brackets or brackets from other model year engines.
Vehicle Applications (with the original 350, 400, 428 or 455 V8 installed):
- 1969 Pontiac GTO
- 1970 Pontiac GTO
- 1969 Pontiac Grand Prix
- 1970 Pontiac Grand Prix
- 1969 Pontiac LeMans
- 1970 Pontiac LeMans
- 1969 Pontiac Bonneville
- 1970 Pontiac Bonneville
- 1969 Pontiac Firebird
- 1970 Pontiac Firebird
- 1969 Pontiac Trans Am
- 1970 Pontiac Trans Am
- 1969 Pontiac Catalina
- 1970 Pontiac Catalina
- 1969 Pontiac Tempest
- 1970 Pontiac Tempest
- 1969 Pontiac Ventura
- 1970 Pontiac Ventura
Additional Application Note: CVF notes that this list is not complete and that many of these vehicles have had the original engine swapped, so confirm the engine, water pump and balancer on the vehicle rather than selecting by model and year alone.
FAQ
Will the CVF Racing PONT2WP-S fit CVF Racing brackets?
No. It is made for factory 1969 or 1970 brackets only and will not fit CVF Racing brackets or brackets from other model years.
What water pump does it fit?
It fits a 1969 1/2 or newer water pump that is 4.5 in. from flange to block, on an engine with a 1968 or newer damper.
What is the pulley diameter?
The pulley is 6.2 in. in diameter with a 2.95 in. overall length.
