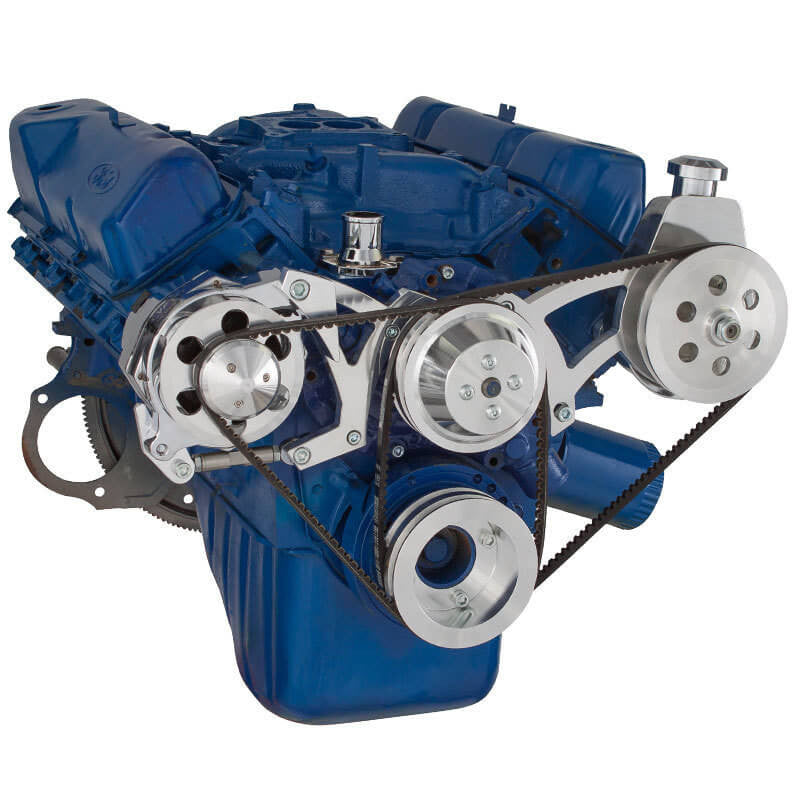

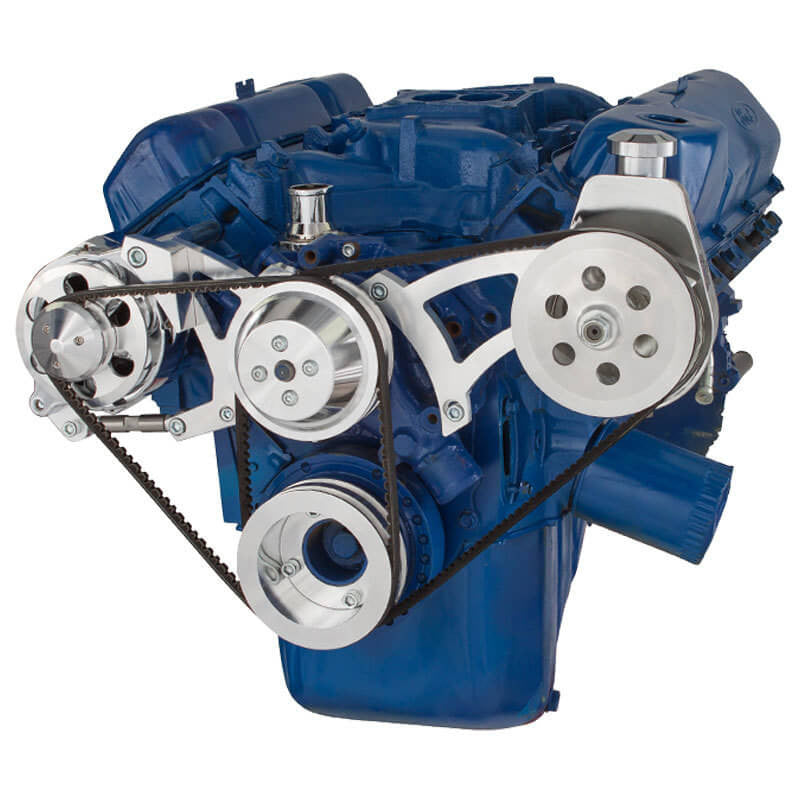

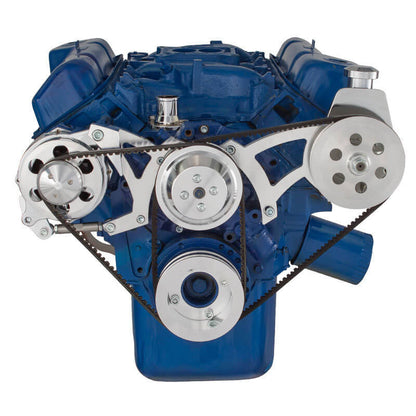

CVF Racing's polished V-belt system adds an alternator and Saginaw power steering pump to a Ford 351 Cleveland, 351M or 400. The 2 groove water pump and crank pulleys run separate belts to the two accessories.
It is offered in an underdrive or high flow pulley ratio, with a 5/8 inch keyway or 3/4 inch press fit power steering pulley, and for either the 351C or the 351M and 400.
Specifications:
- Engine: Ford 351 Cleveland, 351M and 400
- Engine selection: 351C (Cleveland), or 351M and 400
- Pulley ratio: Underdrive or high flow (selected when ordering)
- Power steering pulley: 5/8 inch keyway shaft or 3/4 inch press fit shaft (selected when ordering)
- Belt type: V-belt
- Water pump type: Mechanical, 351C style, standard rotation
- Alternator position: Mid mount, passenger side
- Power steering: Saginaw
- Air conditioning: None
- Finish: Polished
- Part number: 351C-PS-SYSTEM
Kit Includes:
- 2 groove water pump pulley
- 2 groove crank pulley
- 1 groove alternator pulley
- Alternator bracket
- Power steering bracket
- Power steering pulley (keyway or press fit, per selection)
- ALTFAN universal alternator fan
Not Included: Saginaw power steering pump is not included. An alternator is not listed in the kit contents.
Application Notes:
- Requires a Saginaw power steering pump with a mounting stud in the lower right corner on the back of the pump.
- Will not work with factory A/C brackets.
- Alternator, power steering pump, water pump and billet thermostat housing are offered by CVF as separate add-ons.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does this system fit?
It is offered for the Ford 351 Cleveland and for the 351M and 400.
Is the power steering pump included?
No. A Saginaw pump with a mounting stud in the lower right corner on the back is required and sold separately.
Can I keep my factory A/C bracket?
No. CVF states this system will not work with factory A/C brackets.
What choices are available?
The system is offered in underdrive or high flow ratio, with a keyway or press fit power steering pulley, and for 351C or 351M and 400 engines.
