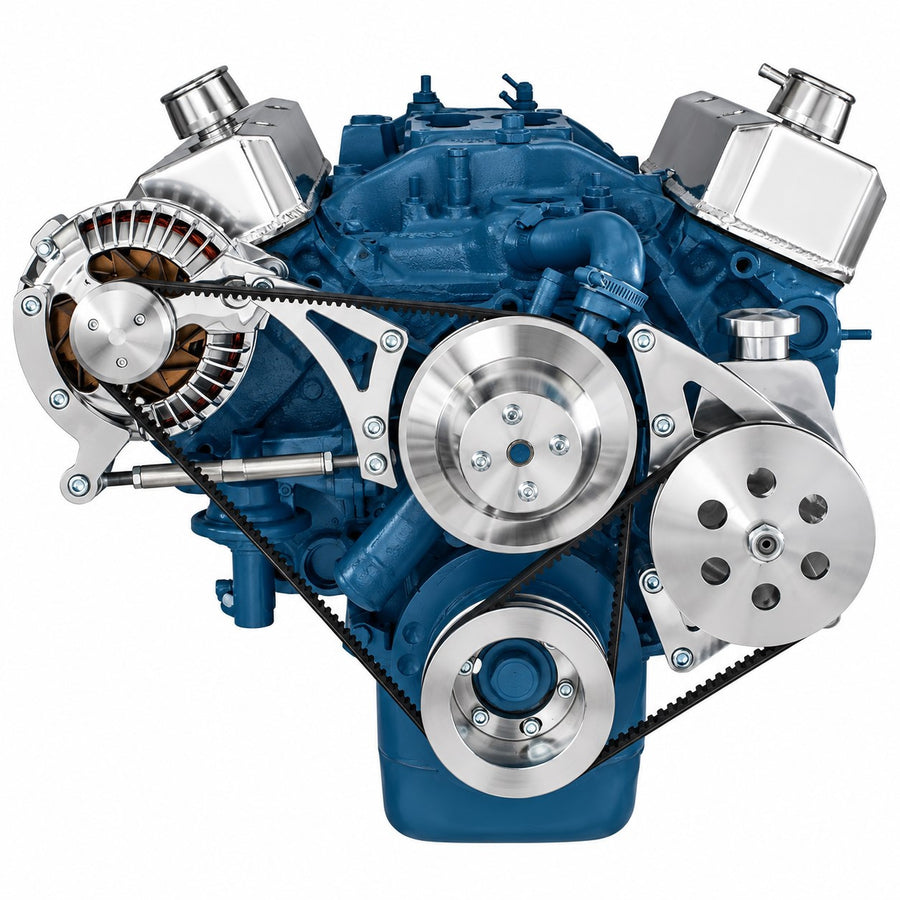

This CVF Racing V-belt system supplies the pulleys and brackets for a Chrysler small block 318, 340 or 360 (LA style) running an alternator and power steering. It uses a 2-groove crankshaft pulley, 1-groove water pump and alternator pulleys, an SCR3PS keyway power steering pulley, and alternator and power steering brackets.
The alternator bracket is supplied for a Chrysler or a GM style alternator; the GM version adds an alternator fan. The system is also offered in an Underdrive or High Flow (HF) pulley ratio. Finish is polished.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories driven: Alternator, power steering
- Crankshaft pulley: 2 groove
- Water pump pulley: 1 groove
- Alternator pulley: 1 groove
- Alternator position: Mid, passenger side
- Power steering pump: Saginaw P-Series, 5/8" keyway
- Alternator options: Chrysler (round or square back) or GM 10SI style
- Pulley ratio options: Underdrive or High Flow (HF)
- Water pump to balancer: 4.5"
- Engine: Chrysler small block 318, 340 and 360, LA style
- Finish: Polished
- Part number: 360-PS-SYSTEM
Kit Includes:
- Crankshaft pulley, 2 groove
- Water pump pulley, 1 groove
- Alternator pulley, 1 groove
- Alternator bracket for GM or Chrysler alternator (per selection)
- Power steering bracket
- SCR3PS keyway power steering pulley
- Alternator fan (GM alternator version only)
Not Included: The alternator, power steering pump and water pump are not included. CVF offers them, along with a billet thermostat housing, as separate add-ons.
Application Notes:
- Works with a Chrysler square back or round back alternator, a GM 10SI alternator or a GM CS130 alternator.
- Water pump to balancer measurement: 4.5".
- Fits LA style small blocks only; it will not work with 318 or 360 Magnum engines.
- Requires a 1970 or later Chrysler water pump or a CVF water pump.
- Requires a Saginaw P-Series power steering pump with a 5/8" keyway shaft and the mounting stud in the lower right corner on the back of the pump. The pump is not included.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is included in this alternator and power steering system?
It includes a 2-groove crankshaft pulley, 1-groove water pump and alternator pulleys, an SCR3PS keyway power steering pulley, an alternator bracket, a power steering bracket and, with the GM version, an alternator fan.
What power steering pump does it require?
It requires a Saginaw P-Series pump with a 5/8" keyway shaft and the mounting stud in the lower right corner on the back. The pump is sold separately.
Which alternators does it accept?
It works with Chrysler square back or round back alternators and with GM 10SI or CS130 alternators.
Does it fit 318 or 360 Magnum engines?
No. CVF states it fits LA style small blocks only.
What options are offered?
CVF offers the system for a Chrysler or GM 10SI style alternator and in an Underdrive or High Flow (HF) pulley ratio.
