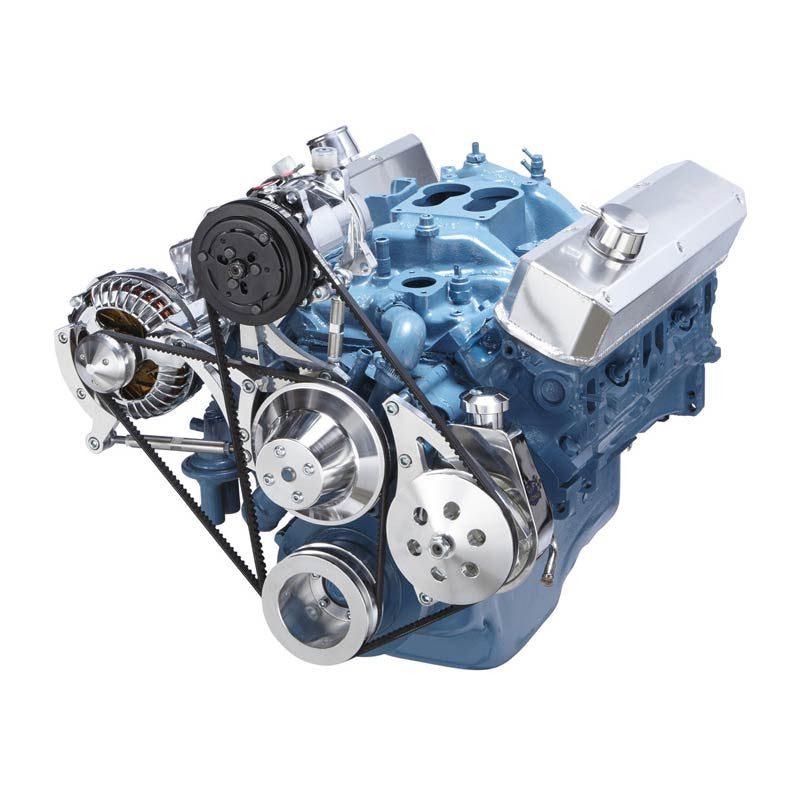

This CVF Racing system packages the pulleys and brackets needed to run an alternator, power steering and air conditioning on a Chrysler small block 318, 340 or 360 (LA style) with a V-belt drive. It combines a 2-groove crankshaft pulley with 1-groove water pump and power steering pulleys, plus power steering and A/C compressor brackets.
The alternator bracket is supplied for either a Chrysler or a GM style alternator. When the GM version is chosen, an alternator fan is included; Chrysler alternators rely on their internal fan. The system is also offered in an Underdrive or High Flow (HF) pulley ratio. Finish is polished.
Specifications:
- System type: V-belt pulley and bracket system
- Accessories driven: Alternator, power steering, A/C
- Crankshaft pulley: 2 groove
- Water pump pulley: 1 groove
- Power steering pulley: 1 groove
- Alternator position: Mid, passenger side
- A/C position: High, passenger side
- Compressor type: Sanden 508 style
- Power steering pump: Saginaw P-Series, 5/8" keyway
- Alternator options: Chrysler (round or square back) or GM 10SI style
- Pulley ratio options: Underdrive or High Flow (HF)

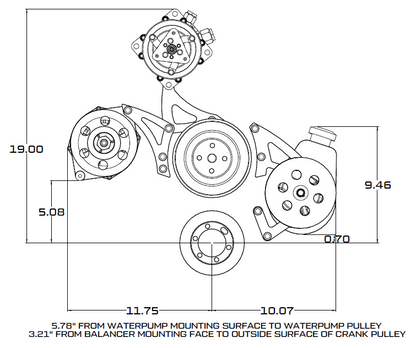

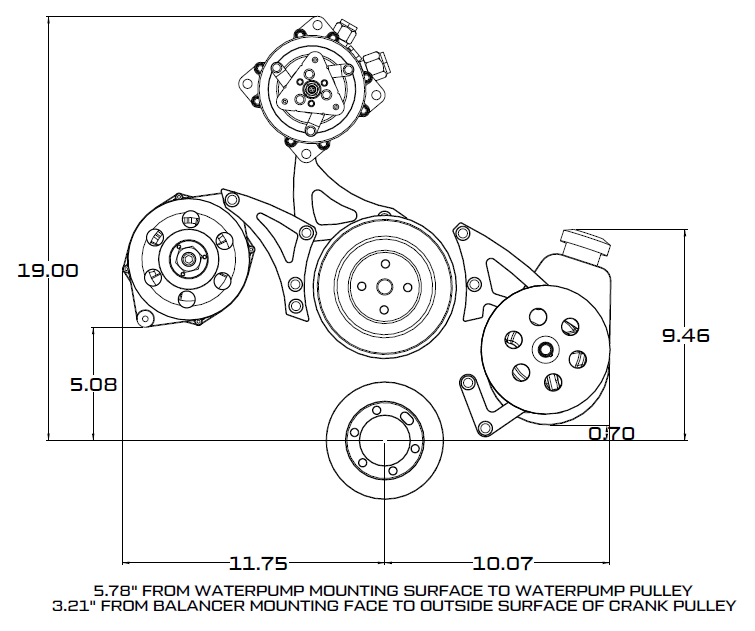

- Water pump to balancer: 4.5"
- Engine: Chrysler small block 318, 340 and 360, LA style
- Finish: Polished
- Part number: 360-AC-SYSTEM
Kit Includes:
- Crankshaft pulley, 2 groove
- Water pump pulley, 1 groove
- Power steering pulley, 1 groove
- Alternator bracket for Chrysler or GM alternator (per selection)
- Power steering bracket
- A/C compressor bracket
- Alternator fan (GM alternator version only)
Not Included: The alternator, power steering pump, A/C compressor and water pump are not included. CVF offers them, along with a billet thermostat housing, as separate add-ons.
Application Notes:
- Works with a Chrysler square back or round back alternator, a GM 10SI alternator or a GM CS130 alternator.
- Compatible with Hydro-boost.
- Water pump to balancer measurement: 4.5".
- Fits LA style small blocks only; it will not work with 318 or 360 Magnum engines.
- Requires a 1970 or later Chrysler water pump or a CVF water pump.
- Uses a Sanden 508 style A/C compressor.
- Requires a Saginaw P-Series power steering pump with a 5/8" keyway shaft and the mounting stud in the lower right corner on the back of the pump. The pump is not included.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this V-belt system include?
It includes a 2-groove crankshaft pulley, a 1-groove water pump pulley, a 1-groove power steering pulley, an alternator bracket for the selected alternator type, a power steering bracket and an A/C compressor bracket. An alternator fan is added when the GM alternator version is chosen.
Which alternators does it work with?
It works with Chrysler square back or round back alternators and with GM 10SI or CS130 alternators. The alternator itself is not included.
What power steering pump and compressor are required?
It uses a Saginaw P-Series pump with a 5/8" keyway shaft and lower right mounting stud, plus a Sanden 508 style compressor. Neither is included.
Will it fit a Magnum 318 or 360?
No. CVF states this system fits LA style small blocks only and will not work with Magnum engines.
What choices are offered?
The system is offered for a Chrysler or GM 10SI style alternator and in an Underdrive or High Flow (HF) pulley ratio.
