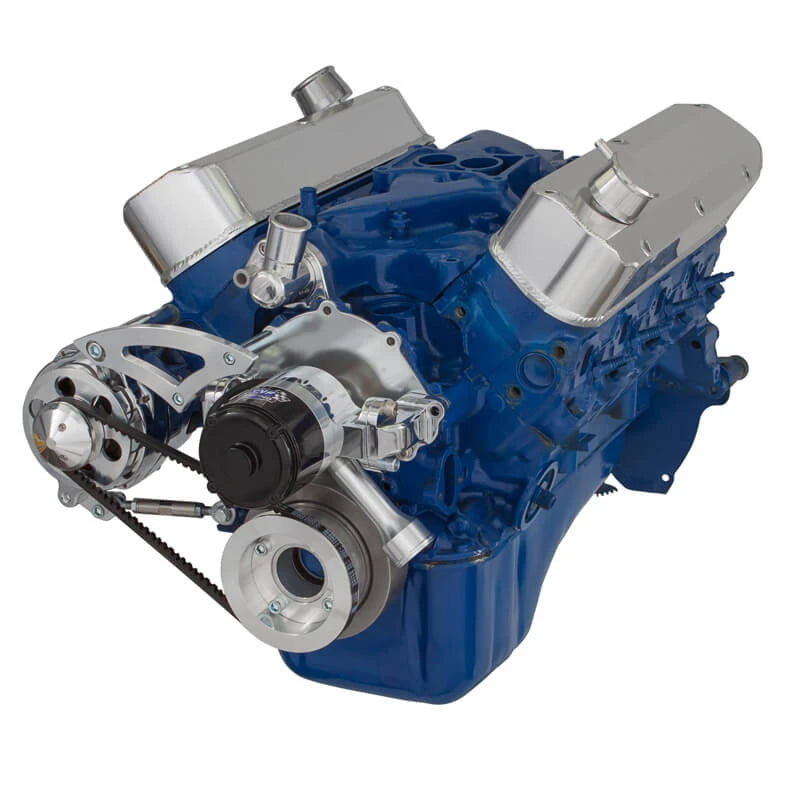

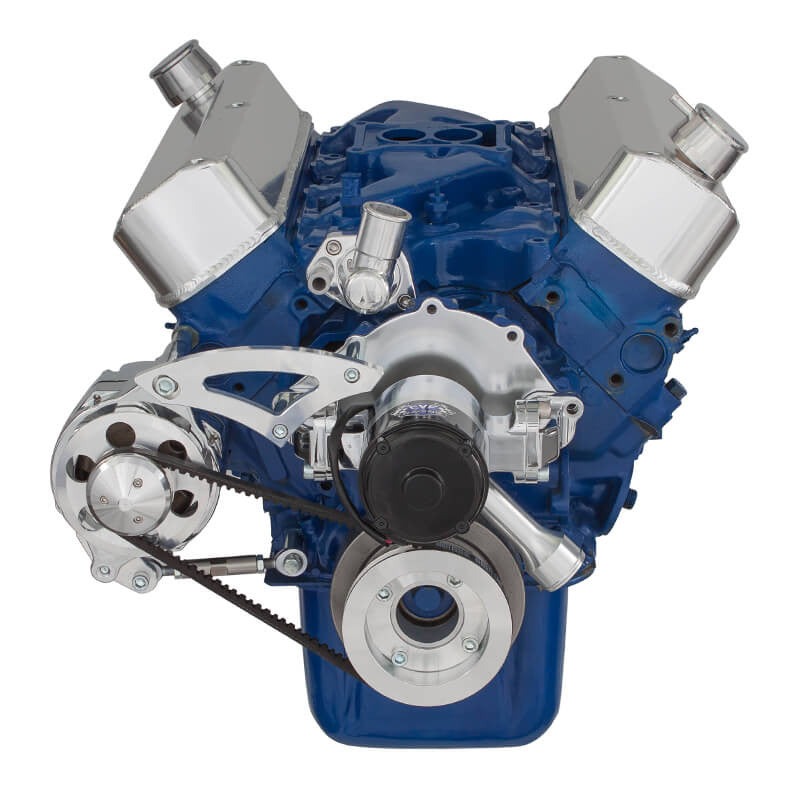

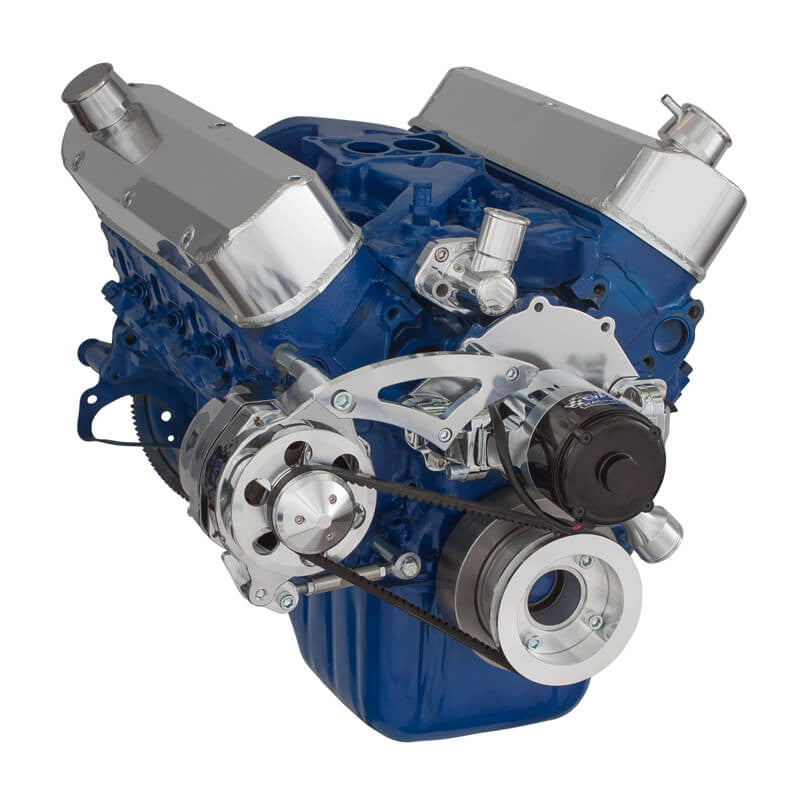

This CVF Racing V-belt system drives only the alternator on a Ford 289, 302 or 351W small block running an electric water pump. Because there is no belt driven water pump, the kit uses just a crank pulley, an alternator pulley and a billet aluminum alternator bracket.
It is offered for 289 and 302 or 351W engines and for 3 bolt or 4 bolt factory and aftermarket dampers. The alternator mounts mid height on the passenger side.
Specifications:
- Belt type: V-belt
- Accessories: Alternator only
- Water pump type: Electric (not included)
- Alternator position: Mid mount, passenger side
- Pulleys: 1 groove crank and 1 groove alternator
- Bracket material: Billet aluminum
- Engine options: 289/302 or 351W
- Damper options: 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, or 3 and 4 bolt aftermarket
- Finish: Polished
- Part number: 302-ALT-SYSTEM-EWP
Kit Includes:
- 1 groove crank pulley
- 1 groove alternator pulley
- Billet aluminum alternator bracket
- ALTFAN universal alternator fan
Not Included: The water pump, alternator and damper are not included.
Application Notes:
- Designed for engines using an electric water pump.
- CVF offers a billet thermostat housing separately.
Additional Application Note: CVF lists this system for Ford 289, 302 and 351W small block engines and does not name specific vehicles.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What is the CVF Racing 302-ALT-SYSTEM-EWP for?
It is an alternator only V-belt drive for a Ford 289, 302 or 351W small block that uses an electric water pump.
What comes in the kit?
The kit includes a 1 groove crank pulley, a 1 groove alternator pulley, a billet aluminum alternator bracket and an ALTFAN universal alternator fan.
Are the water pump and alternator included?
No. The electric water pump, alternator and damper are purchased separately.
Which dampers does it work with?
It is offered for 4 bolt factory, 3 bolt factory, 4 bolt aftermarket, and 3 and 4 bolt aftermarket dampers.
