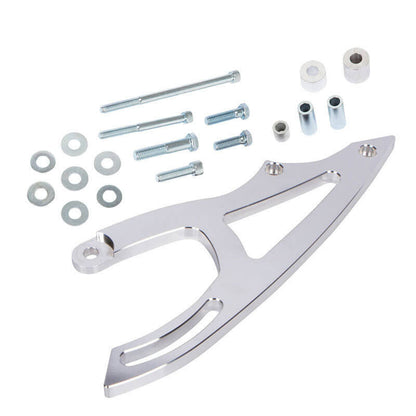

This CVF Racing bracket mounts a GM Saginaw power steering pump mid height on the driver's side of a Ford small block running an electric water pump. It is designed for V-belt drives.
CVF pairs it with crank pulley SBFS2CR for 4 bolt dampers or SBFE2CR for 3 bolt dampers, and with keyway power steering pulley PONT1PS.
Specifications:
- Product type: Power steering bracket
- Pump: GM Saginaw (not included)
- Pump position: Mid mount, driver's side
- Water pump type: Electric
- Belt type: V-belt
- Finish: Polished
- Engine: Ford 289, 302 and 351W small block
- Part number: 302-PSBRKT-EWP
Kit Includes:
- One power steering bracket
Not Included: The pump and pulleys are sold separately.
Application Notes:
- Matching CVF pulleys: SBFS2CR (4 bolt) or SBFE2CR (3 bolt) crank pulley and PONT1PS keyway power steering pulley.
Additional Application Note: CVF lists this for 289 and 302 engines in 1964 to 1969 Ford passenger cars and 1964 to 1976 Ford trucks. CVF does not name specific models, so confirm the water pump style and accessory layout before ordering.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What pump does the CVF Racing 302-PSBRKT-EWP mount?
It mounts a GM Saginaw power steering pump on the driver's side.
Is it meant for an electric water pump?
Yes. This bracket is designed for Ford small blocks that use an electric water pump with a V-belt drive.
Which pulleys go with it?
CVF lists SBFS2CR or SBFE2CR crank pulleys and the PONT1PS keyway power steering pulley.
Is the pump included?
No. The listing is for the bracket only.
