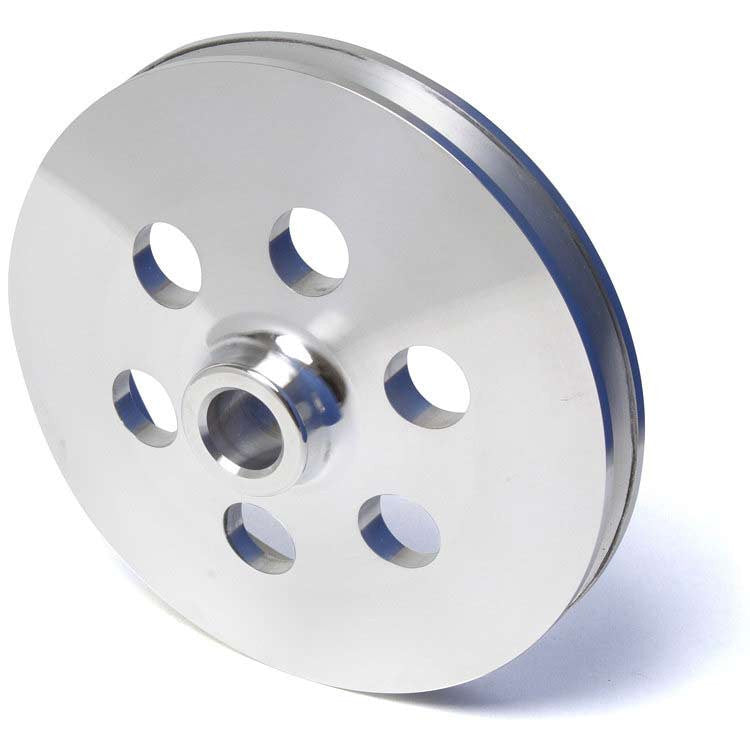

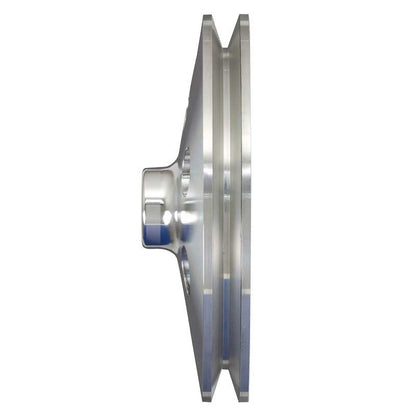

This polished billet aluminum V-belt pulley fits Chrysler (Mopar) small block engines, with CVF naming the 318, 340 and 360. It presses onto a pump with a 3/4 in. press fit shaft.
CVF designed it to work with either OEM power steering brackets or CVF Racing brackets.
Specifications:
- Material: Billet aluminum
- Belt type: V-belt
- Grooves: 1
- Diameter: 5.9 in.
- Overall length: 1.6 in.
- Offset: 1.25 in. (front of pulley to center of V-groove)
- Offset: 0.27 in. toward engine (mounting surface to center of V-groove)
- Shaft: 3/4 in. press fit
- Engine: Chrysler small block 318, 340 and 360
- Bracket: OEM or CVF Racing power steering bracket
- Finish: Polished
- Part number: SCR1PS
Kit Includes:
- One power steering pulley
Application Notes:
- Works with OEM or CVF Racing power steering brackets, per CVF.
Additional Application Note: CVF lists this pulley for 1970 and later Dodge and Chrysler passenger cars and trucks with 318, 340 or 360 small block engines. CVF does not name specific models.
FAQ
Does the SCR1PS need a CVF bracket?
No. CVF designed it to work with either OEM or CVF Racing power steering brackets.
What are the pulley dimensions?
CVF lists a 5.9 in. diameter, 1.6 in. overall length and 1.25 in. offset measured from the front of the pulley to the center of the V-groove.
What belt does it use?
It is a single groove pulley for a V-belt.
What pump shaft does it fit?
It fits a 3/4 in. press fit pump shaft.
