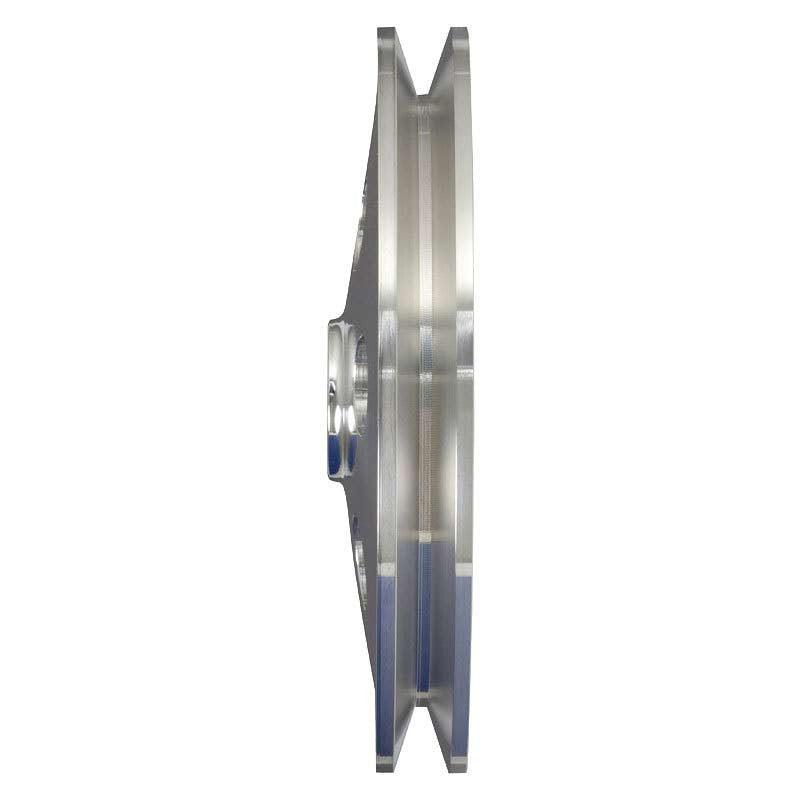

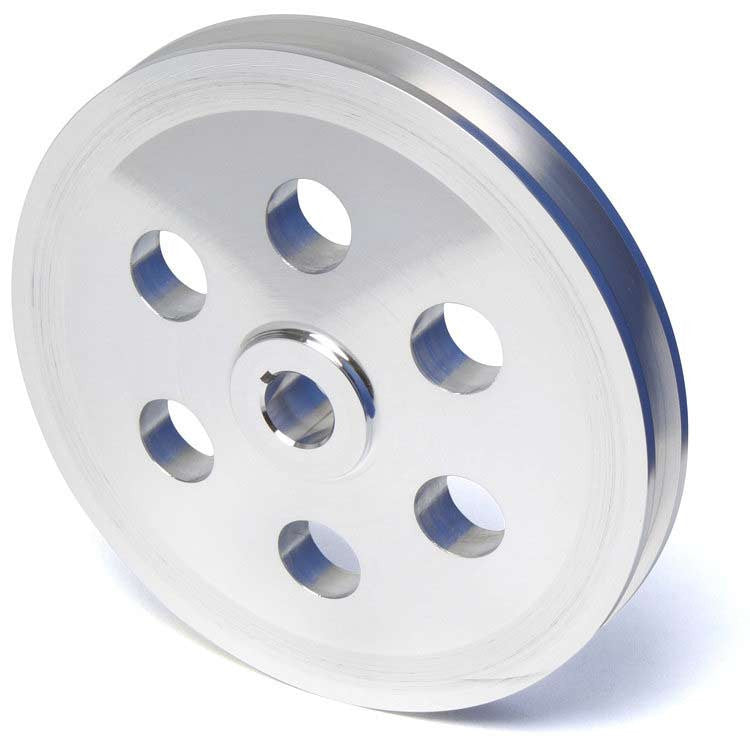

This polished billet aluminum power steering pulley from CVF Racing is designed for Chrysler big block engines (383, 400 and Hemi) that use a power steering pump with a 5/8 inch keyway shaft and the factory brackets.
It is not meant for CVF's 440-PSBRKT bracket. CVF directs owners using that bracket to its BCR3PS pulley instead.
Specifications:
- Finish: Polished
- Material: Billet aluminum
- Belt type: V-belt
- Grooves: 1
- Overall length: 0.95"
- Offset, front of pulley to groove center: 0.58"
- Offset, mounting surface to groove center: 0.17"
- Shaft: 5/8" keyway
- Engines: Chrysler big block 383, 400 and Hemi
- Part number: BCR2PS
Application Notes:
- For keyway shaft pumps on OEM brackets.
- Not for use with CVF bracket 440-PSBRKT; CVF specifies BCR3PS for that bracket.
Additional Application Note: CVF lists 1959 to 1979 Dodge and Chrysler passenger cars and trucks with a keyway power steering pump and OEM brackets. No individual models are named.
FAQ
Which pump shaft does the CVF Racing BCR2PS pulley fit?
It fits a power steering pump with a 5/8 inch keyway shaft.
Can I use this pulley with the CVF 440-PSBRKT bracket?
No. CVF specifies its BCR3PS pulley for the 440-PSBRKT bracket; this one is for factory brackets.
What are the offset measurements?
The groove center sits 0.58 inches from the front of the pulley and 0.17 inches from the mounting surface, with an overall length of 0.95 inches.
What engines is it for?
It is made for Chrysler big block 383, 400 and Hemi engines with a keyway power steering pump.
