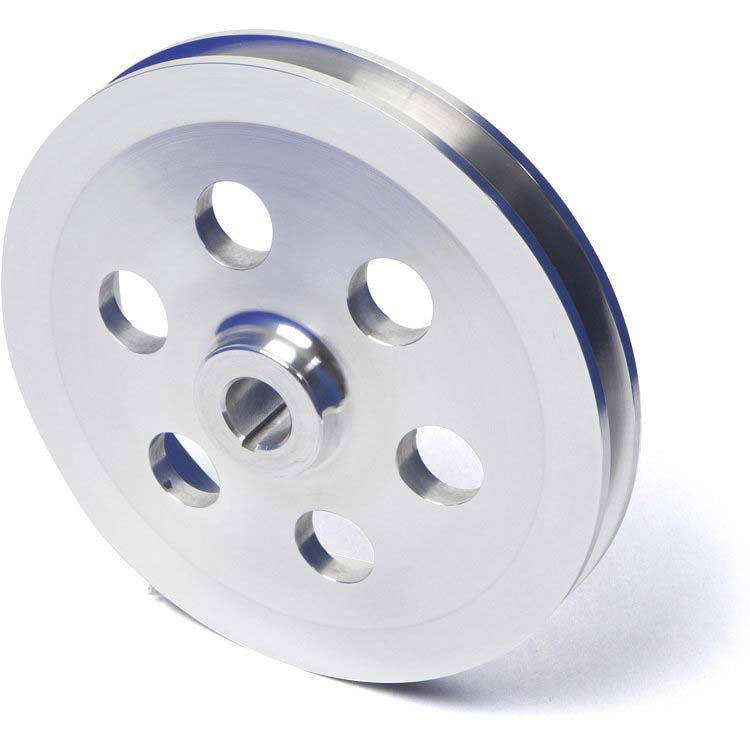

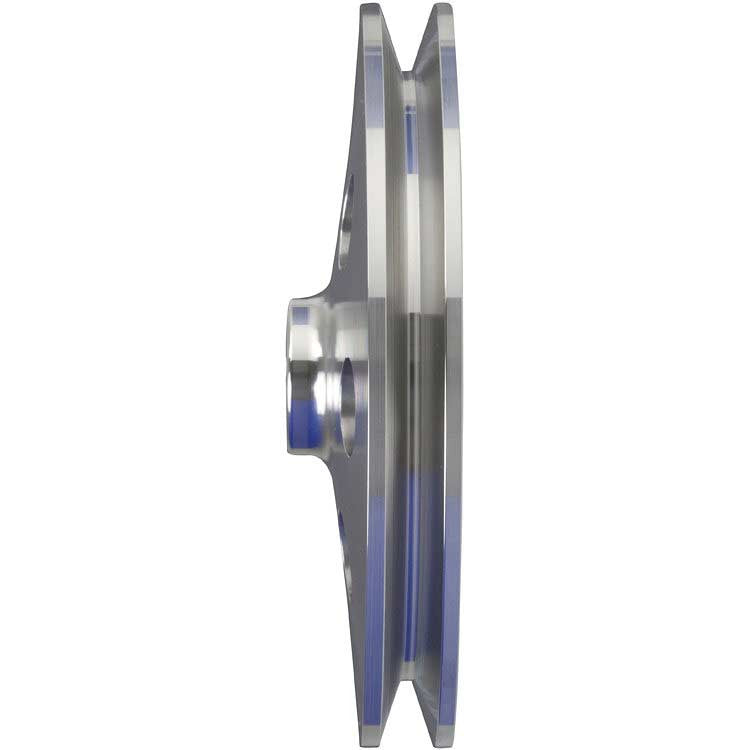

This polished billet aluminum V-belt pulley mounts on a Saginaw power steering pump with a 5/8 in. keyway shaft. CVF designed it to work with its Ford 351C power steering brackets.
It has one V-groove and is part of the CVF Chevy and Ford Saginaw pulley range.
Specifications:
- Material: Billet aluminum
- Belt type: V-belt
- Grooves: 1
- Diameter: 5.8 in.
- Overall length: 1.3 in.
- Offset: 0.92 in. (front of pulley to center of V-groove)
- Offset: 0.53 in. (mounting surface to center of V-groove)
- Shaft: 5/8 in. keyway
- Pump: Saginaw
- Finish: Polished
- Part number: SBC2PS
Kit Includes:
- One power steering pulley
Application Notes:
- Designed by CVF for its Ford 351C power steering brackets.
- Requires a Saginaw pump with a 5/8 in. keyway shaft.
FAQ
Which brackets is the SBC2PS made for?
CVF designed it for its Ford 351C power steering brackets.
What are the pulley dimensions?
CVF lists a 5.8 in. diameter, 1.3 in. overall length and 0.92 in. offset measured from the front of the pulley to the center of the V-groove.
What belt does it use?
It is a single groove pulley for a V-belt.
What pump shaft does it fit?
It fits a 5/8 in. keyway shaft on a Saginaw power steering pump.
