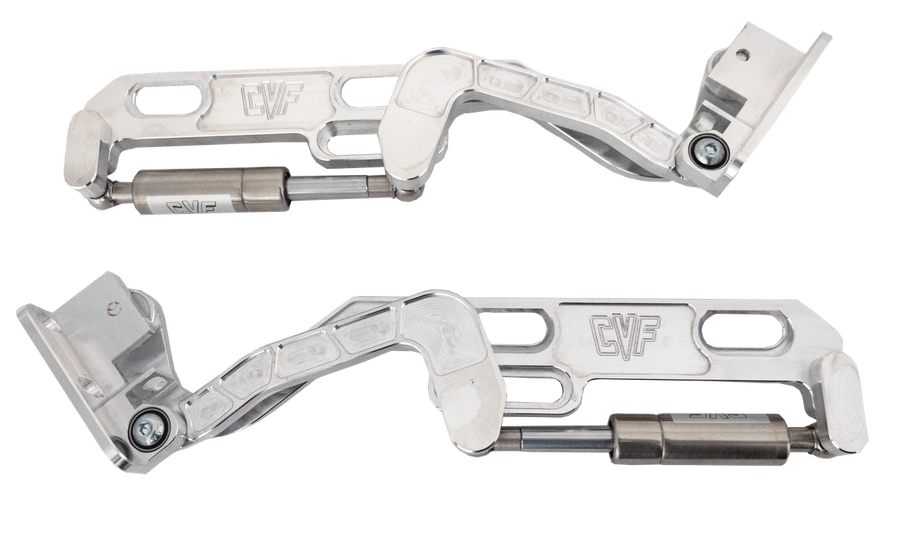

CVF Racing billet hood hinges replace the factory hood hinges on 1981 to 1987 Chevrolet C/K 10, 20 and 30 trucks. Each hinge body and arm is CNC machined from 6061-T6 billet aluminum, and a gas strut and sealed bearings are built into the assembly. CVF's patented 6-axis adjustment (U.S. Patent No. 11,002,047) is part of the hinge itself, so hood gaps can be set while the hood stays bolted in place.
This design tucks standard size gas struts inside the hinge assembly instead of relying on large springs, and the cam button adjustment can move hood height by nearly an inch up or down. The hinges bolt to the factory locations under the cowl, keep the hood opening at the OEM angle, and need no drilling, templates or fender modification. This listing is offered in a polished aluminum finish or a C3 Ceramic Clear Coat finish, selected as an option. The hinges are sold as a pair and offered in Steel Hood and Fiberglass Hood versions, and CVF backs them with a limited lifetime warranty.
Specifications:
- Type: Adjustable billet hood hinges, sold as a pair
- Material: 6061-T6 billet aluminum bodies and arms, CNC machined
- Adjustment: 6-axis, built into the hinge (U.S. Patent No. 11,002,047)
- Hood height adjustment: nearly 1 in. up or down (cam button design)
- Hood support: Gas struts
- Pivots: Sealed bearings
- Finish: Polished aluminum or C3 Ceramic Clear Coat (selectable)
- Hood type options: Steel Hood or Fiberglass Hood
- Opening angle: OEM
- Mounting: Factory locations under the cowl
- Warranty: CVF limited lifetime warranty
- Part number: HOOD-HINGE-KIT-87C10-SS
Application Notes:
- No drilling or fender modification is required.
- Select the Steel Hood or Fiberglass Hood option to match the hood on the vehicle.
Vehicle Applications:
- 1981 Chevrolet C10
- 1981 Chevrolet C20
- 1981 Chevrolet C30
- 1981 Chevrolet K10
- 1981 Chevrolet K20
- 1981 Chevrolet K30
- 1982 Chevrolet C10
- 1982 Chevrolet C20
- 1982 Chevrolet C30
- 1982 Chevrolet K10
- 1982 Chevrolet K20
- 1982 Chevrolet K30
- 1983 Chevrolet C10
- 1983 Chevrolet C20
- 1983 Chevrolet C30
- 1983 Chevrolet K10
- 1983 Chevrolet K20
- 1983 Chevrolet K30
- 1984 Chevrolet C10
- 1984 Chevrolet C20
- 1984 Chevrolet C30
- 1984 Chevrolet K10
- 1984 Chevrolet K20
- 1984 Chevrolet K30
- 1985 Chevrolet C10
- 1985 Chevrolet C20
- 1985 Chevrolet C30
- 1985 Chevrolet K10
- 1985 Chevrolet K20
- 1985 Chevrolet K30
- 1986 Chevrolet C10
- 1986 Chevrolet C20
- 1986 Chevrolet C30
- 1986 Chevrolet K10
- 1986 Chevrolet K20
- 1986 Chevrolet K30
- 1987 Chevrolet C10
- 1987 Chevrolet C20
- 1987 Chevrolet C30
- 1987 Chevrolet K10
- 1987 Chevrolet K20
- 1987 Chevrolet K30
Additional Application Note: CVF notes that these hinges will also work on 1981 to 1991 Chevrolet Suburbans.
FAQ
What vehicles does CVF Racing HOOD-HINGE-KIT-87C10-SS fit?
CVF lists HOOD-HINGE-KIT-87C10-SS for 1981 to 1987 Chevrolet C/K 10, 20 and 30 trucks. The vehicle applications section lists each model year individually.
Do I need to choose a steel or fiberglass hood version of HOOD-HINGE-KIT-87C10-SS?
Yes. The hinges are offered in a Steel Hood version and a Fiberglass Hood version, so choose the one that matches the hood installed on the vehicle.
Are there any installation requirements for the HOOD-HINGE-KIT-87C10-SS hood hinges?
No drilling or fender modification is required.
How do the CVF Racing HOOD-HINGE-KIT-87C10-SS hood hinges adjust?
The 6-axis adjustment is built into each hinge (U.S. Patent No. 11,002,047), which allows hood gaps to be set without removing the hood. The cam button design also allows hood height to be changed by nearly an inch up or down.
What finishes are available for the HOOD-HINGE-KIT-87C10-SS hood hinges?
HOOD-HINGE-KIT-87C10-SS is offered in polished aluminum or C3 Ceramic Clear Coat, chosen as an option on this listing. CVF also makes this hinge in Stealth Black and Black Diamond, sold as separate listings.
