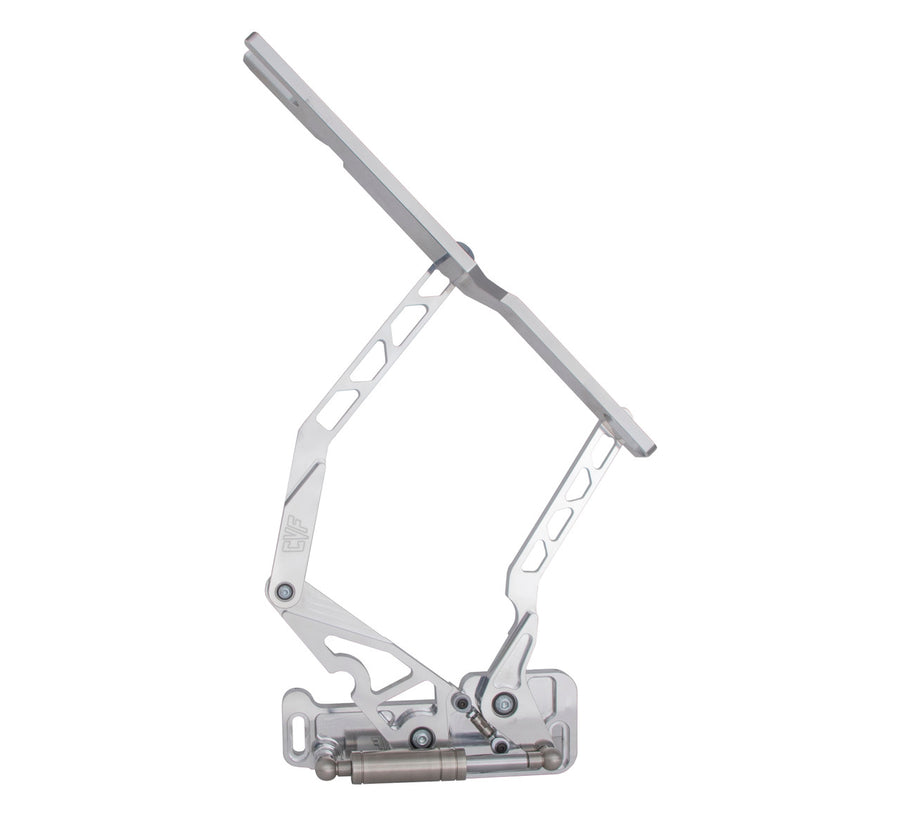

CVF Racing billet hood hinges replace the factory hood hinges on the 1970 to 1981 Pontiac Firebird and Trans Am. Each hinge body and arm is CNC machined from 6061-T6 billet aluminum, and a gas strut and sealed bearings are built into the assembly. CVF's patented 6-axis adjustment (U.S. Patent No. 11,002,047) is part of the hinge itself, so hood gaps can be set while the hood stays bolted in place.
This listing is offered in a polished aluminum finish or a C3 Ceramic Clear Coat finish, selected as an option. The hinges are sold as a pair and offered in Steel Hood and Fiberglass Hood versions, and CVF backs them with a limited lifetime warranty.
Specifications:
- Type: Adjustable billet hood hinges, sold as a pair
- Material: 6061-T6 billet aluminum bodies and arms, CNC machined
- Adjustment: 6-axis, built into the hinge (U.S. Patent No. 11,002,047)
- Hood support: Gas struts
- Pivots: Sealed bearings
- Finish: Polished aluminum or C3 Ceramic Clear Coat (selectable)
- Hood type options: Steel Hood or Fiberglass Hood
- Models listed by CVF: Firebird and Trans Am
- Warranty: CVF limited lifetime warranty
- Part number: HOOD-HINGE-KIT-81P-SS
Application Notes:
- Select the Steel Hood or Fiberglass Hood option to match the hood on the vehicle.
Vehicle Applications:
- 1970 Pontiac Firebird
- 1970 Pontiac Firebird Trans Am
- 1971 Pontiac Firebird
- 1971 Pontiac Firebird Trans Am
- 1972 Pontiac Firebird
- 1972 Pontiac Firebird Trans Am
- 1973 Pontiac Firebird
- 1973 Pontiac Firebird Trans Am
- 1974 Pontiac Firebird
- 1974 Pontiac Firebird Trans Am
- 1975 Pontiac Firebird
- 1975 Pontiac Firebird Trans Am
- 1976 Pontiac Firebird
- 1976 Pontiac Firebird Trans Am
- 1977 Pontiac Firebird
- 1977 Pontiac Firebird Trans Am
- 1978 Pontiac Firebird
- 1978 Pontiac Firebird Trans Am
- 1979 Pontiac Firebird
- 1979 Pontiac Firebird Trans Am
- 1980 Pontiac Firebird
- 1980 Pontiac Firebird Trans Am
- 1981 Pontiac Firebird
- 1981 Pontiac Firebird Trans Am
FAQ
What vehicles does CVF Racing HOOD-HINGE-KIT-81P-SS fit?
CVF lists HOOD-HINGE-KIT-81P-SS for 1970 to 1981 Pontiac Firebird and Trans Am. The vehicle applications section lists each model year individually.
Do I need to choose a steel or fiberglass hood version of HOOD-HINGE-KIT-81P-SS?
Yes. The hinges are offered in a Steel Hood version and a Fiberglass Hood version, so choose the one that matches the hood installed on the vehicle.
How do the CVF Racing HOOD-HINGE-KIT-81P-SS hood hinges adjust?
The 6-axis adjustment is built into each hinge (U.S. Patent No. 11,002,047), which allows hood gaps to be set without removing the hood.
What finishes are available for the HOOD-HINGE-KIT-81P-SS hood hinges?
HOOD-HINGE-KIT-81P-SS is offered in polished aluminum or C3 Ceramic Clear Coat, chosen as an option on this listing. CVF also makes this hinge in Stealth Black and Black Diamond, sold as separate listings.
