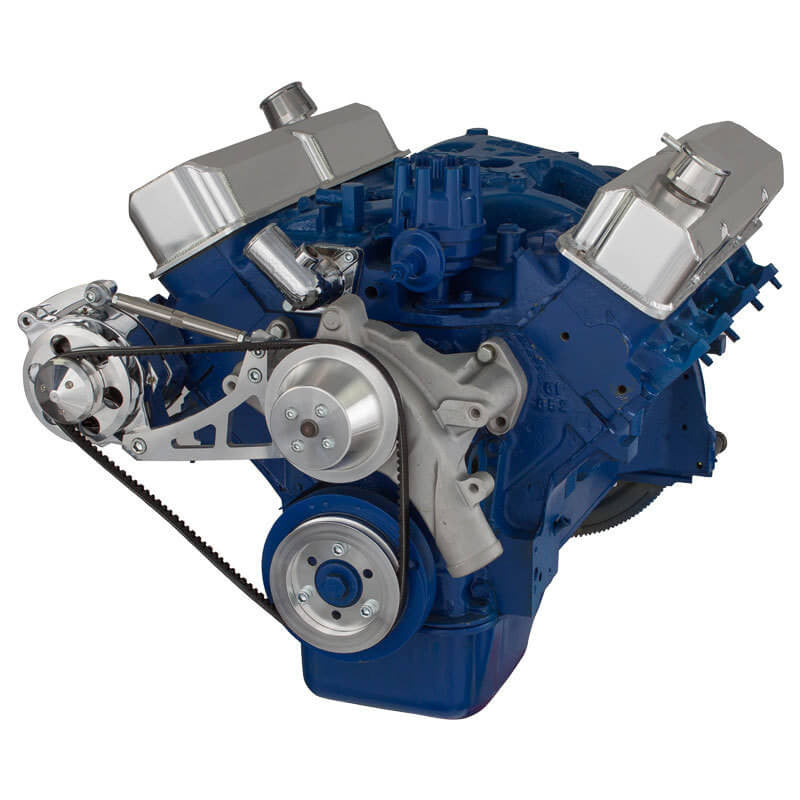

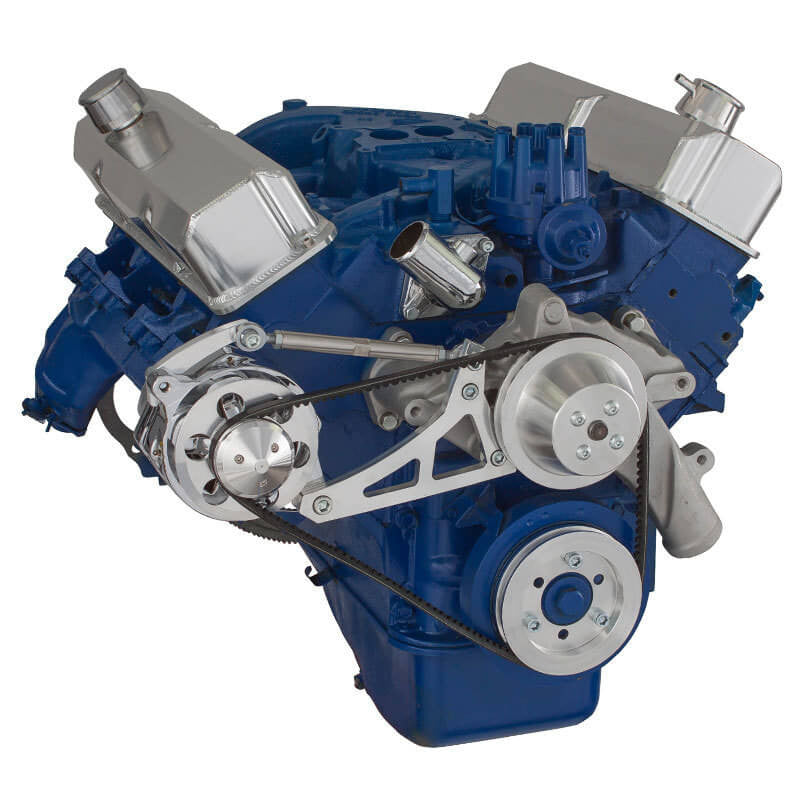

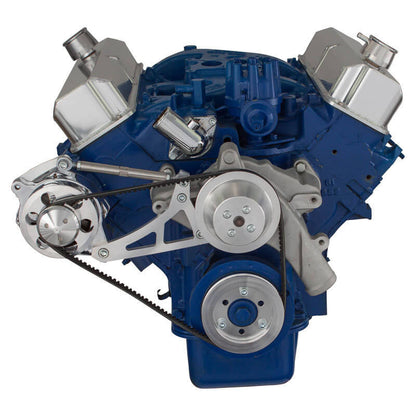

This CVF Racing system covers the alternator-only V-belt drive on a Ford FE engine (390, 427 or 428), with the alternator placed mid-height on the passenger side. It comes in a polished finish.
The system is offered with an underdrive or high flow pulley ratio. Fitting it means removing or relocating the factory engine-mounted expansion tank.
Specifications:
- Finish: Polished
- Belt type: V-belt
- Accessories driven: Alternator only
- Alternator position: Mid, passenger side
- Pulley ratio: Underdrive or high flow (variant)
- Water pump rotation: Standard (mechanical pump)
- Engine: Ford FE 390, 427 and 428
- Part number: 390-ALT-SYSTEM
Kit Includes:
- BBFE1KIT pulley kit: 1-groove water pump pulley, 1-groove crank pulley and 1-groove alternator pulley
- 390-ALTBRKT FE alternator bracket
- ALTFAN universal alternator fan
Not Included: The alternator is not included.
Application Notes:

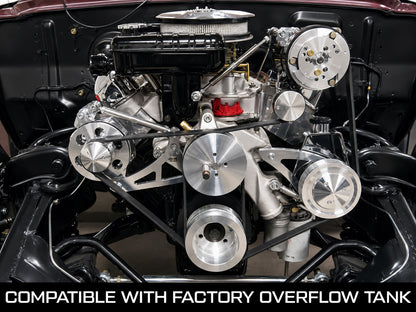

- The OEM engine-mounted expansion tank must be removed or relocated.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this system include?
It includes 1-groove water pump, crank and alternator pulleys, the FE alternator bracket and a universal alternator fan.
Is the alternator included?
No. The alternator must be purchased separately.
Are there installation requirements?
Yes. The factory engine-mounted expansion tank needs to be removed or relocated.
Which pulley ratios are offered?
The system is offered in an underdrive or a high flow pulley ratio.
