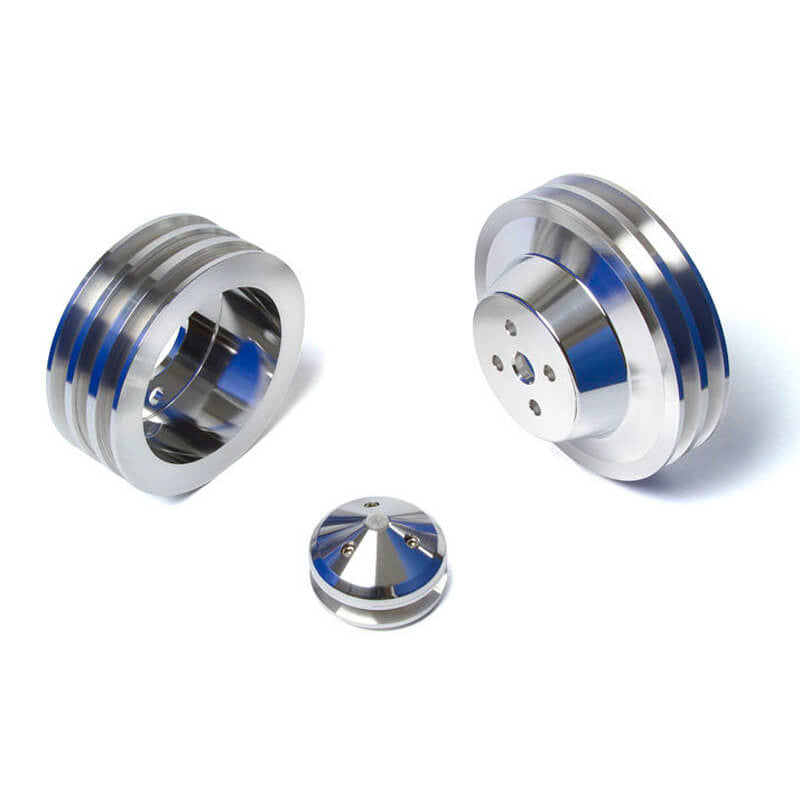

This polished billet aluminum CVF Racing pulley kit is laid out for an air conditioned Ford FE engine (390, 427 or 428) on V-belts. It includes a 3-groove crank pulley, a 2-groove water pump pulley and a 1-groove alternator pulley.
CVF recommends this kit with OEM pulleys and the Vintage Air A/C bracket, part number 131005. For CVF's own FE A/C bracket, CVF points buyers to kit BBFE33KIT-HF instead. Underdrive and high flow ratios are offered.
Specifications:
- Material: Billet aluminum
- Finish: Polished
- Belt type: V-belt
- Intended use: A/C applications
- Pulley ratio: Underdrive or high flow (variant)
- Water pump rotation: Standard
- Engine: Ford FE 390, 427 and 428
- Fits FE engines without a cast V-groove in the damper
- Requires a 3-bolt crankshaft pulley pattern
- Damper face to water pump flange face distance: 2 3/8 in.
- Part number: BBFE3KIT
Kit Includes:

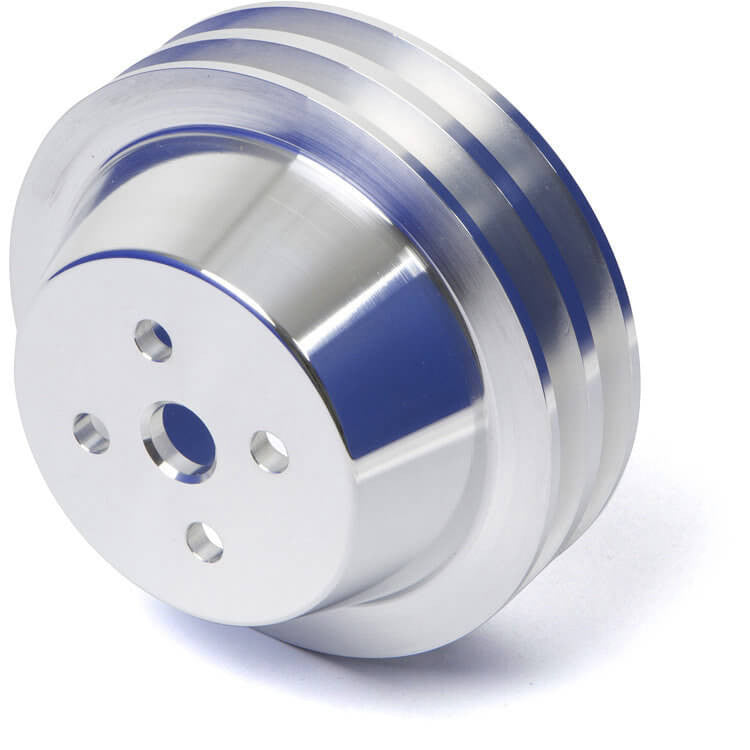

- 2-groove water pump pulley in the selected ratio (CVF lists BBFE2WP)

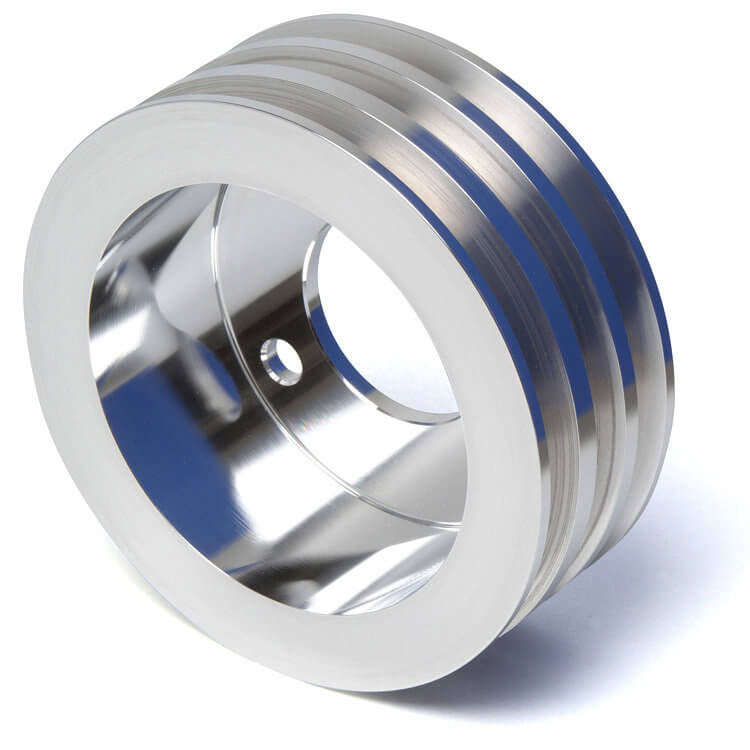

- 3-groove crankshaft pulley (BBFE3CR)
- 1-groove alternator pulley (SBF1ALT)
Application Notes:
- Recommended by CVF for use with OEM pulleys and the Vintage Air A/C bracket, part number 131005.
- When using the CVF Racing FE A/C bracket, CVF specifies kit BBFE33KIT-HF instead.
Additional Application Note: CVF lists its FE V-belt pulleys for 1958 to 1976 Ford passenger cars and trucks with FE engines but does not name specific models, so confirm the engine details below before ordering.
FAQ
What comes in this A/C pulley kit?
The kit includes a 2-groove water pump pulley, a 3-groove crankshaft pulley and a 1-groove alternator pulley.
Which A/C bracket is this kit meant for?
CVF recommends it with OEM pulleys and the Vintage Air A/C bracket, part number 131005.
Should I use this kit with the CVF Racing FE A/C bracket?
No. CVF specifies kit BBFE33KIT-HF, which uses a 3-groove water pump pulley, for use with its own A/C bracket.
What engines does it fit?
It fits Ford FE 390, 427 and 428 engines with a 3-bolt crank pulley, no cast V-groove in the damper, and 2 3/8 in. from damper face to water pump flange face.
