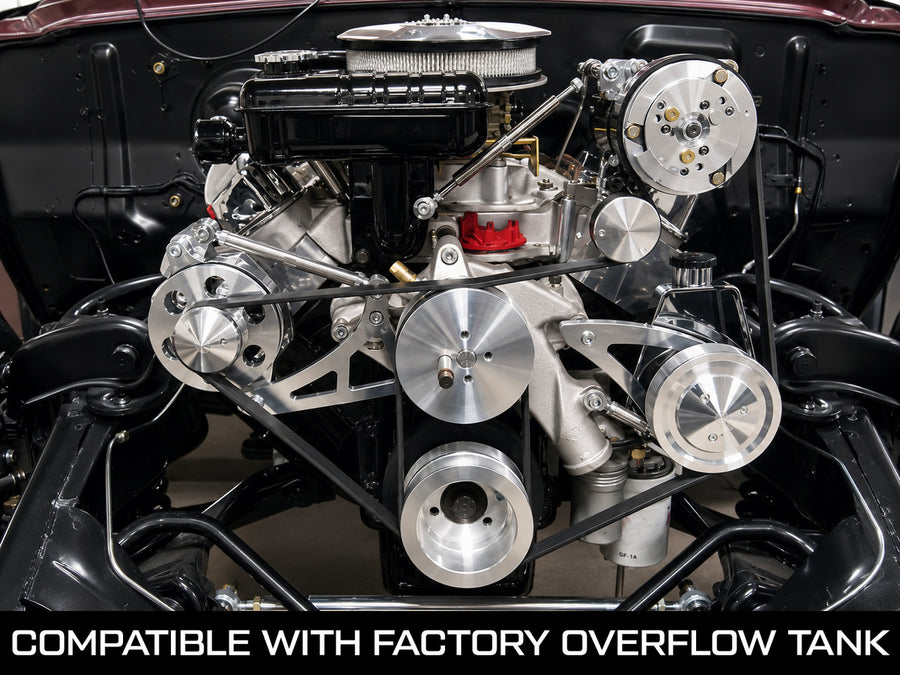

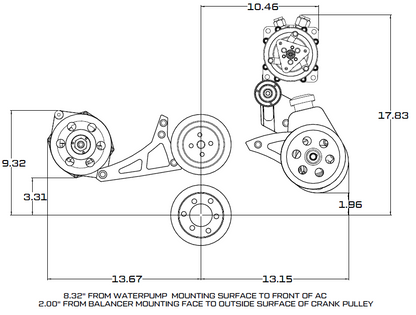

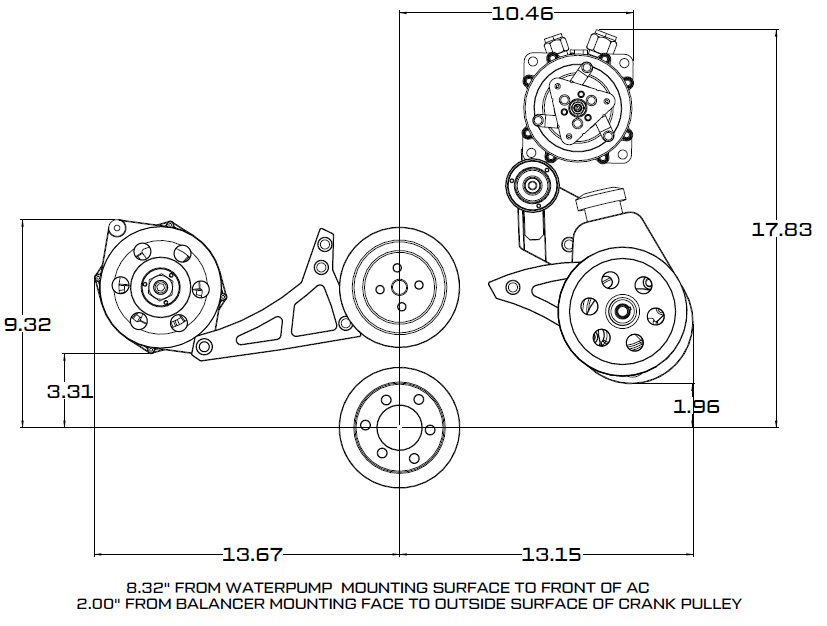

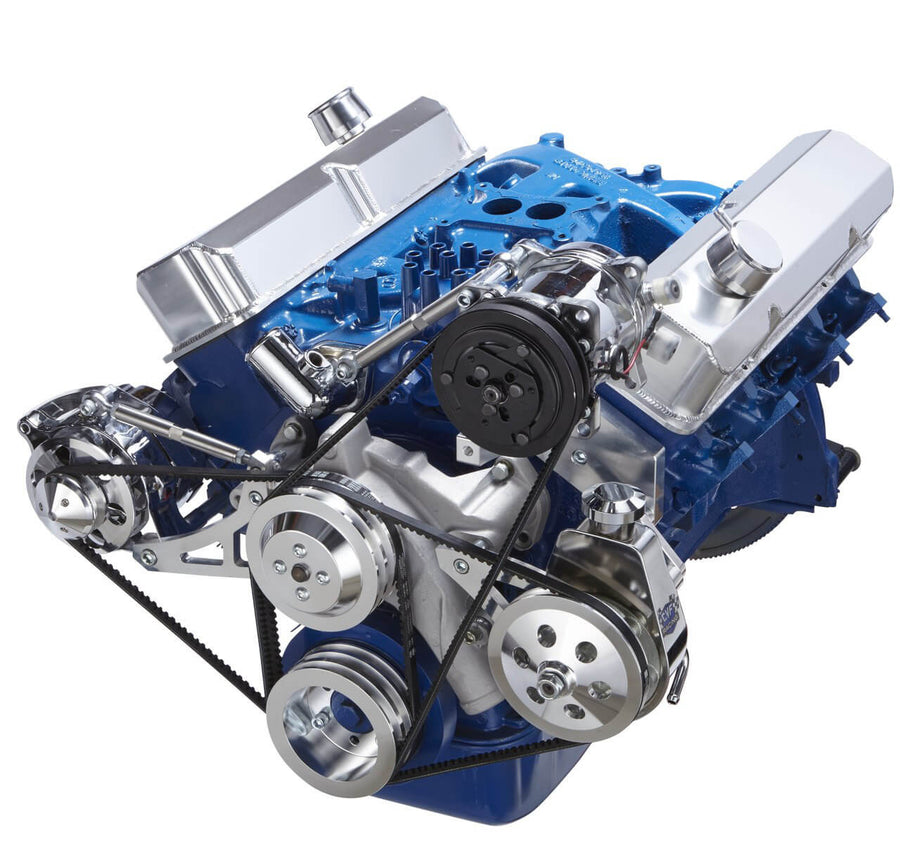

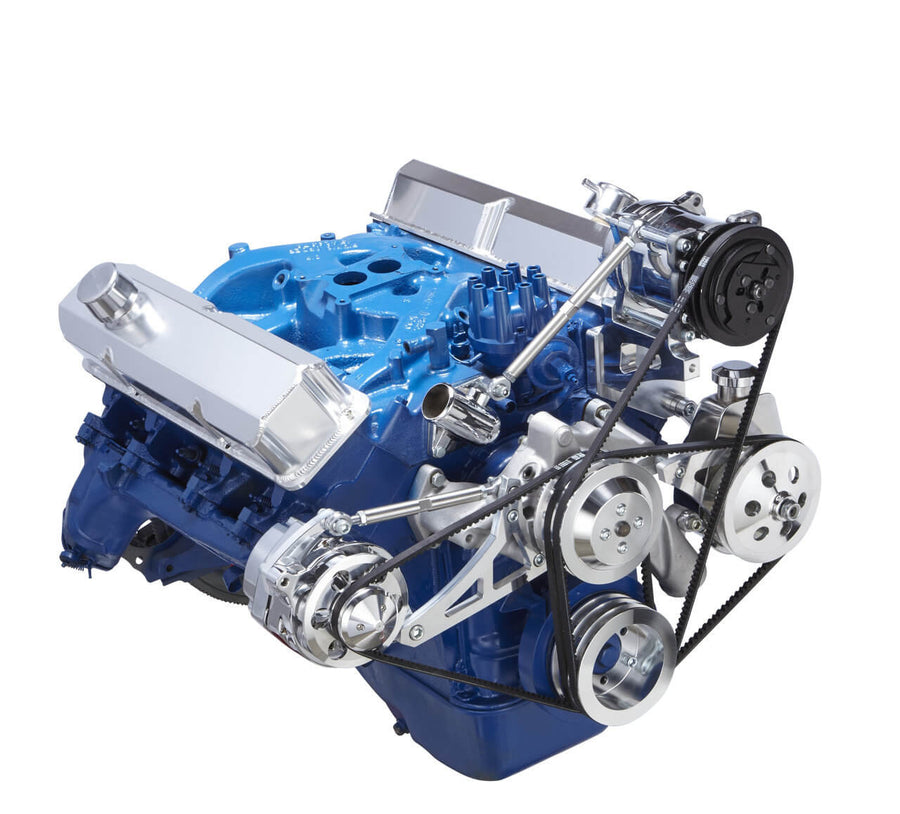

CVF Racing's polished V-belt system gives a Ford FE engine (390, 427 or 428) the brackets and pulleys to run an alternator, a Saginaw power steering pump and air conditioning. The alternator sits mid-height on the passenger side and the Sanden 508 compressor mounts high on the driver side.
A 3-groove high flow water pump pulley and 3-groove crank pulley drive the system. The power steering pulley is offered for either a 5/8 in. keyway shaft or a 3/4 in. press fit shaft.
Specifications:
- Finish: Polished
- Belt type: V-belt
- Accessories driven: Alternator, power steering and A/C
- Alternator position: Mid, passenger side
- A/C compressor position: High, driver side
- Compressor: Sanden 508
- Power steering pump: Saginaw
- Power steering pulley: 5/8 in. keyway or 3/4 in. press fit shaft (variant)
- Pulley ratio: High flow
- Water pump rotation: Standard (mechanical pump)
- Engine: Ford FE 390, 427 and 428
- Part number: 390-AC-SYSTEM-S
Kit Includes:
- BBFE33KIT-HF pulley kit: 3-groove high flow water pump pulley, 3-groove crank pulley and 1-groove alternator pulley
- 390-ALTBRKT FE alternator bracket
- 390-PSBRKT-S FE power steering bracket for a Saginaw pump
- 390-ACBRKT FE A/C compressor bracket
- Power steering pulley for the Saginaw shaft type selected
- ALTFAN universal alternator fan
Not Included: The Saginaw power steering pump, alternator and A/C compressor are not included.
Application Notes:
- CVF calls for a Saginaw pump with a mounting stud in the lower right corner of the back of the pump.
- Designed around a Sanden 508 compressor.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What does this system drive?
It runs an alternator, a Saginaw power steering pump and an A/C compressor on V-belts.
Which power steering pulley options are there?
The power steering pulley is offered for a 5/8 in. keyway shaft or a 3/4 in. press fit shaft, chosen as a variant.
What pump does it need?
It needs a Saginaw power steering pump with a mounting stud in the lower right corner on the back of the pump. The pump is not included.
Is the compressor included?
No. The system is designed for a Sanden 508 compressor, which is sold separately along with the alternator.
