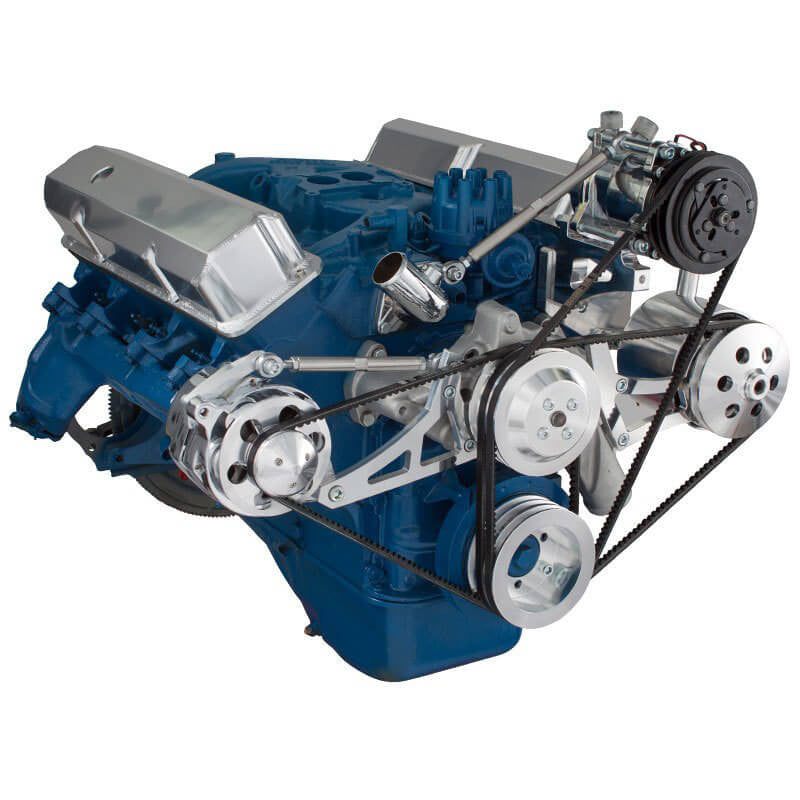

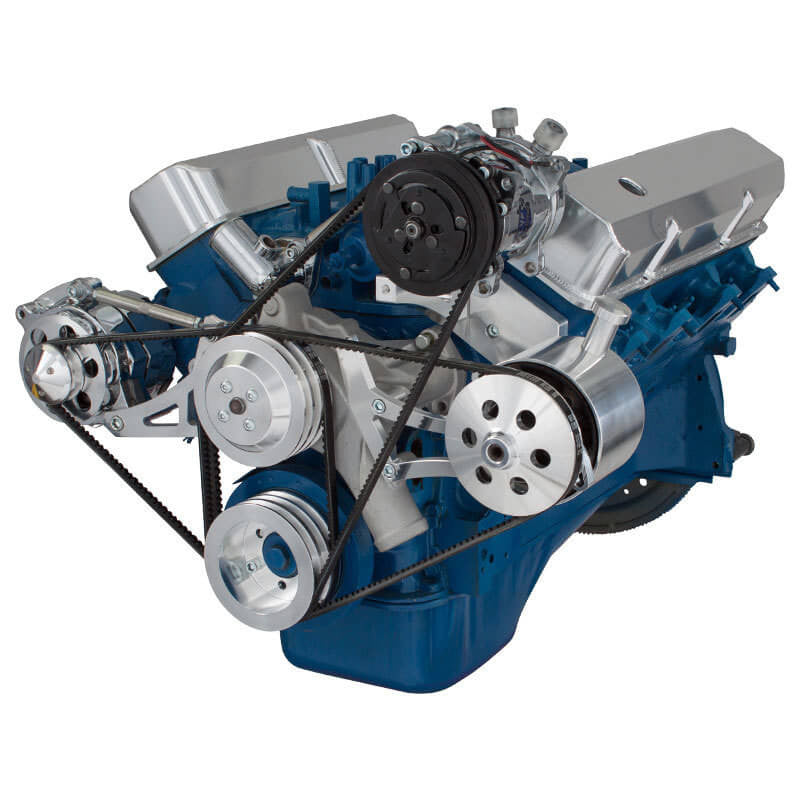

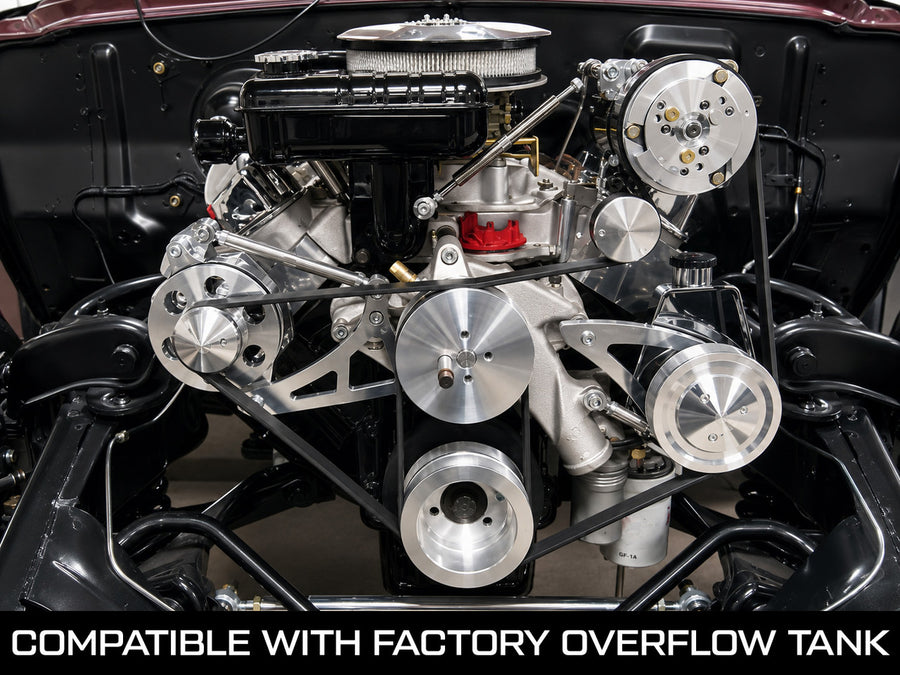

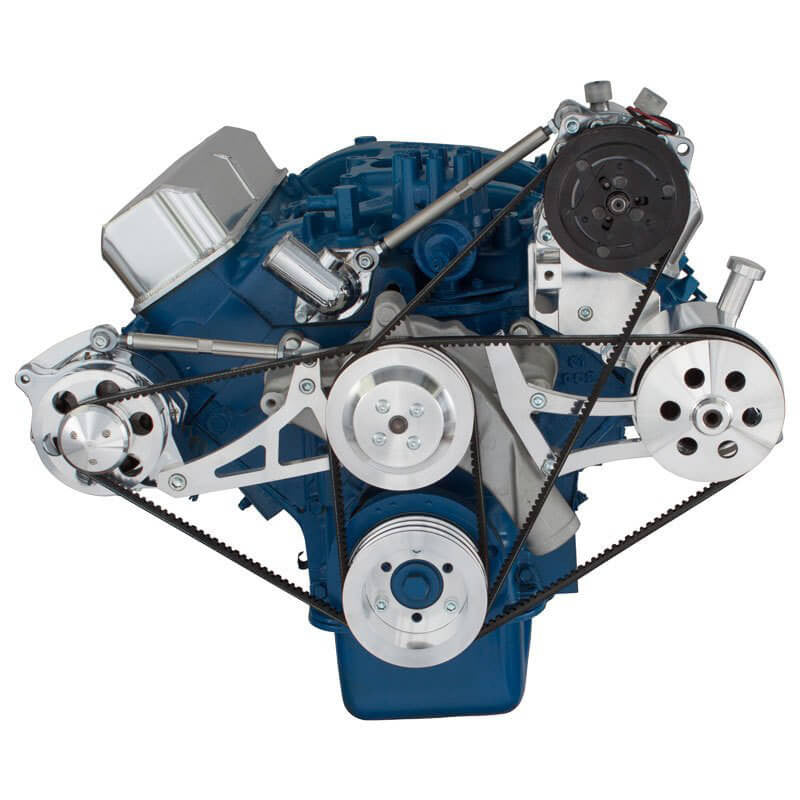

This CVF Racing system supplies the brackets and pulleys for a complete V-belt front drive on a Ford FE engine (390, 427 or 428), running an alternator, a Ford power steering pump and air conditioning. The parts are finished in polished.
It uses a 3-groove high flow water pump pulley and 3-groove crank pulley, places the alternator mid-height on the passenger side and sets the A/C compressor high on the driver side. It is built around a Sanden 508 compressor and a Ford power steering pump with a steel reservoir.
Specifications:
- Finish: Polished
- Belt type: V-belt
- Accessories driven: Alternator, power steering and A/C
- Alternator position: Mid, passenger side
- A/C compressor position: High, driver side
- Compressor: Sanden 508
- Power steering pump: Ford with steel reservoir
- Pulley ratio: High flow
- Water pump rotation: Standard (mechanical pump)
- Engine: Ford FE 390, 427 and 428
- Part number: 390-AC-SYSTEM-F-HF
Kit Includes:
- BBFE33KIT-HF pulley kit: 3-groove high flow water pump pulley, 3-groove crank pulley and 1-groove alternator pulley
- 390-ALTBRKT FE alternator bracket
- 390-PSBRKT-F FE power steering bracket for a Ford pump
- 390-ACBRKT FE A/C compressor bracket
- SBF1PS 11/16 in. press fit power steering pulley for Ford pumps
- ALTFAN universal alternator fan
Not Included: The Ford power steering pump, alternator and Sanden compressor are not included.
Application Notes:
- Requires a Ford power steering pump with a steel reservoir.
- Designed around a Sanden 508 compressor.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
What accessories does this system run?
It drives an alternator, a Ford power steering pump and an A/C compressor on V-belts.
What is included?
The system includes a 3-groove high flow water pump pulley, a 3-groove crank pulley, a 1-groove alternator pulley, alternator, power steering and A/C brackets, an 11/16 in. press fit power steering pulley and a universal alternator fan.
Are the pump, alternator and compressor included?
No. The Ford power steering pump, alternator and Sanden compressor must be supplied separately.
Which power steering pump and compressor does it need?
It needs a Ford power steering pump with a steel reservoir and is designed for a Sanden 508 compressor.
