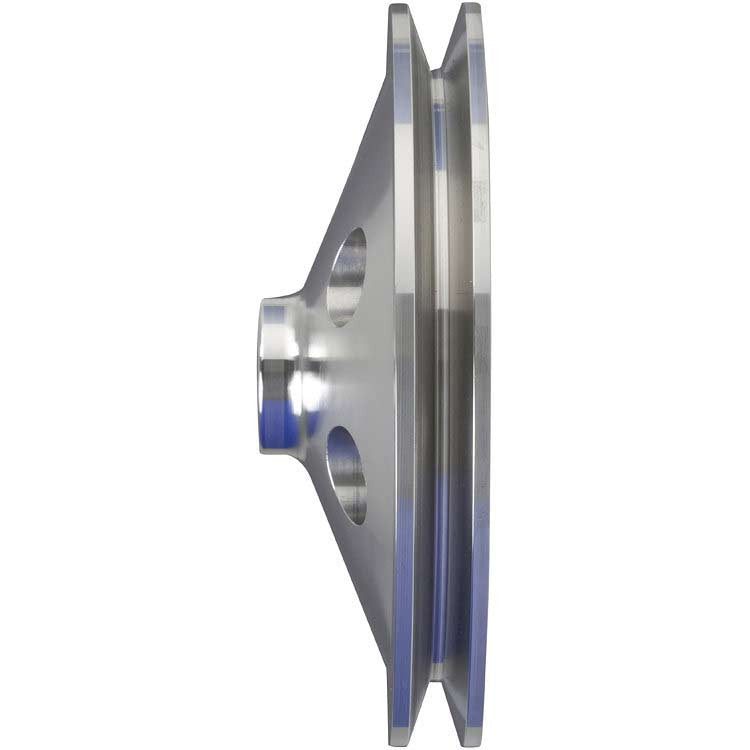

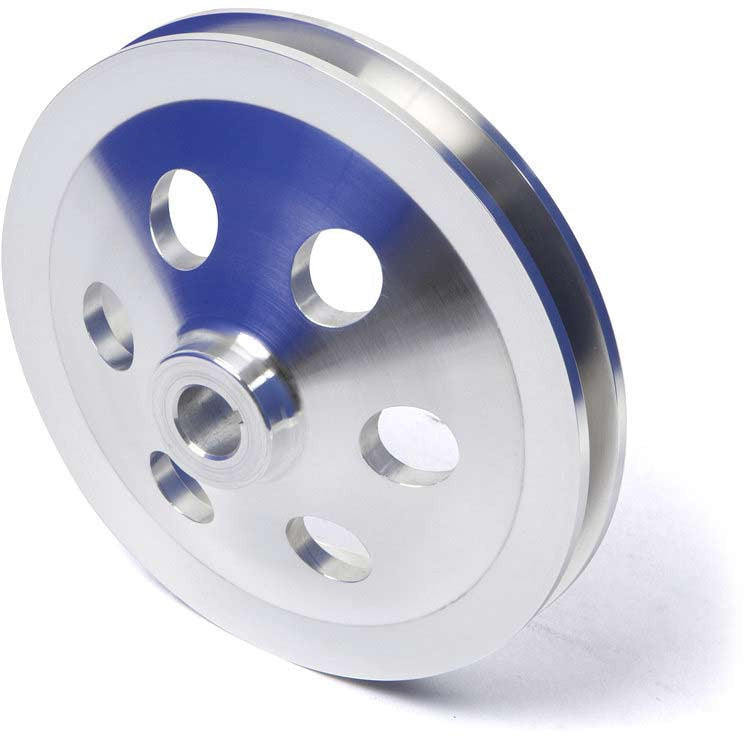

CVF Racing Billet Saginaw Power Steering Pulley, Deep Offset, Polished | 5/8" Keyway, V-Belt | 1.38" Offset | SBC3PS
Regular Price
$102.29
This polished deep offset pulley mounts on a Saginaw power steering pump with a 5/8 in. keyway shaft and drives a single V-belt.
CVF machines it in the USA from 6061-T6 billet aluminum.
Specifications:
- Material: 6061-T6 billet aluminum
- Belt type: V-belt
- Grooves: 1
- Diameter: 5.8 in.
- Overall length: 1.7 in.
- Offset: 1.38 in. (front of pulley to center of V-groove)
- Offset: 0.625 in. (mounting surface to center of V-groove)
- Shaft: 5/8 in. keyway
- Pump: Saginaw
- Finish: Polished
- Made in USA
- Part number: SBC3PS
Kit Includes:
- One power steering pulley
Application Notes:
- Requires a Saginaw pump with a 5/8 in. keyway shaft. Confirm belt alignment against the other accessory pulleys on the engine.
FAQ
Where is the SBC3PS made?
CVF lists it as made in the USA from 6061-T6 billet aluminum.
What are the pulley dimensions?
CVF lists a 5.8 in. diameter, 1.7 in. overall length and 1.38 in. offset measured from the front of the pulley to the center of the V-groove.
What belt does it use?
It is a single groove pulley for a V-belt.
What pump shaft does it fit?
It fits a 5/8 in. keyway shaft on a Saginaw power steering pump.
