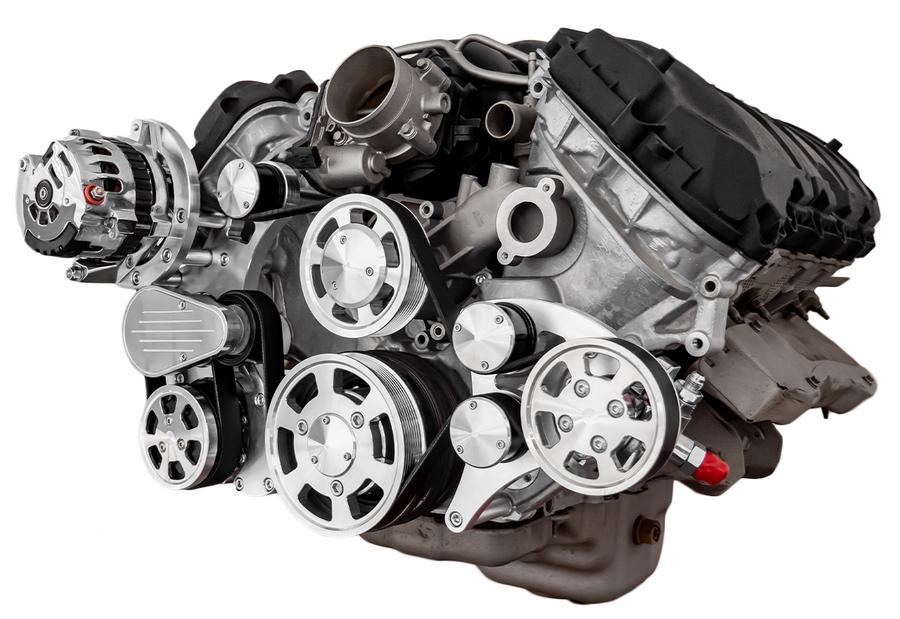

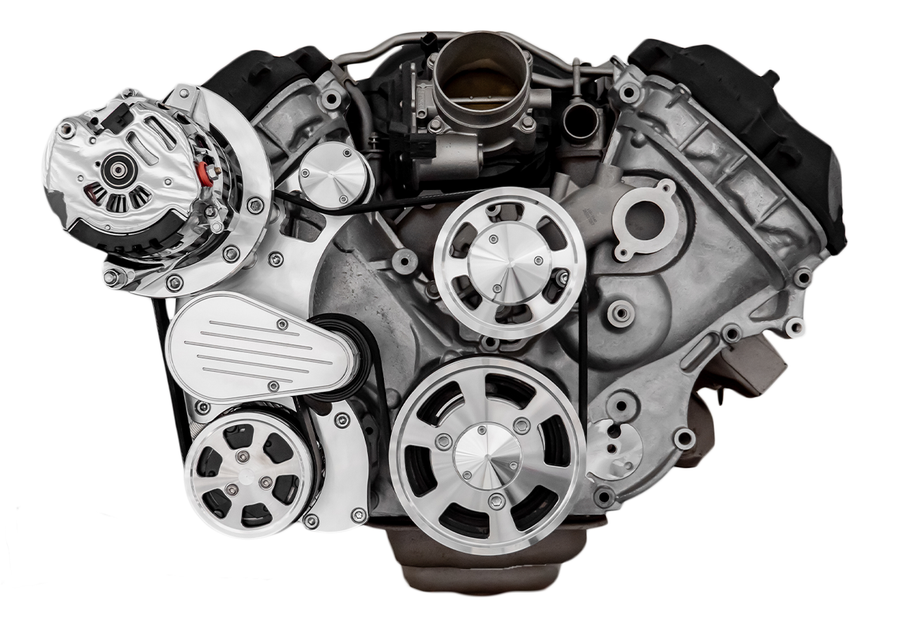

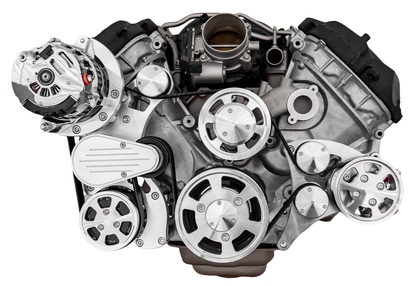

The CVF Racing Compact Wraptor in polished or C3 ceramic clear coat is an all inclusive 8 rib serpentine system for Ford Coyote 5.0 engines with a car timing cover. Every configuration includes a 160 amp 1-wire CS130 alternator, the two piece billet aluminum bracket, belt and pulleys, while A/C and power steering configurations add a chrome A/C compressor and a chrome plated GM Type II pump with remote reservoir.
A spring loaded tensioner maintains belt tension through hard acceleration and deceleration and accounts for belt stretch. The kit requires a 2017 or earlier style balancer and is not compatible with truck timing covers.
Specifications:
- Engine: Ford Coyote 5.0L
- Belt type: 8 rib serpentine
- Alternator: 1-wire CS130
- A/C compressor: Chrome peanut style (A/C configurations)
- Power steering pump: Chrome plated GM Type II (power steering configurations)
- Timing cover: Car only, Gen III or Gen IV
- Balancer: 2017 or earlier (2011 to 2017 Mustang, 2015 to 2017 F-150, or Dorman 594-723)
- Water pump: Not included; 3 or 4 bolt compatible
- Configurations: A/C, power steering and alternator; power steering and alternator; A/C and alternator; alternator only
- Finish options: Polished aluminum or C3 ceramic clear coat
- Finish: Polished or C3 Ceramic Clear Coat
- Part number: FC5NA-WRAPTOR
Included in Every Configuration:
- 160 amp chrome 1-wire CS130 alternator
- Premium 8 rib belt
- Water pump pulley and cover
- Crank pulley
- Crank pulley spacer
- Alternator pulley and cover
- Two piece billet aluminum bracket
Included by Configuration:
- Chrome A/C compressor (A/C configurations)
- A/C compressor clutch cover (A/C configurations)
- Chrome plated GM Type II power steering pump (power steering configurations)
- Remote mount reservoir with bracket (power steering configurations)
- Power steering pulley (power steering configurations)
- Universal alternator fan
Not Included: The water pump is not included.
Application Notes:
- Water pump is not included; compatible with 3 or 4 bolt pumps.
- Requires a 2017 or earlier balancer: 2011 to 2017 Mustang balancer, 2015 to 2017 F-150 balancer, or Dorman 594-723.
- Requires a car timing cover; will not work with a truck timing cover. Compatible with Gen III or Gen IV timing covers.
- Attached reservoir styles and power steering line kits are offered by CVF separately.
- Additional choices for this kit (bolts on oem water pump pilot, alternator and power steering) are selected separately when ordering.
FAQ
Does the Compact Wraptor work with a truck timing cover?
No. It requires a car timing cover, Gen III or Gen IV, and will not work with a truck cover.
Which balancers are compatible?
It requires a 2017 or earlier balancer, such as the 2011 to 2017 Mustang balancer, the 2015 to 2017 F-150 balancer, or Dorman 594-723.
Is the water pump included?
No. The water pump is not included, and the kit works with 3 or 4 bolt pumps.
What alternator comes in the kit?
Every configuration includes a 160 amp 1-wire CS130 alternator, with a higher output option selectable when ordering.
