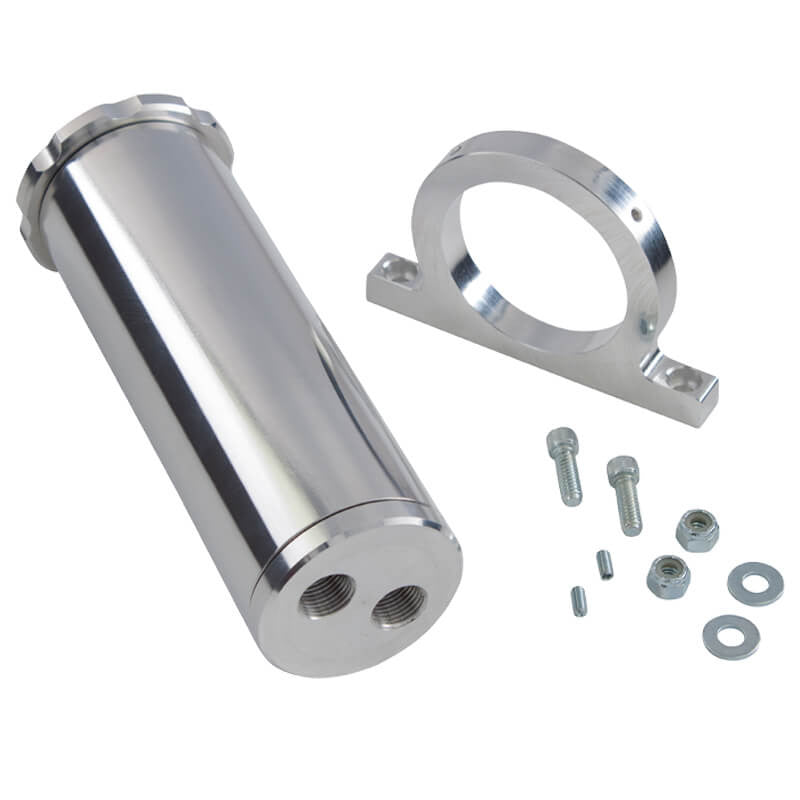

This remote power steering reservoir is machined from billet aluminum and finished in polished. It has a vented top cap, an internal baffle, and two female 3/8 in. NPT ports so it can be plumbed with the line style the builder prefers.
A solid billet universal mounting bracket is included for mounting the reservoir on a core support, firewall, shock tower or similar surface.
Specifications:
- Reservoir style: Remote
- Material: Billet aluminum
- Inlet: Female 3/8 in. NPT
- Outlet: Female 3/8 in. NPT
- Cap: Vented
- Internal baffle: Yes
- Length: 7.125 in.
- Diameter: 2.375 in.
- Finish: Polished
- Part number: REMOTE-PS-RES
Kit Includes:
- Billet remote power steering reservoir
- Billet universal mounting bracket
Not Included: No fittings are included. Adapters to 3/8 in. NPT are sold separately.
FAQ
What ports does the CVF REMOTE-PS-RES reservoir have?
It has a female 3/8 in. NPT inlet and a female 3/8 in. NPT outlet.
Are fittings included?
No. CVF ships it without fittings, so adapters for the chosen line style are needed.
Does it come with a bracket?
Yes. A billet universal mounting bracket is included for core support, firewall, shock tower or similar mounting.
How big is the reservoir?
It measures 7.125 in. long with a 2.375 in. diameter.
