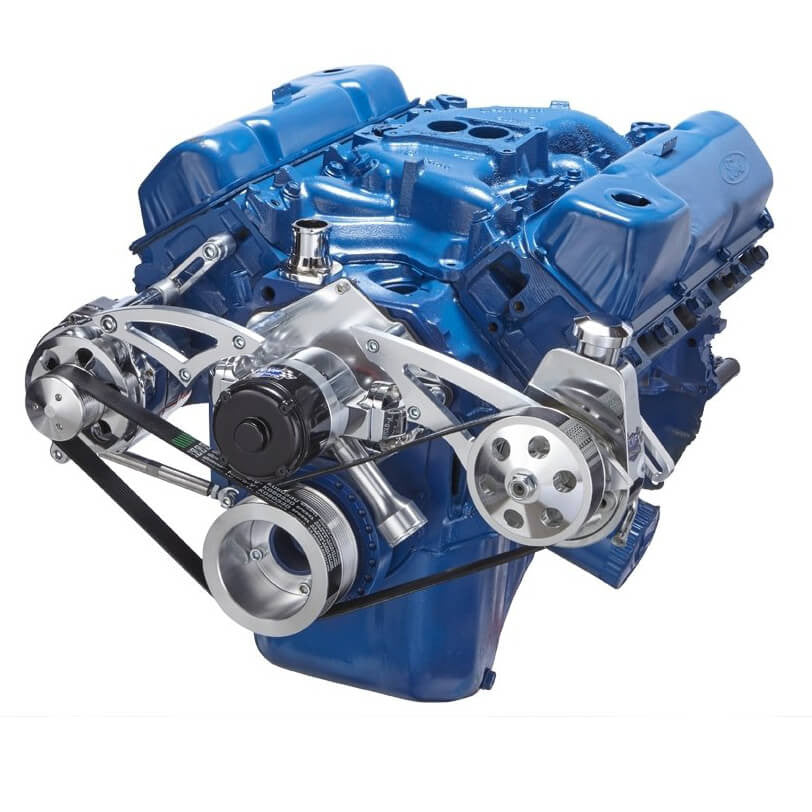

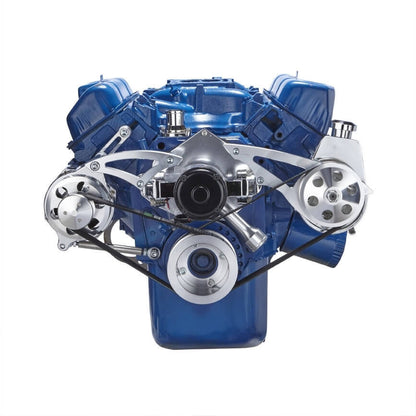

This polished CVF Racing BEAST kit is for Ford 351 Cleveland engines with an electric water pump that still run an alternator and a Saginaw P series power steering pump. An 8 rib serpentine belt drives both accessories from a 2 belt crank pulley.
The kit includes the crank, alternator and 5/8 inch keyway power steering pulleys, billet aluminum alternator and power steering brackets, and an alternator fan. CVF states it will not work on 351M, 400 or Clevor engines.
Specifications:
- Engine: Ford 351 Cleveland (351C)
- Belt type: 8 rib serpentine
- Water pump type: Electric
- Alternator position: Mid mount, passenger side
- Power steering: Saginaw P series, keyway shaft
- Power steering pulley: 5/8 inch keyway
- Belts: Premium 8 rib serpentine belt(s) can be added or left off when ordering
- Finish: Polished
- Part number: 351C-SERPENTINE-PS-EWP
Kit Includes:
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley, 5/8 inch keyway (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: Water pump and alternator are not included. The Saginaw power steering pump is also required and sold separately.
Application Notes:
- Requires a Saginaw P series power steering pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
- Will not work on 351M, 400 or Clevor engines per CVF's description.
- CVF's description lists this kit for the 351C only, while the order form also shows a 351M or 400 engine selection. Confirm 351M or 400 fitment with CVF before ordering for those engines.
- CVF offers a 35 GPM 351C electric water pump, power steering pump, alternator and billet thermostat housing as separate add-ons.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engine is this kit for?
CVF lists it for the Ford 351 Cleveland with an electric water pump, and states it will not work on 351M, 400 or Clevor engines.
What accessories does it drive?
It drives the alternator and a Saginaw P series power steering pump.
What power steering pump is required?
A Saginaw P series pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
What is not included?
The water pump, alternator and power steering pump are not included.
