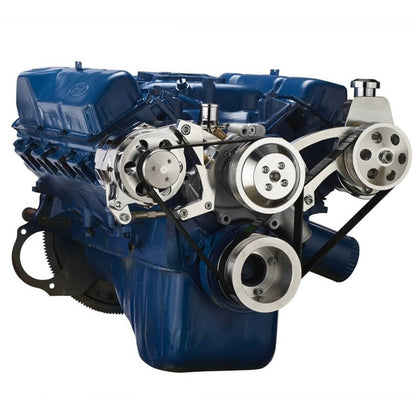

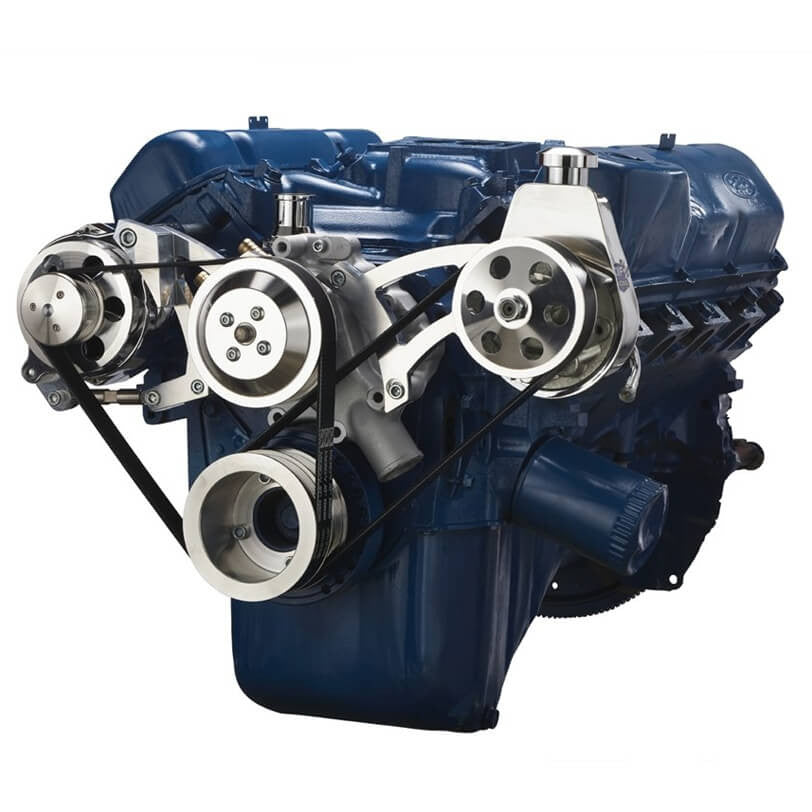

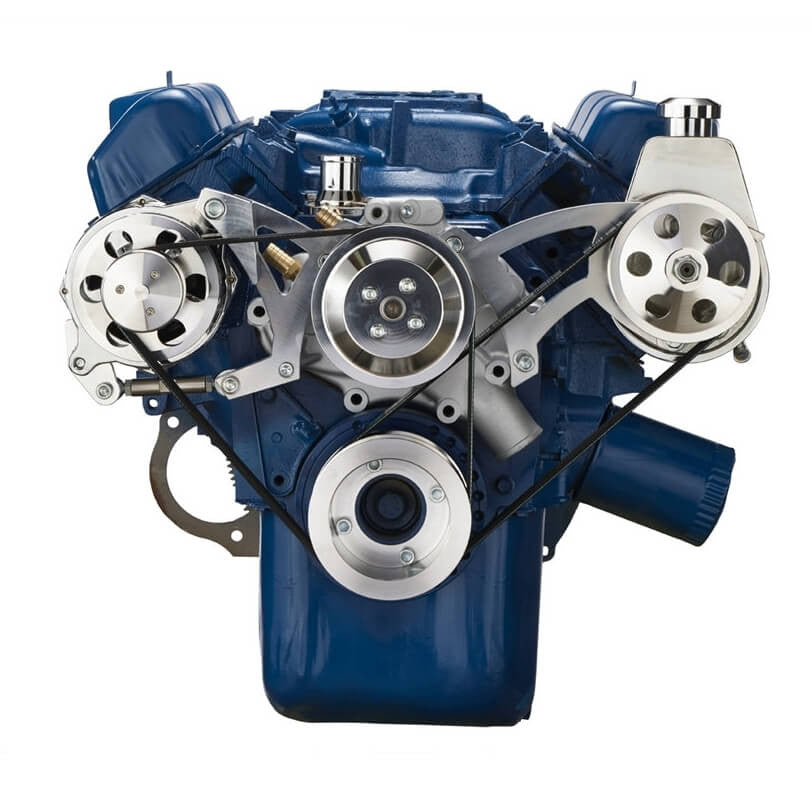

CVF Racing's polished BEAST kit converts a Ford 351 Cleveland, 351 Modified or 400 to an 8 rib serpentine drive for the alternator and a Saginaw P series power steering pump. The 8 rib pulleys are CVF's alternative to the common 6 rib layout, aimed at better grip and less belt stretch.
It works with an original or aftermarket clockwise rotation water pump and includes billet aluminum alternator and power steering brackets, the pulleys and an alternator fan. It does not fit Clevor engines.
Specifications:
- Engine: Ford 351C, 351M & 400
- Belt type: 8 rib serpentine
- Water pump: Original or aftermarket, clockwise (standard) rotation, 351C style
- Alternator position: Mid mount, passenger side
- Power steering: Saginaw P series
- Power steering pulley: 5/8 inch keyway or 3/4 inch press fit (selected when ordering)
- Belts: Premium 8 rib serpentine belt(s) can be added or left off when ordering
- Finish: Polished
- Part number: 351C-SERPENTINE-PS
Kit Includes:
- Water pump pulley (1 belt)
- Crank pulley (2 belt)
- Alternator pulley (1 belt)
- Power steering pulley (1 belt)
- Billet aluminum alternator bracket
- Billet aluminum power steering bracket
- ALTFAN universal alternator fan
Not Included: Water pump and alternator are not included. The Saginaw power steering pump is also required and sold separately.
Application Notes:
- Requires a Saginaw P series power steering pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
- Will not work on Clevor engines.
- CVF offers a water pump, power steering pump, alternator and billet thermostat housing as separate add-ons.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit www.P65Warnings.ca.gov.
FAQ
Which engines does this kit fit?
It fits the Ford 351 Cleveland, 351M and 400. It does not fit Clevor engines.
What water pump does it use?
It uses an original or aftermarket clockwise rotation water pump, which is not included.
What power steering pump is needed?
A Saginaw P series pump with a keyway shaft and a bolt hole in the lower right corner on the back of the pump.
Are belts included?
Premium 8 rib serpentine belts are an ordering choice and can be added or left off.
